Home >> Saturn >> 2002 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Powertrain Control Module (PCM) Power and Grounds Schematic

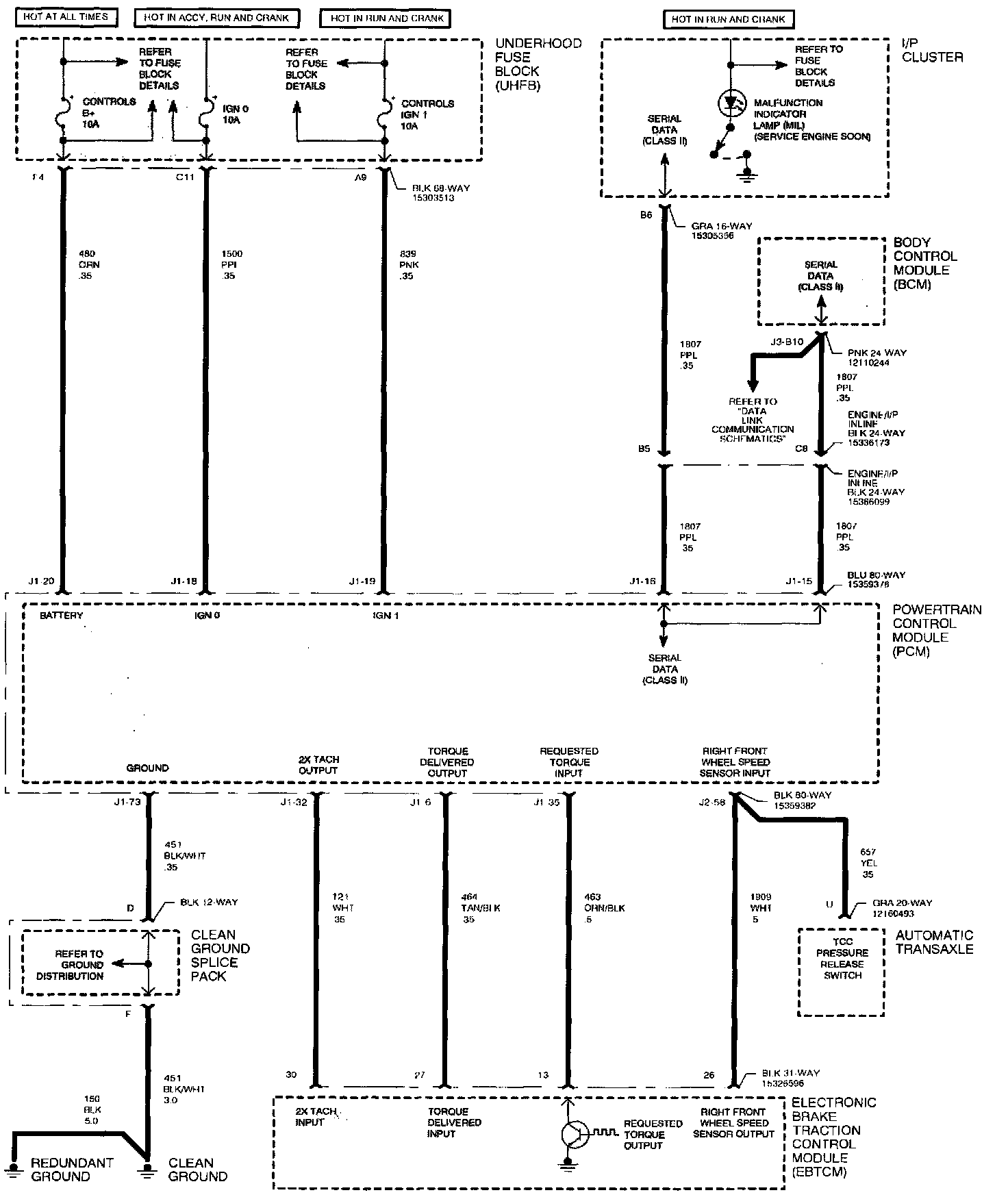

Powertrain Control Module (PCM) Power and Grounds Schematic
