Home >> Saturn >> 2002 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Connector Views >> Shifter

Shifter

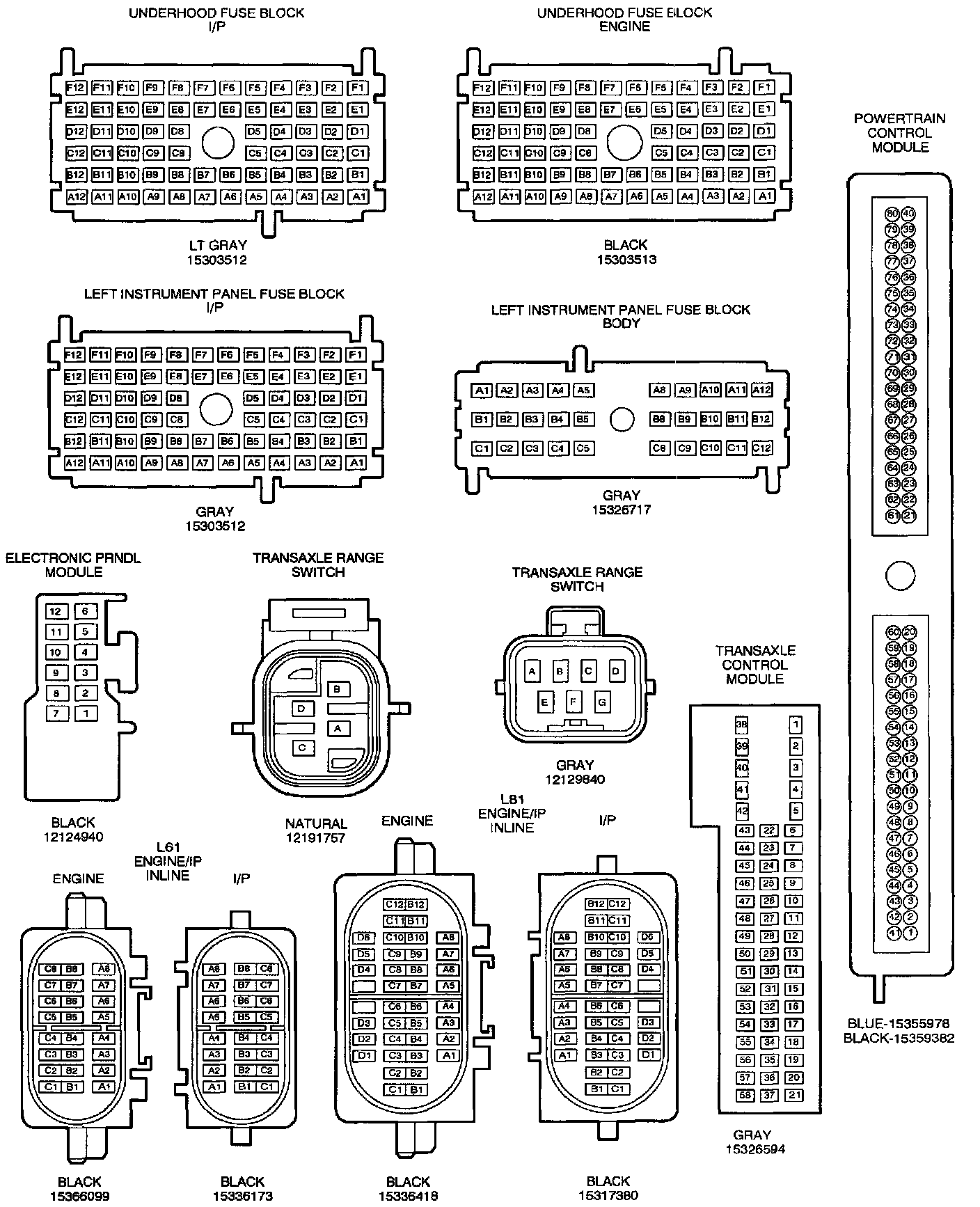

CONNECTOR FACE VIEWS





SHIFT CONTROL CONNECTOR FACE VIEWS





BTSI CONNECTOR FACE VIEWS
