Device Controls

Powertrain Control Module (PCM) Schematics Part 9:

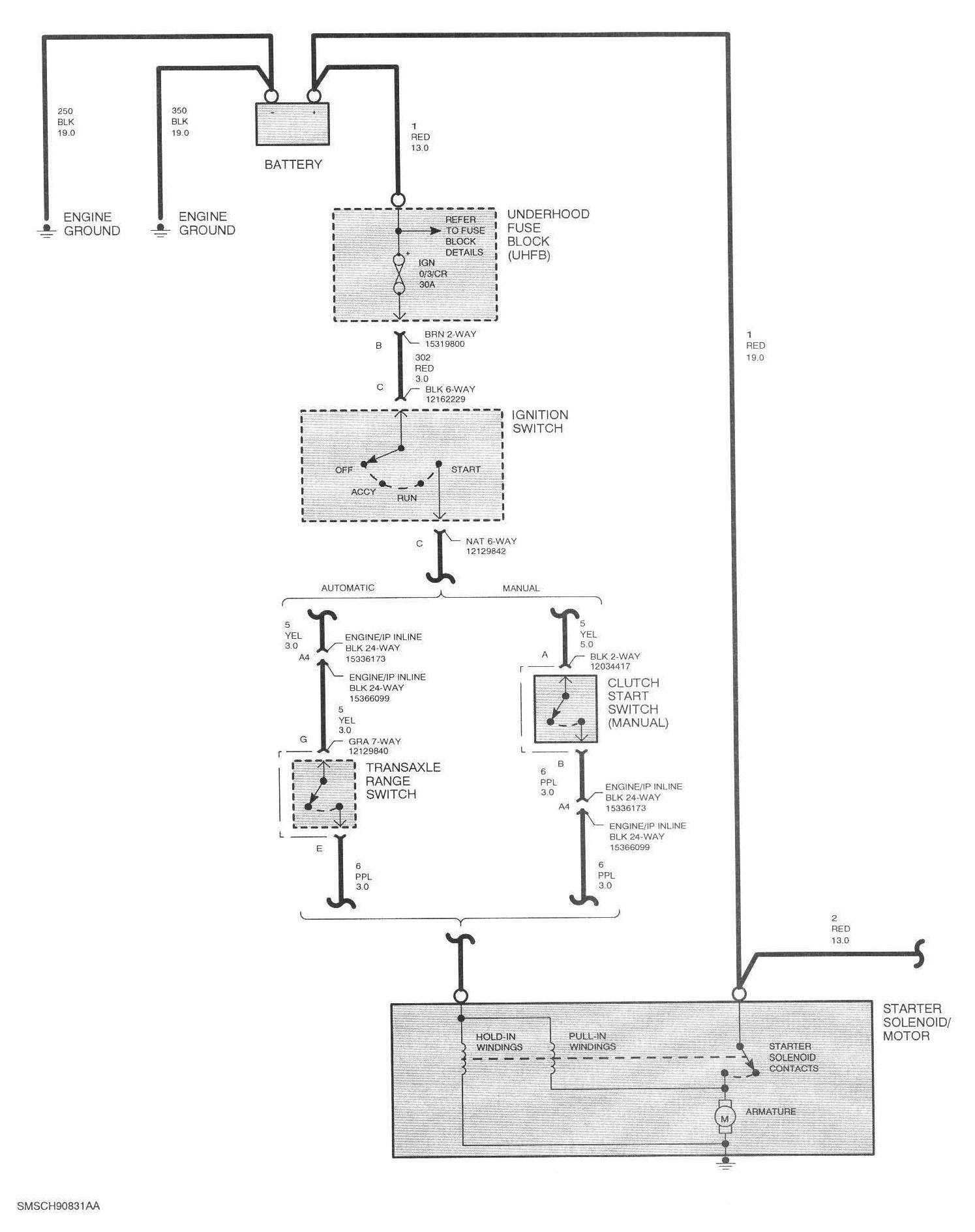

Starting And Charging Schematics Part 1:

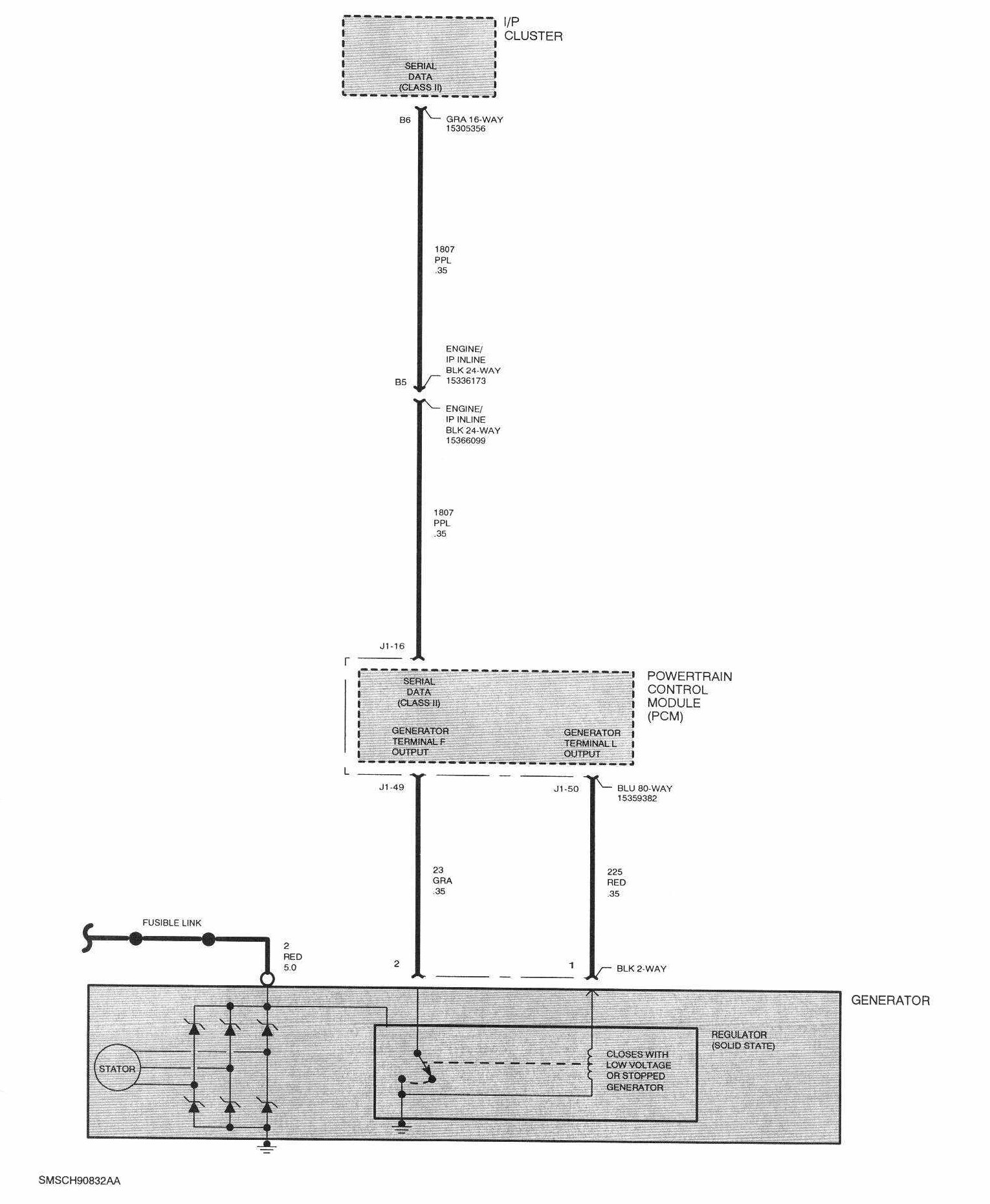

Starting And Charging Schematics Part 2:
