Power Window Motor

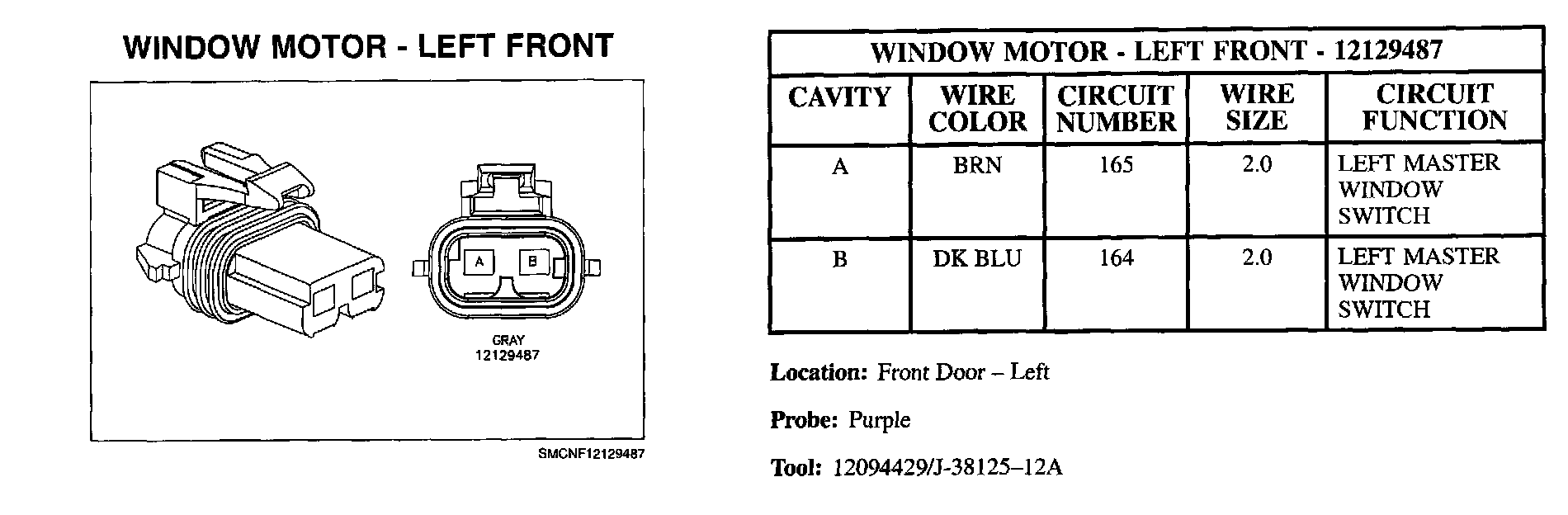

Window Motor - Left Front:

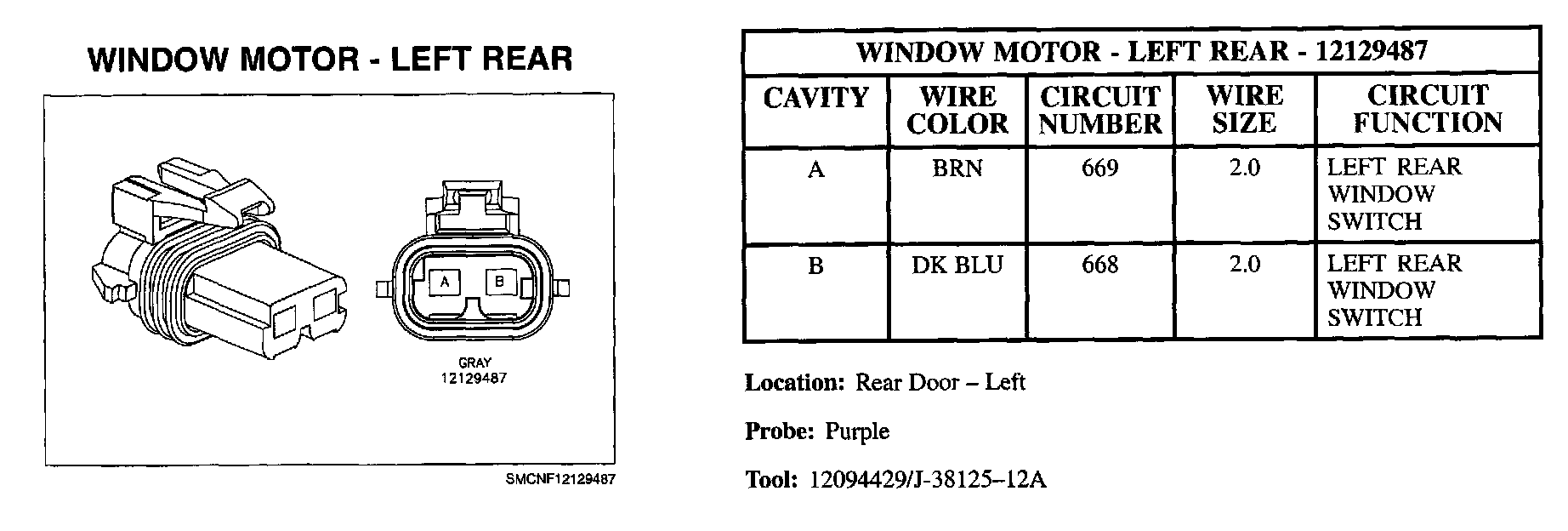

Window Motor - Left Rear:

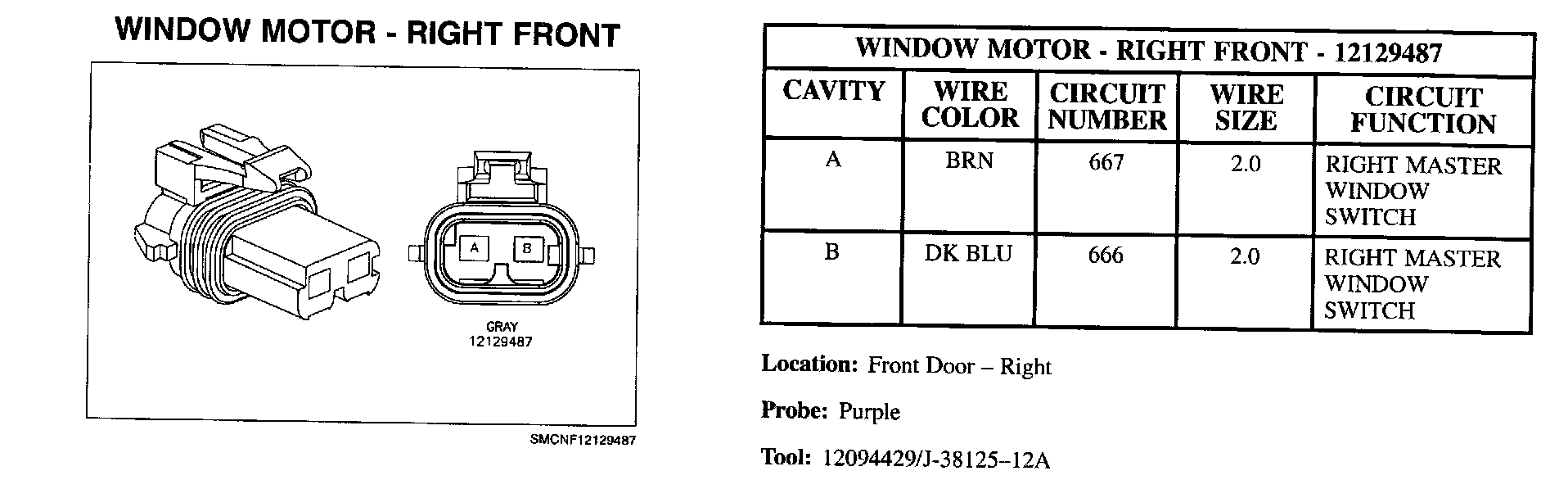

Window Motor - Right Front:

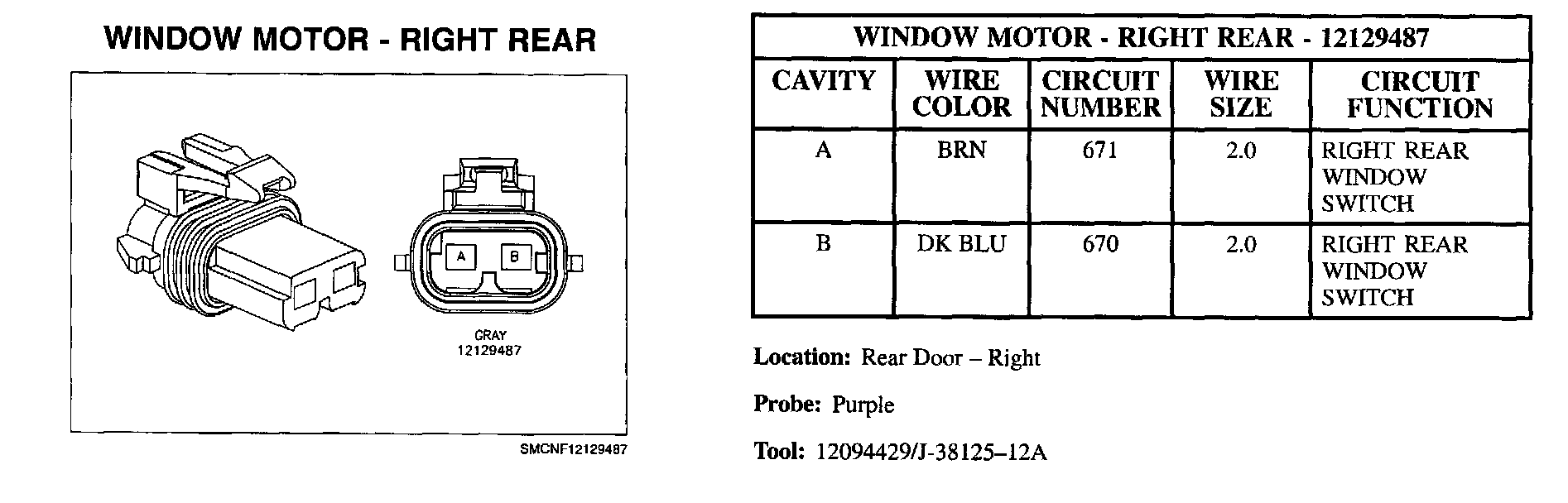

Window Motor - Right Rear:
