Home >> Saturn >> 2002 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Fuel Tank

Fuel Tank

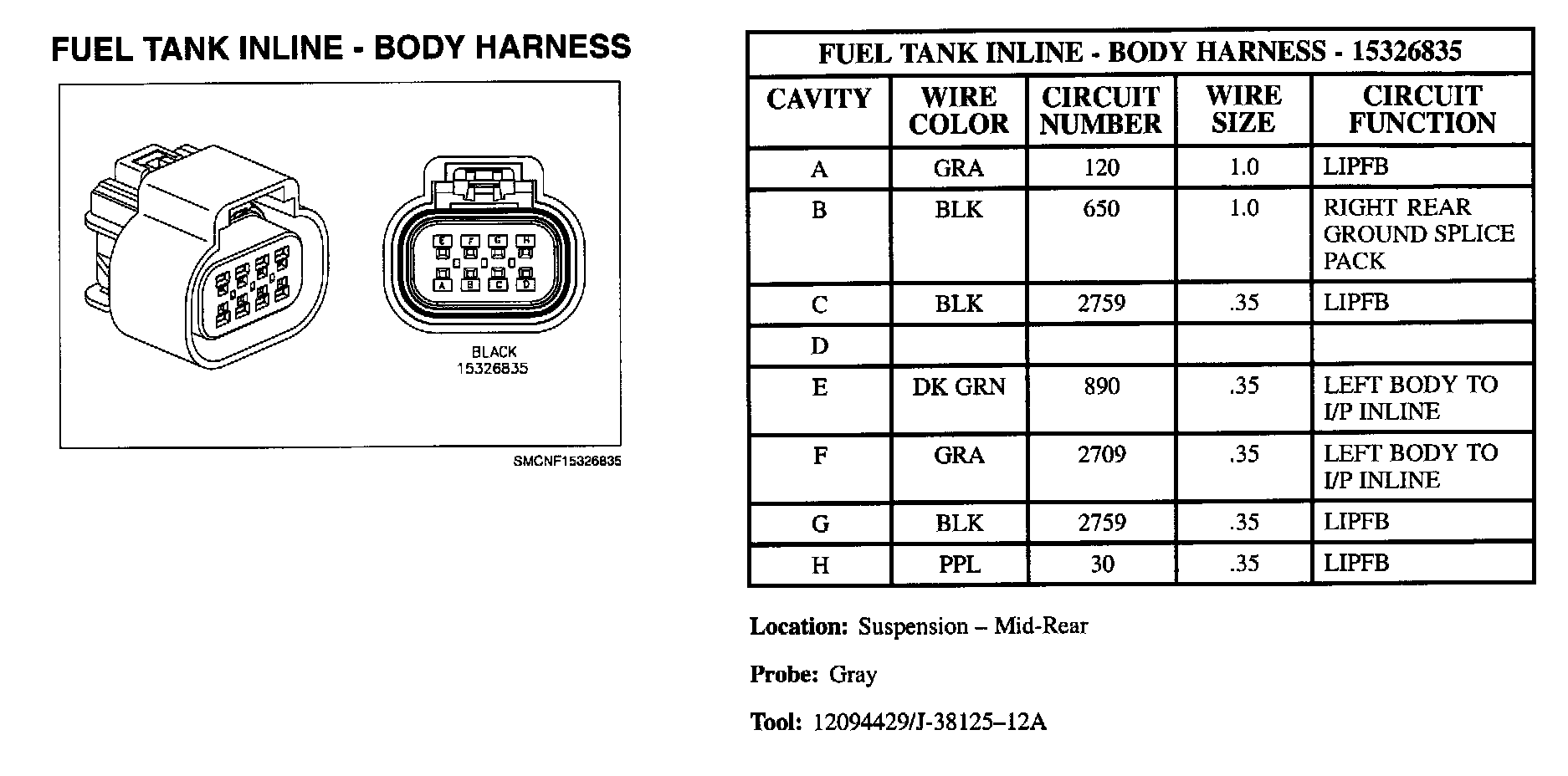

Fuel Tank Inline - Body Harness:

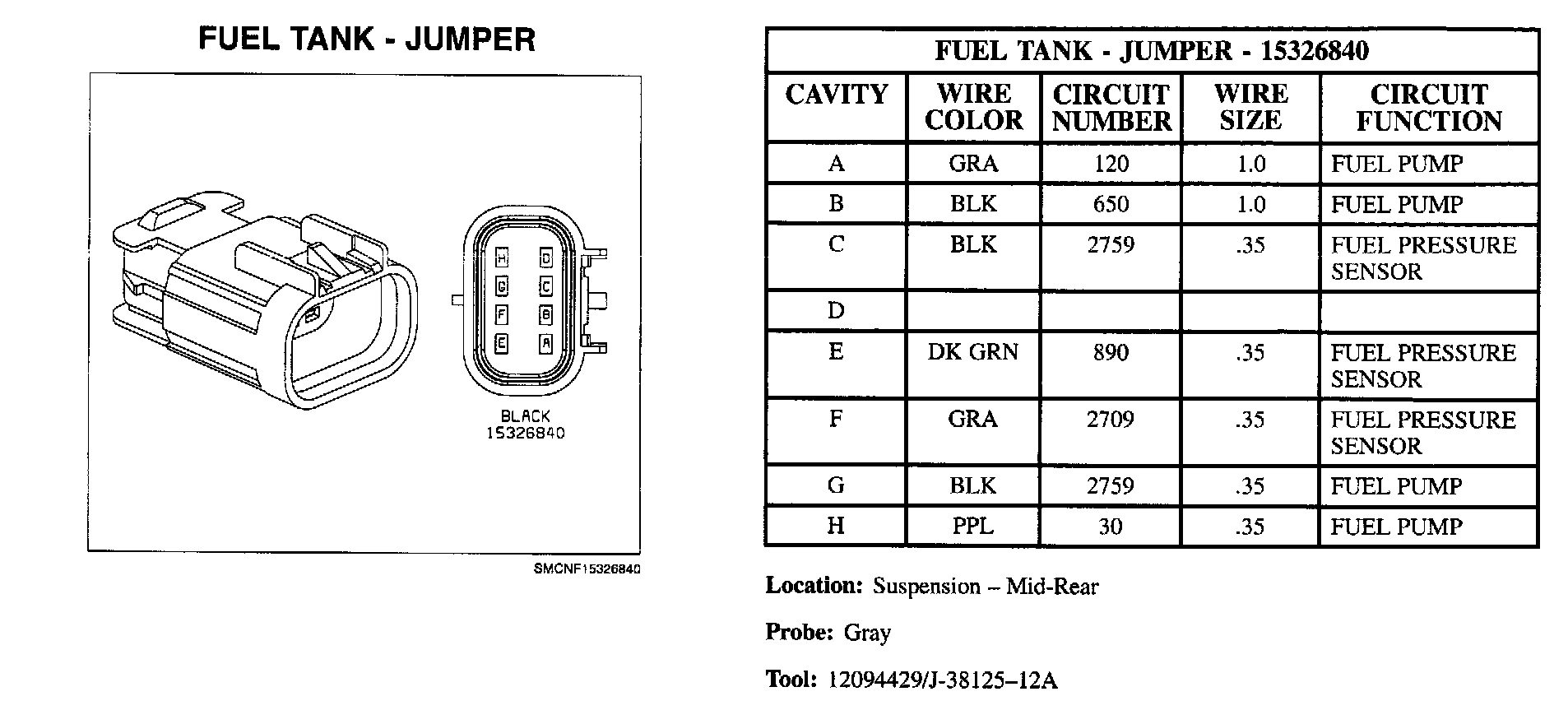

Fuel Tank - Jumper:
