Powertrain Control Module (PCM) J2
Powertrain Control Module (PCM) J2

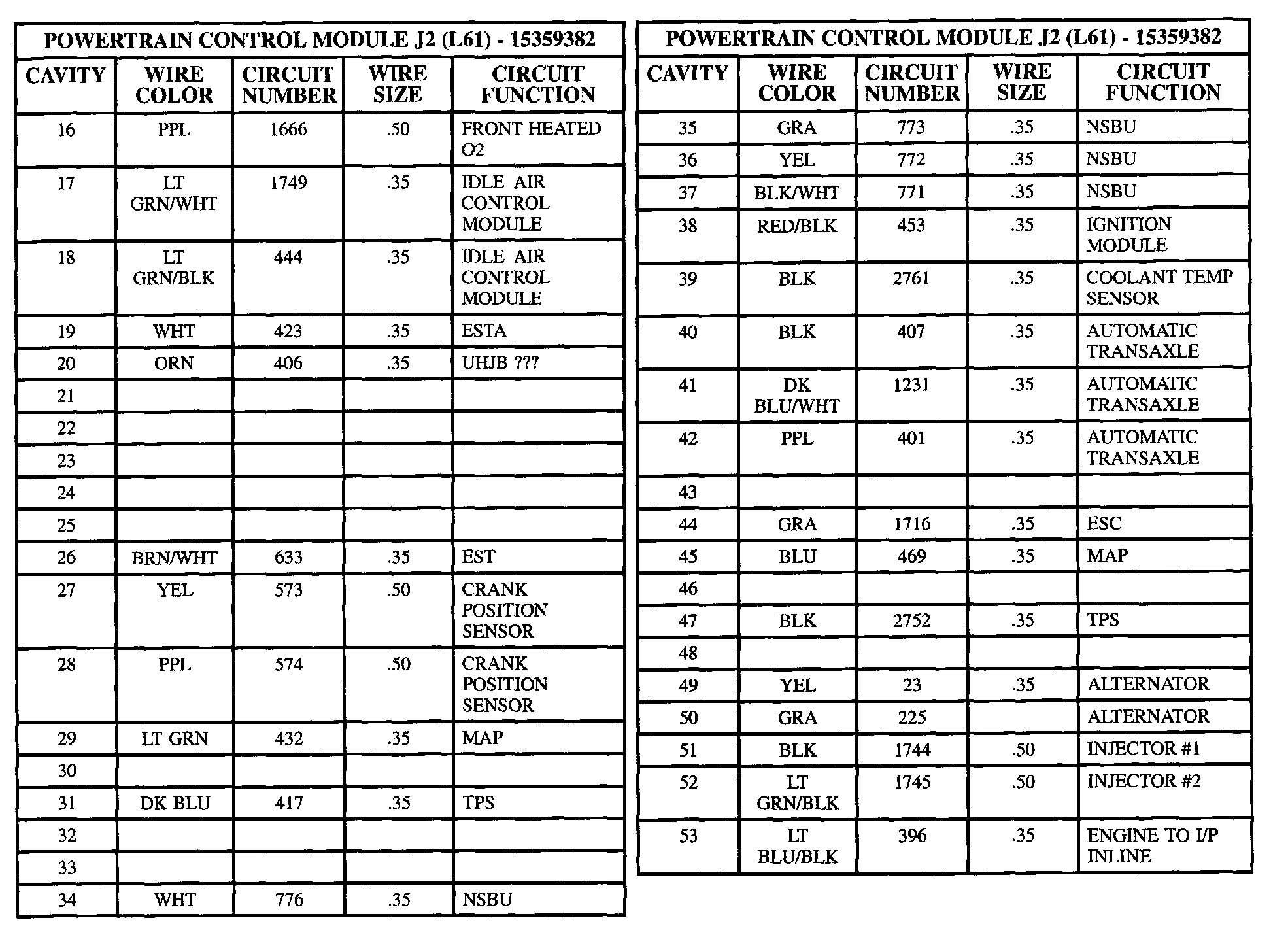

Powertrain Control Module (PCM) J2 Part 1:

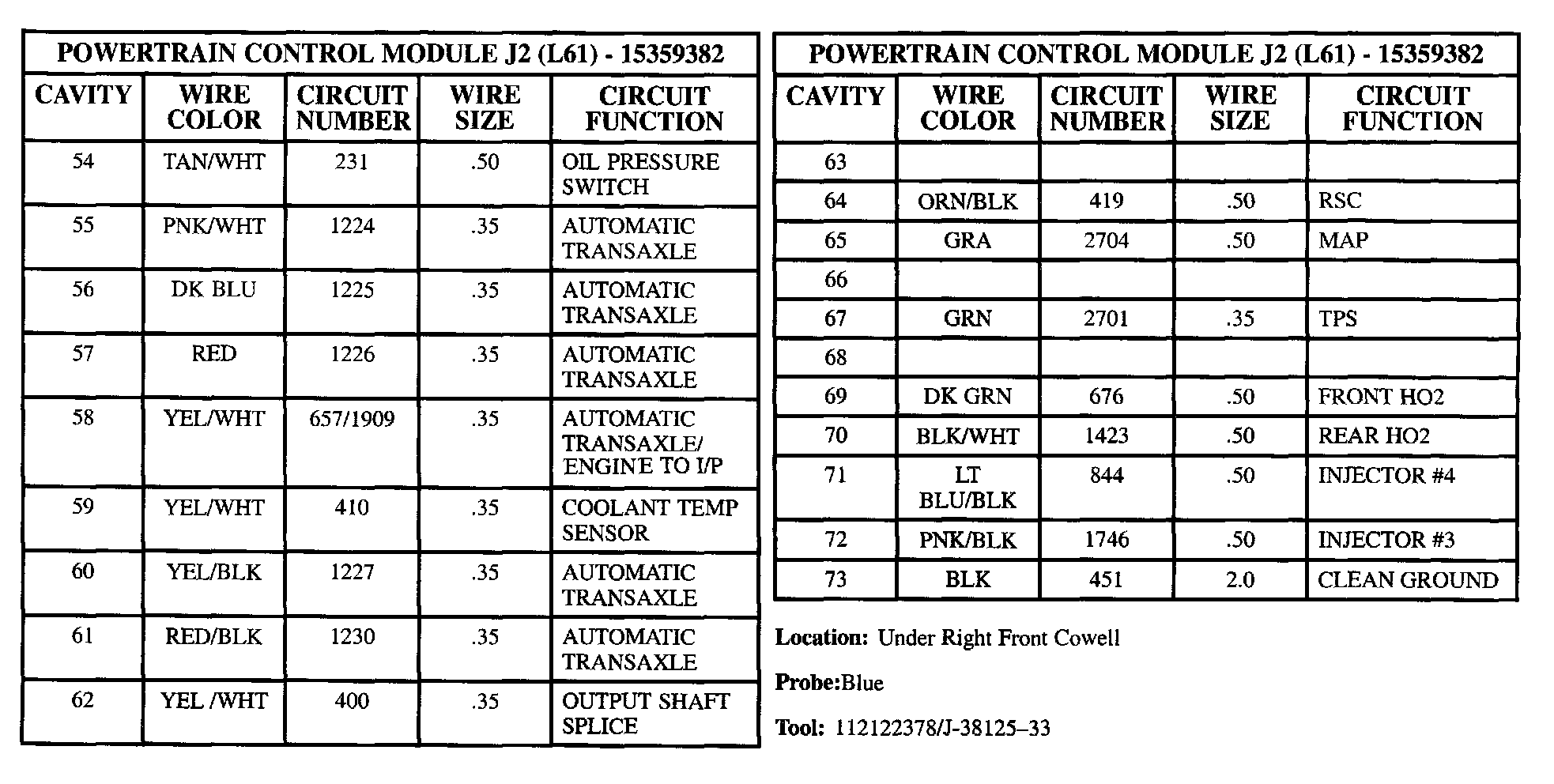

Powertrain Control Module (PCM) J2 Part 2:

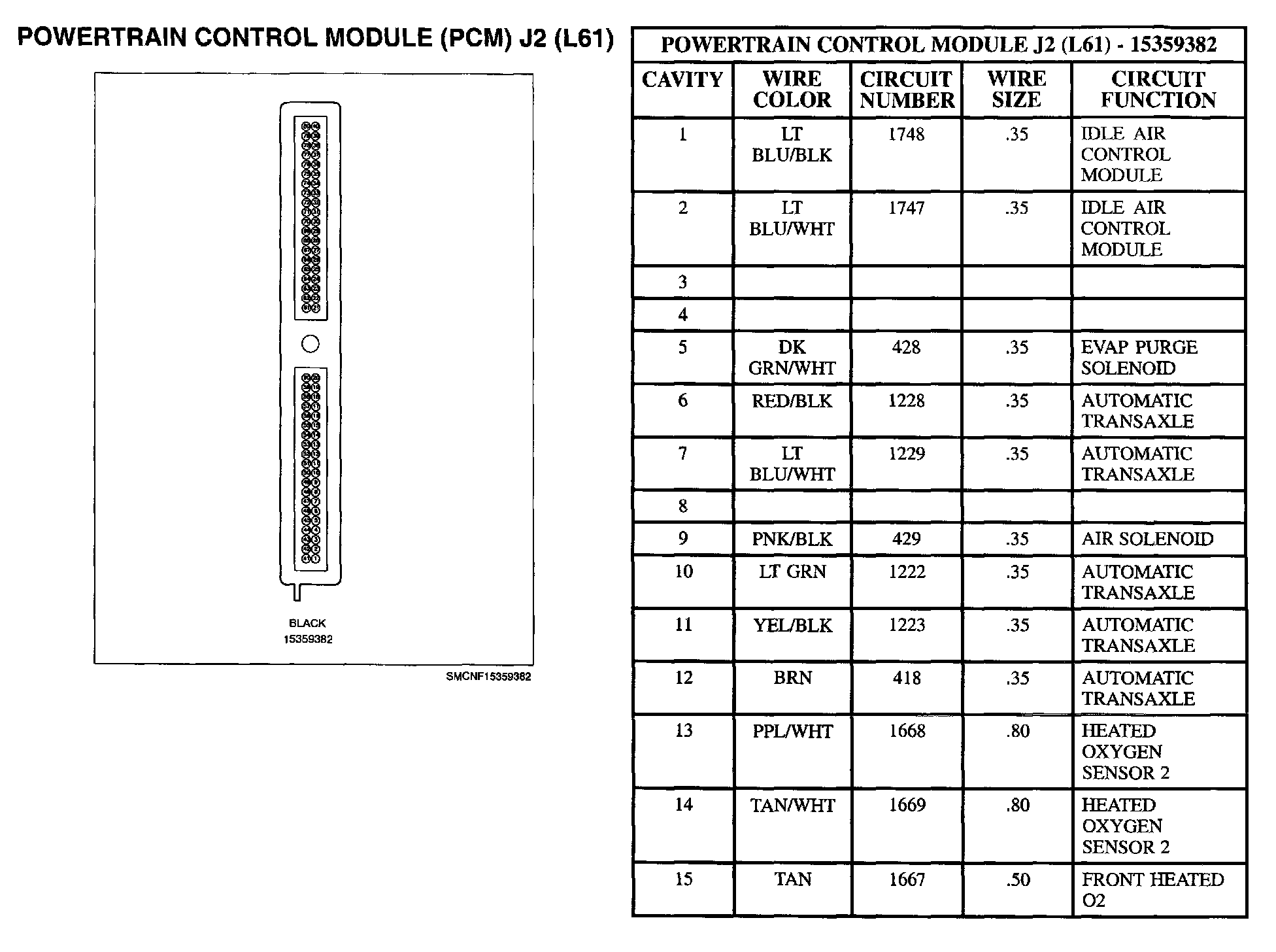

Powertrain Control Module (PCM) J2 Part 3:
