Home >> Saturn >> 2001 >> L200 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Head and Components

Cylinder Head and Components

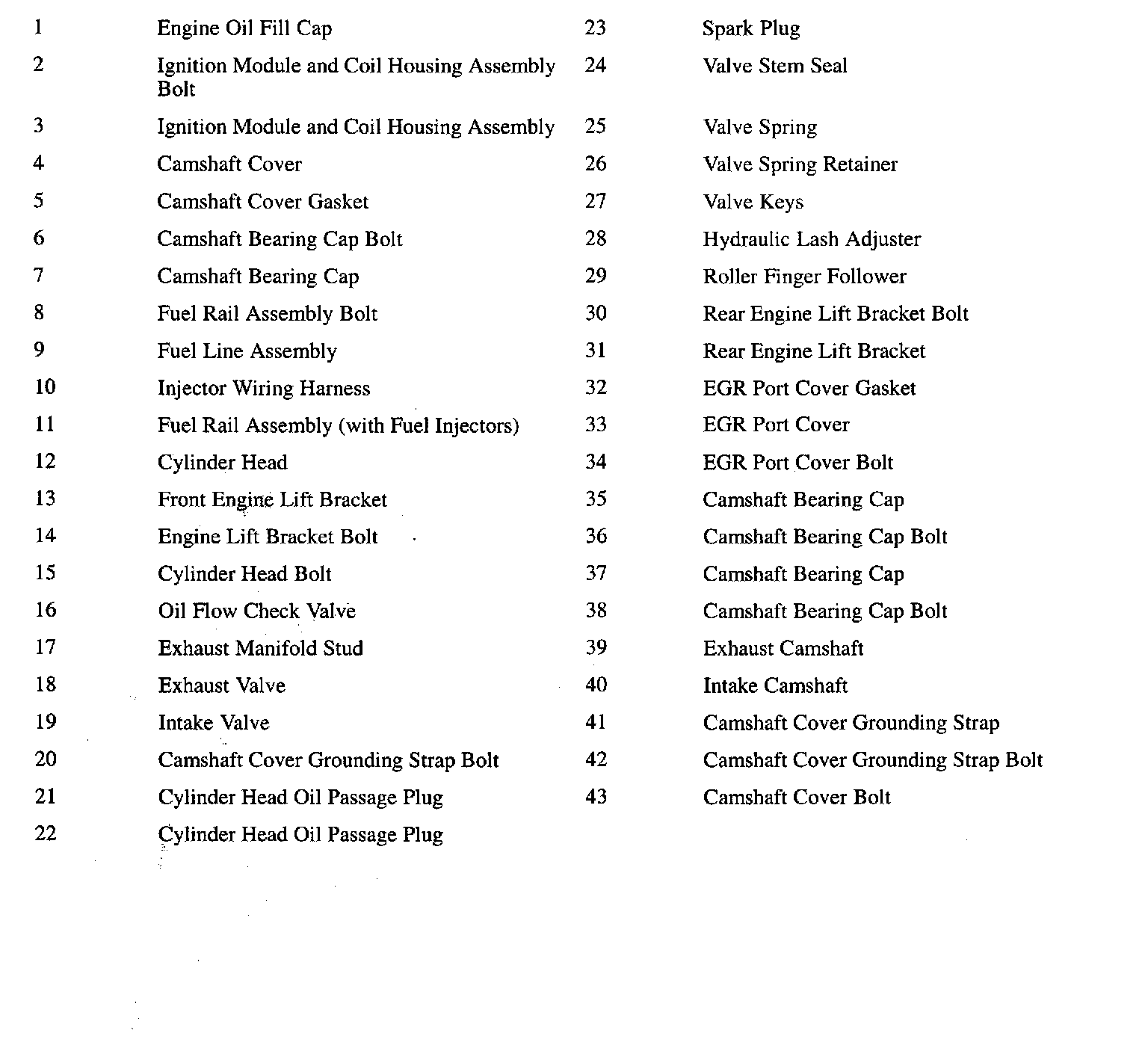

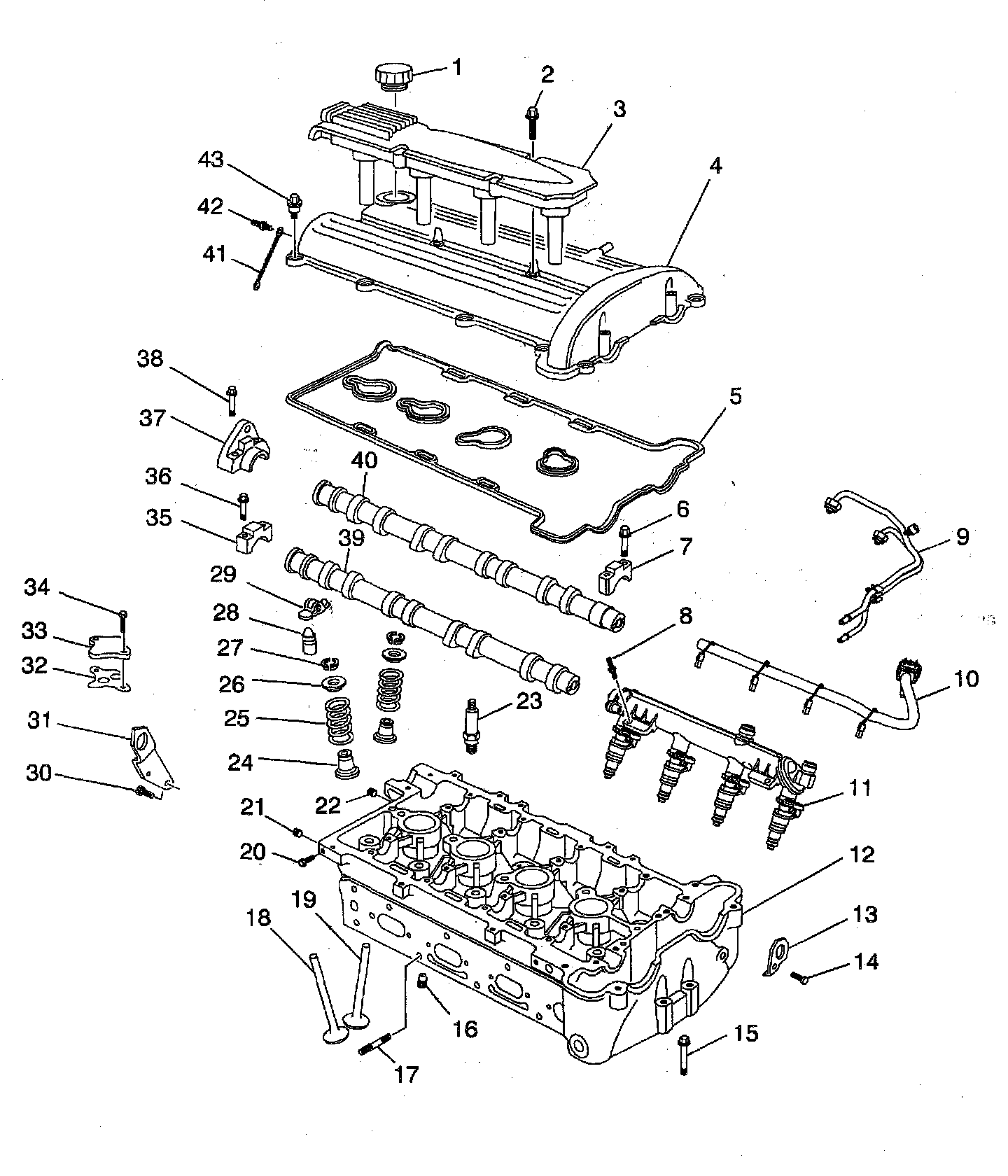

CYLINDER HEAD AND COMPONENTS





Part 1 of 2





Part 2 of 2
