Home >> Saturn >> 2001 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Manual Transmission/Transaxle >> Internal Shift Mechanism

Internal Shift Mechanism

INTERNAL SHIFT MECHANISM

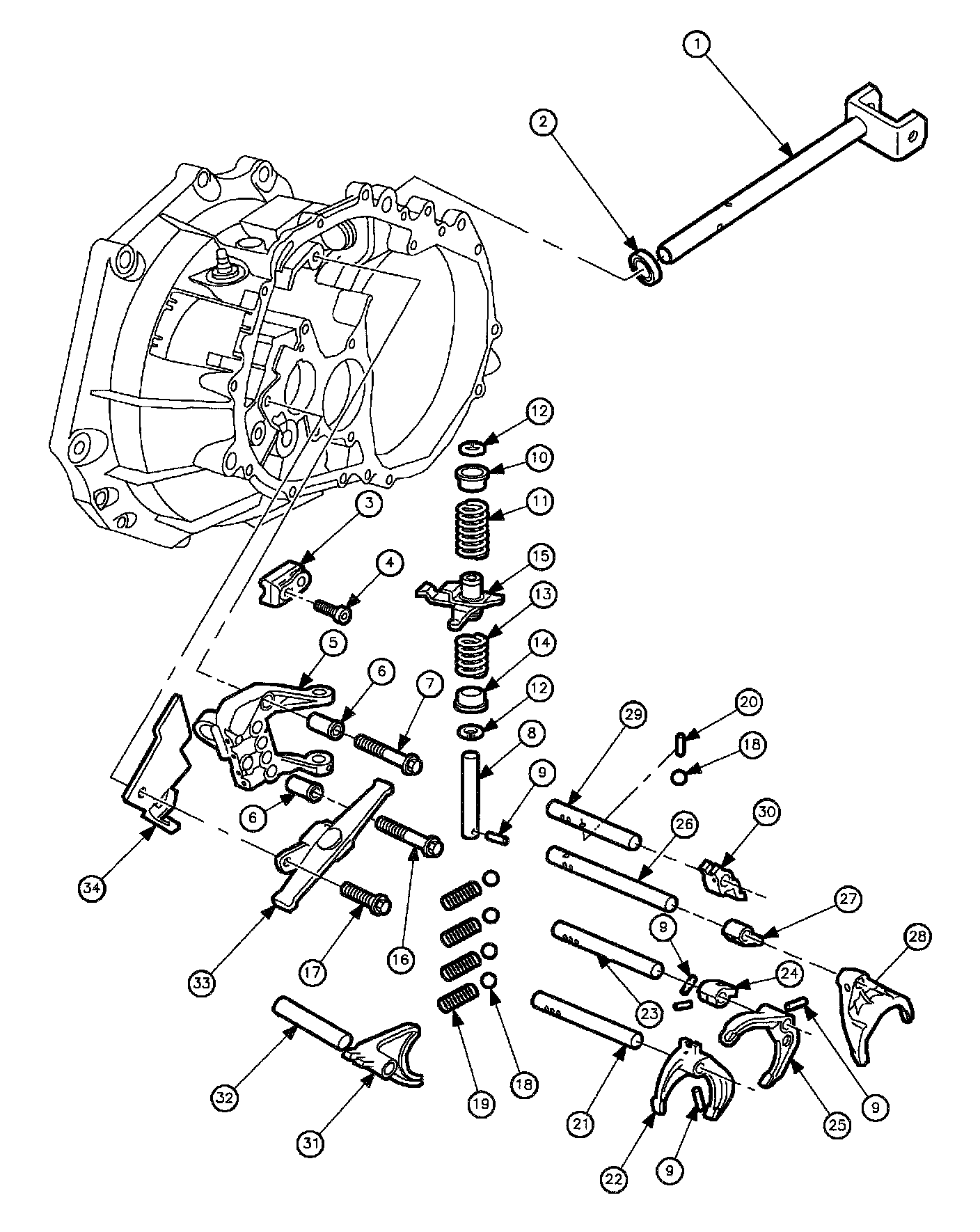

Part 1 of 2

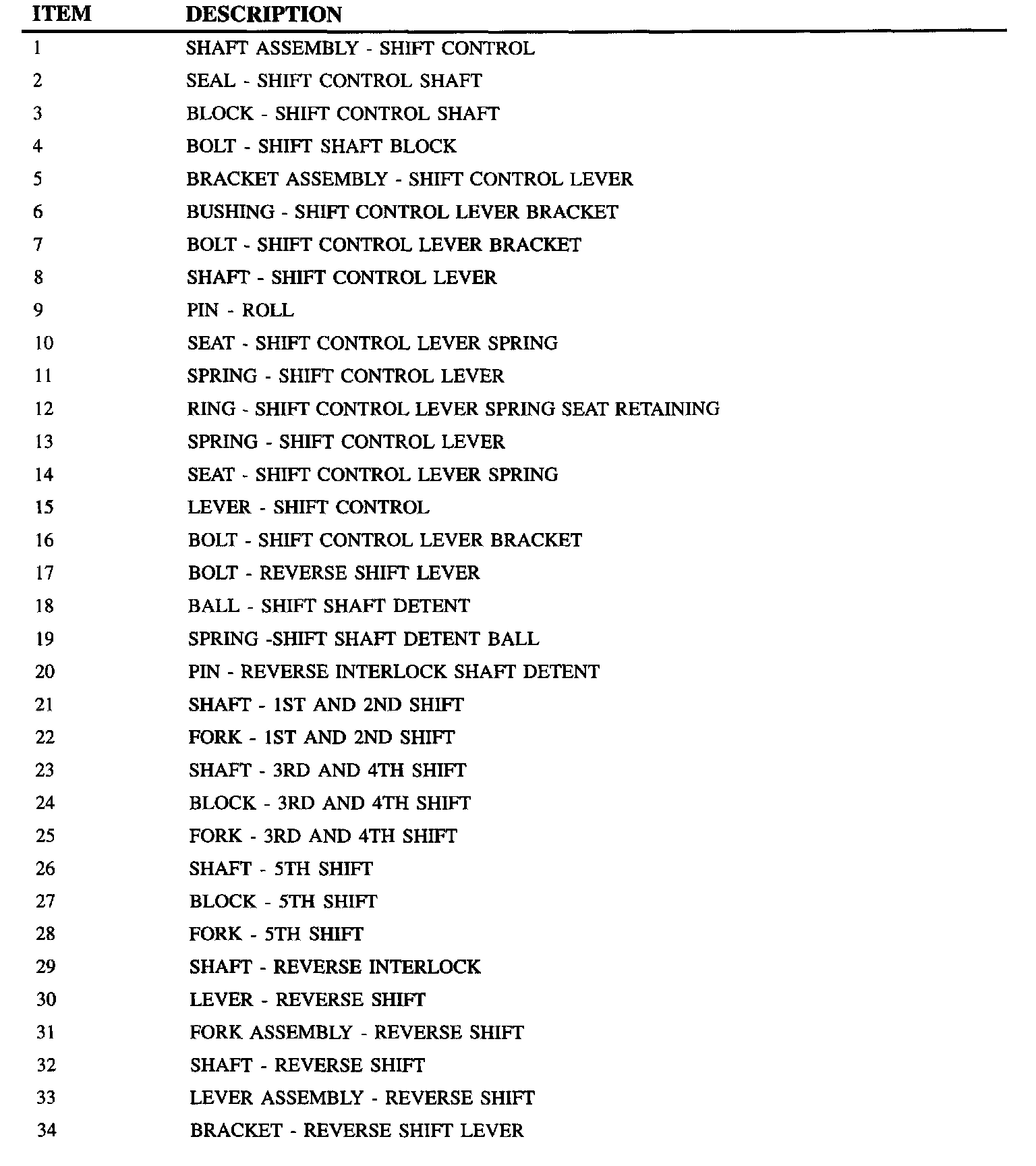

Part 2 of 2
