Home >> Saturn >> 2001 >> L100 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windows >> System Diagram

System Diagram

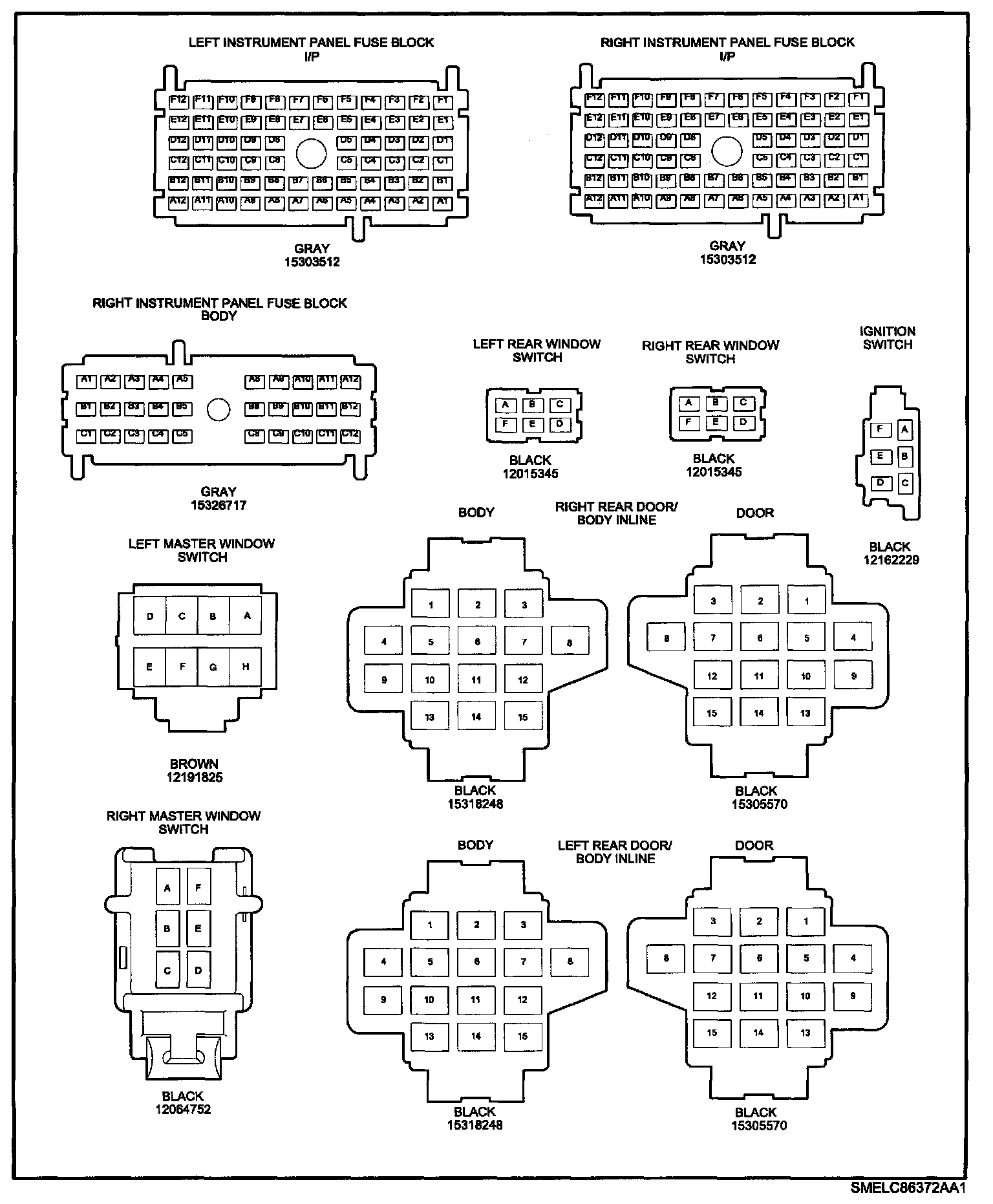

Power Window Harness Connector Face Views:
