Connector Face Views

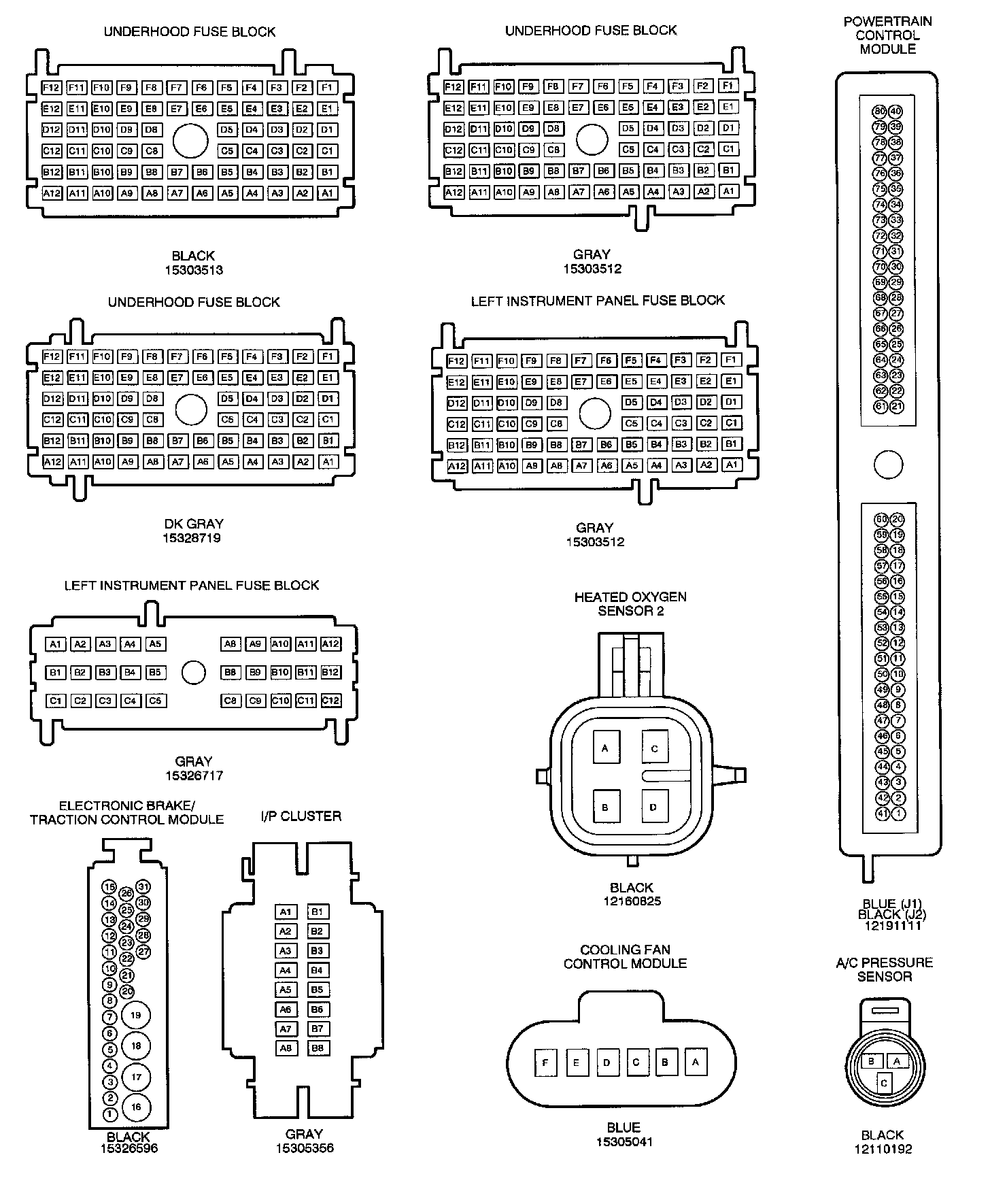

Powertrain Control Module (PCM) Connector Face Views (2001)

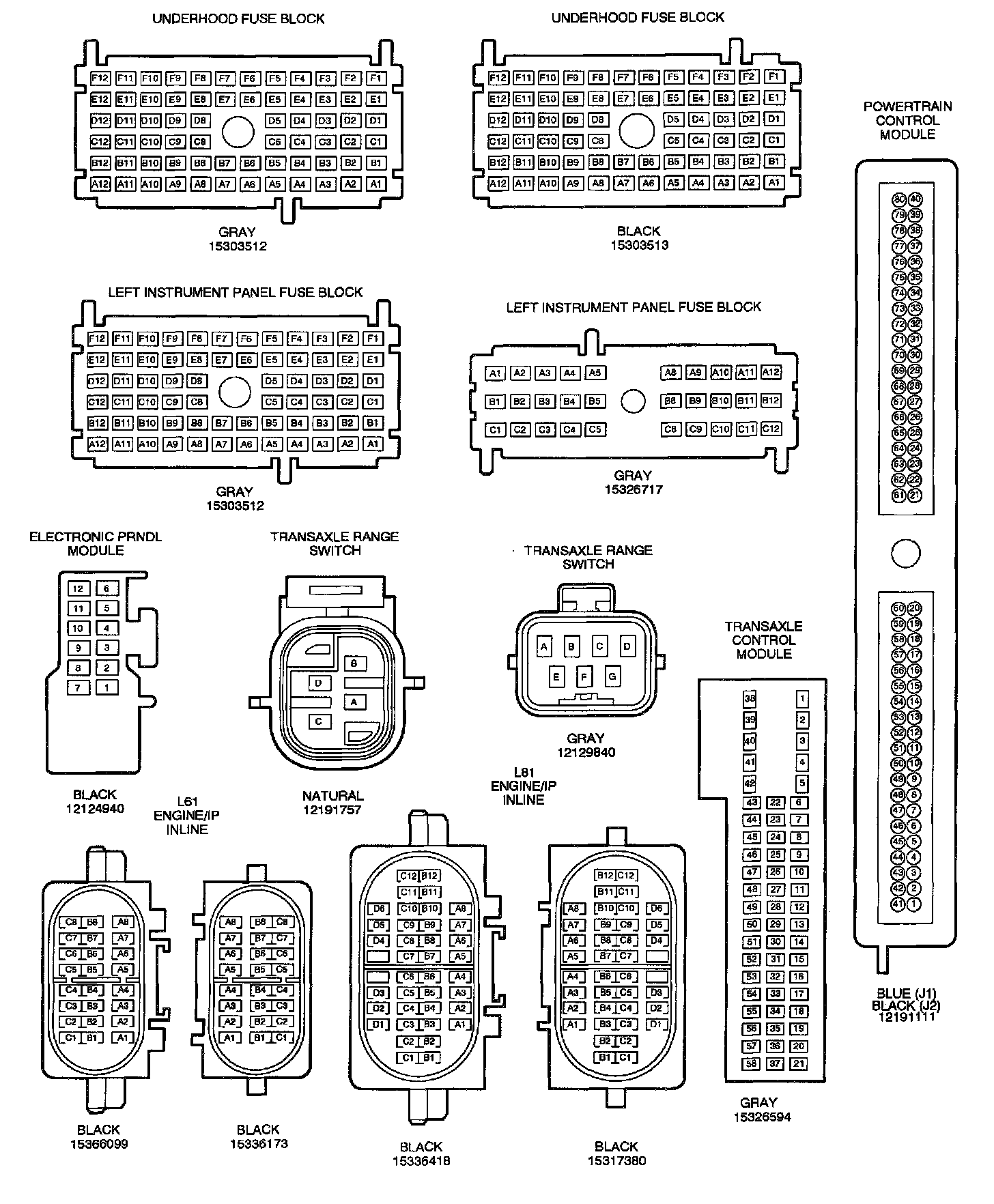

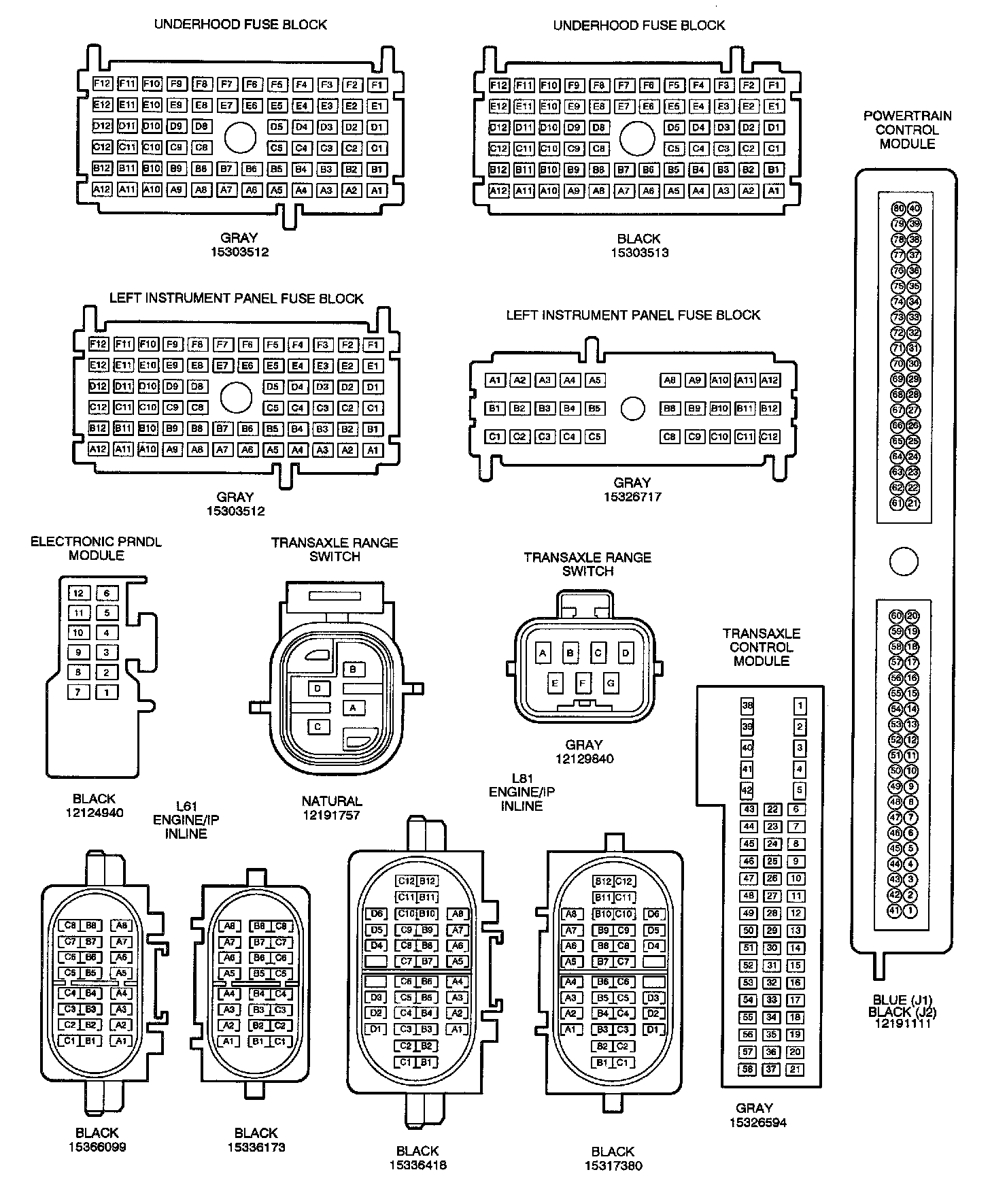

Transaxle Control Module (TCM) - (2001)

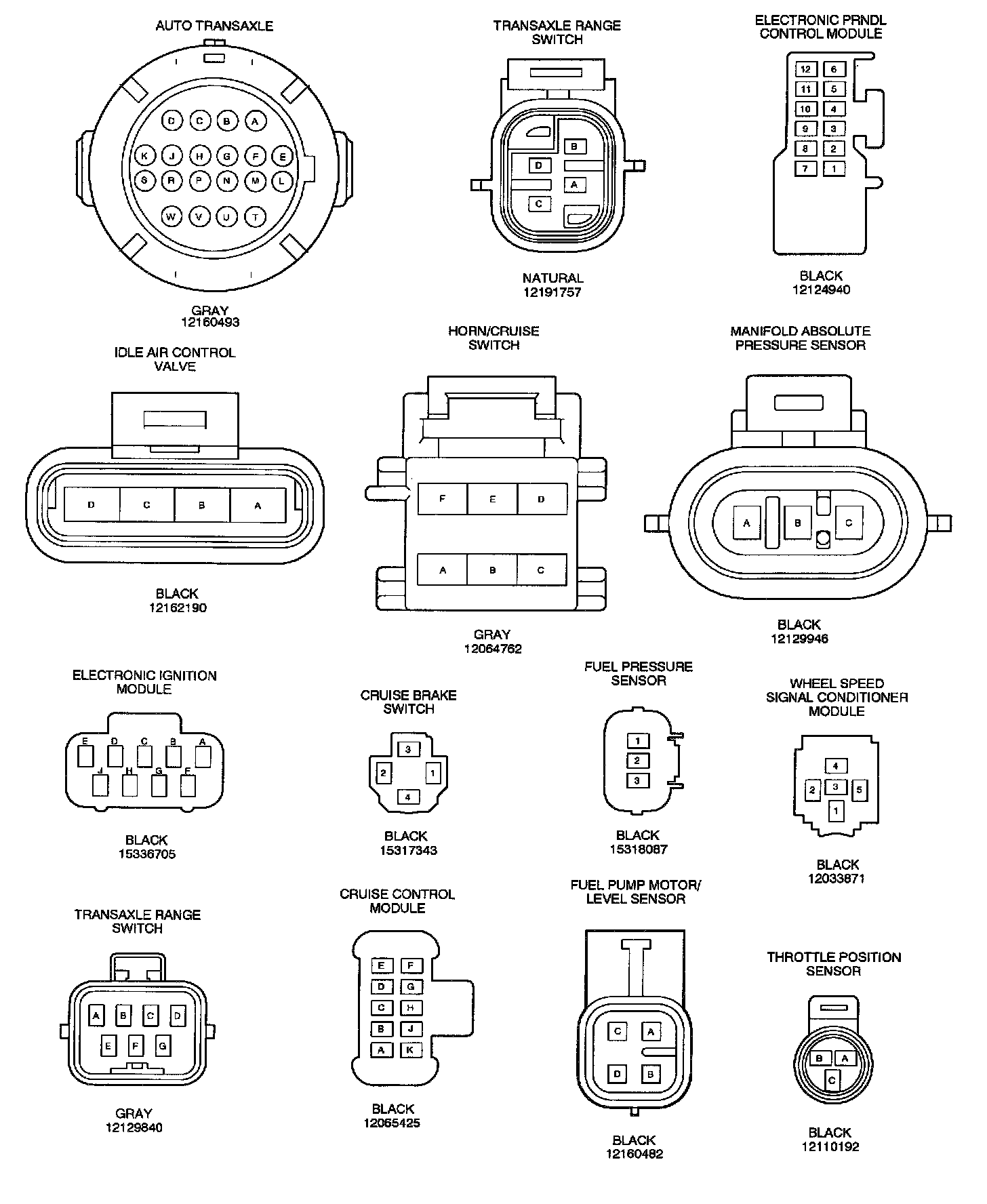

Shift Control Connector Face Views (2001)
