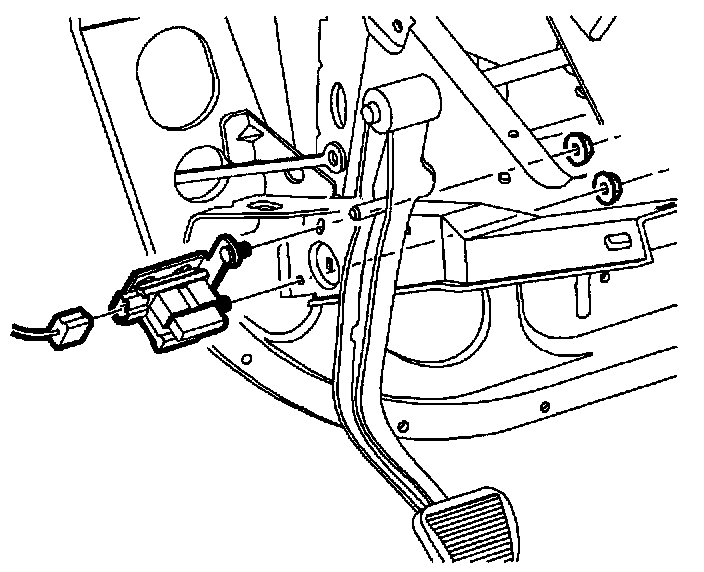

Clutch Switch: Service and Repair

REMOVAL




1. Disconnect clutch pedal start switch electrical connector.
2. Remove attachment nuts and remove switch.

INSTALLATION




1. Install clutch pedal start switch studs through steering column support bracket.
2. Install nuts.
3. Connect electrical connector.
4. Check/adjust as necessary.
5. Tighten nuts.
