Home >> Saturn >> 2000 >> LS1 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> PCM Transaxle Inputs and Outputs

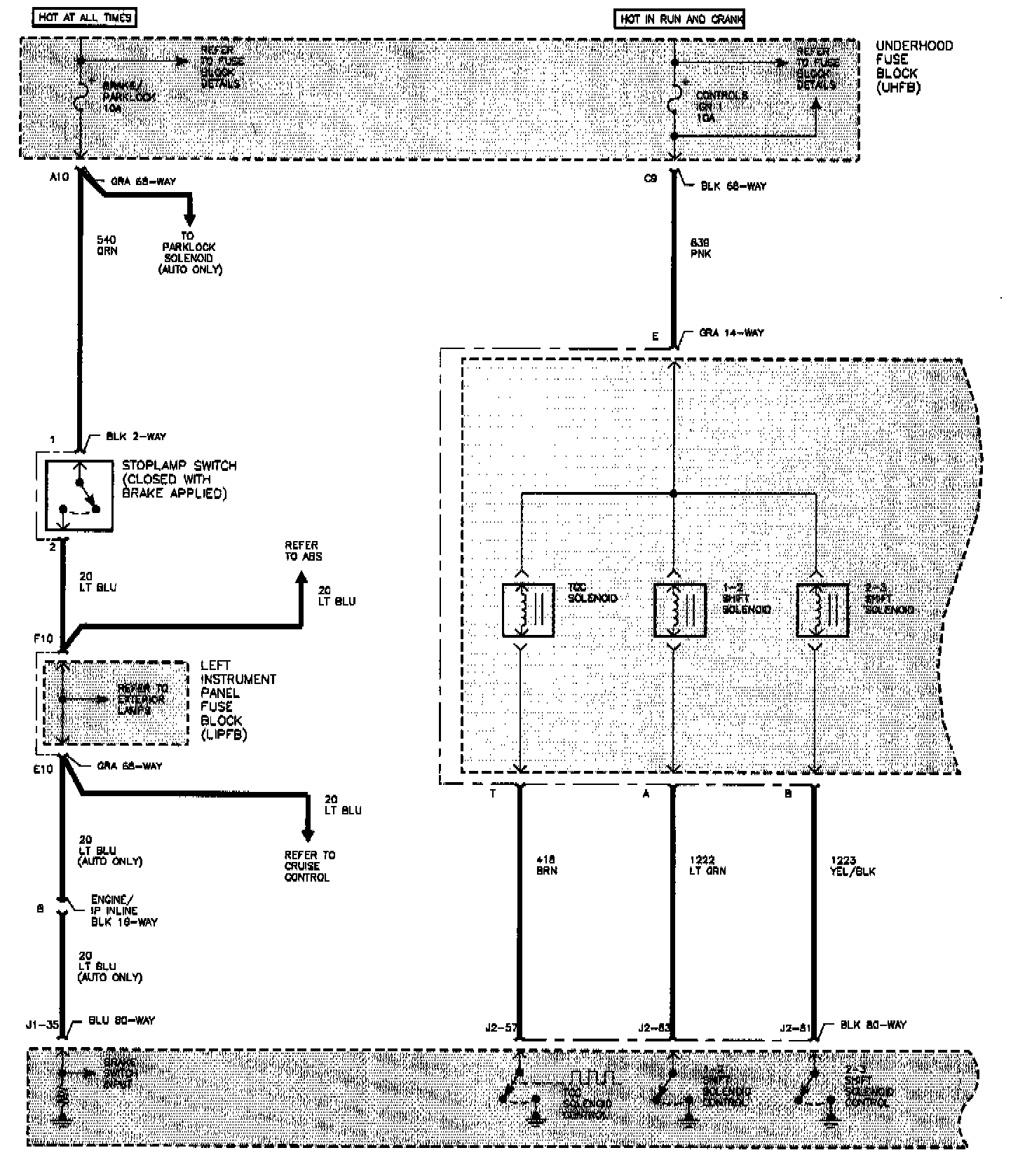

PCM Transaxle Inputs and Outputs
