Home >> Saturn >> 2000 >> LS1 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems

Antitheft and Alarm Systems

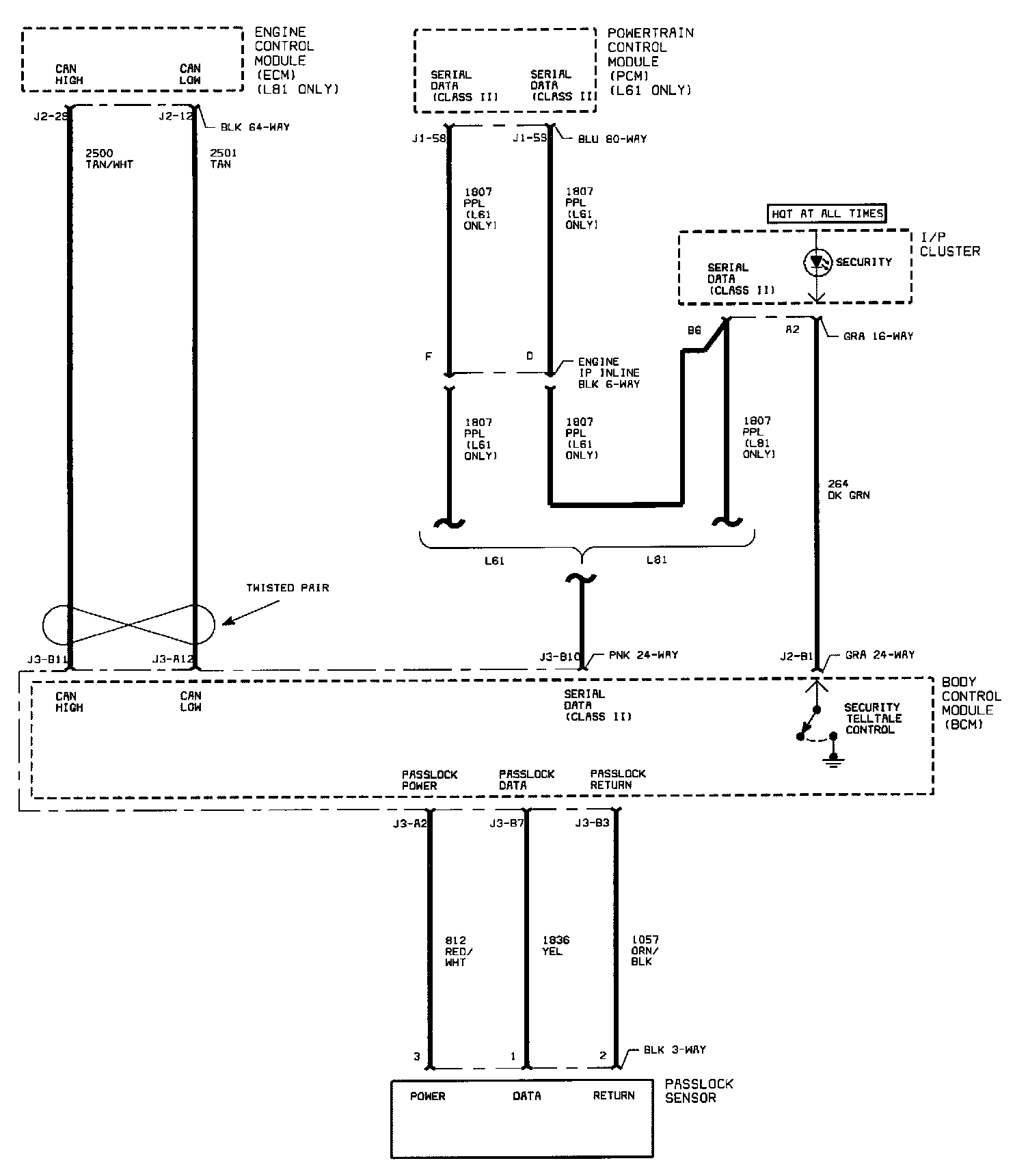

Passlock Schematics:
