Right I/P Fuse Block - Body
Right I/P Fuse Block - Body

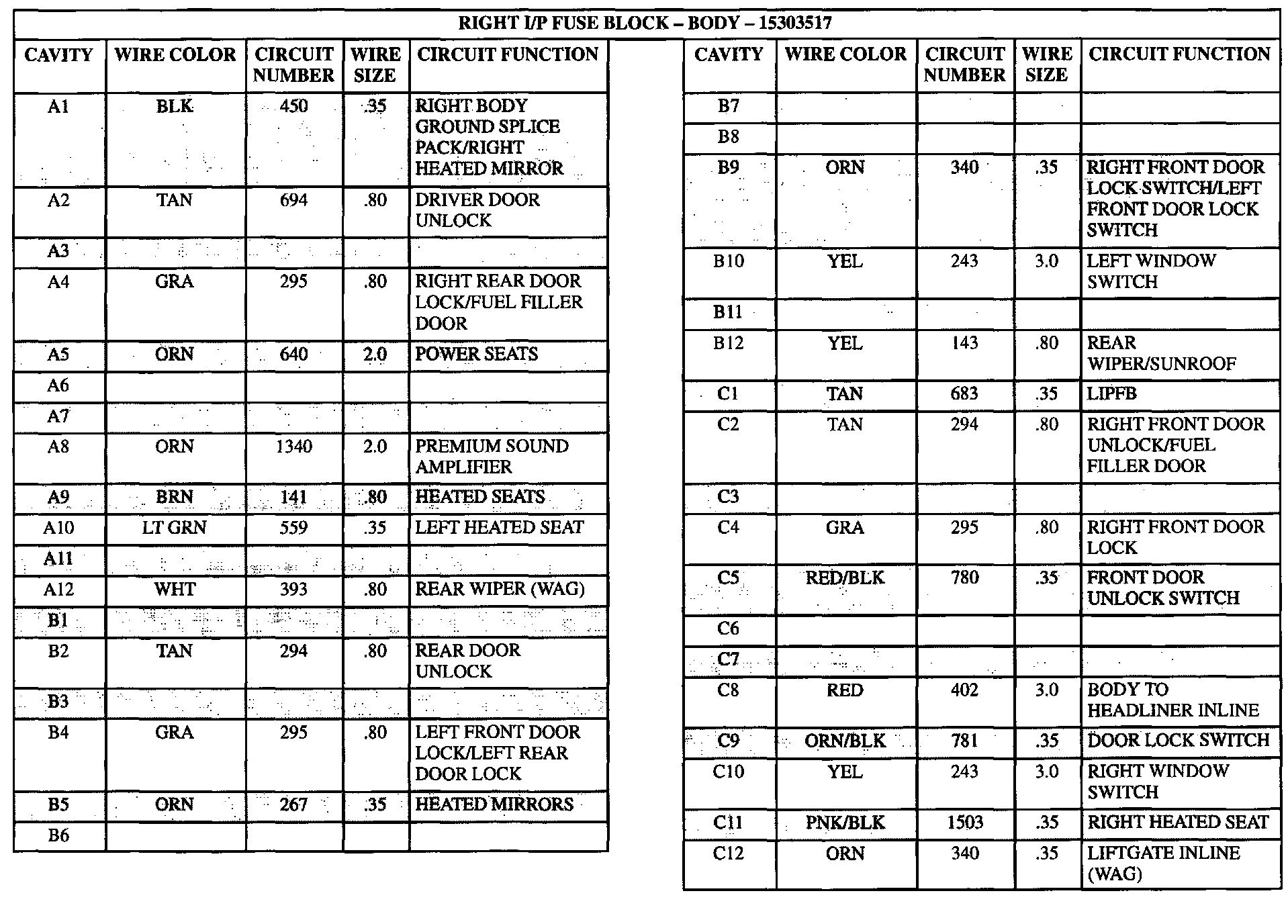

Right I/P Fuse Block - Body (Part 1 Of 2):
Right I/P Fuse Block - Body (Part 2 Of 2):
