Home >> Saturn >> 2000 >> LS1 L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Starting and Charging >> Fuse Block >> Engine To I/P Fuseblock Inline

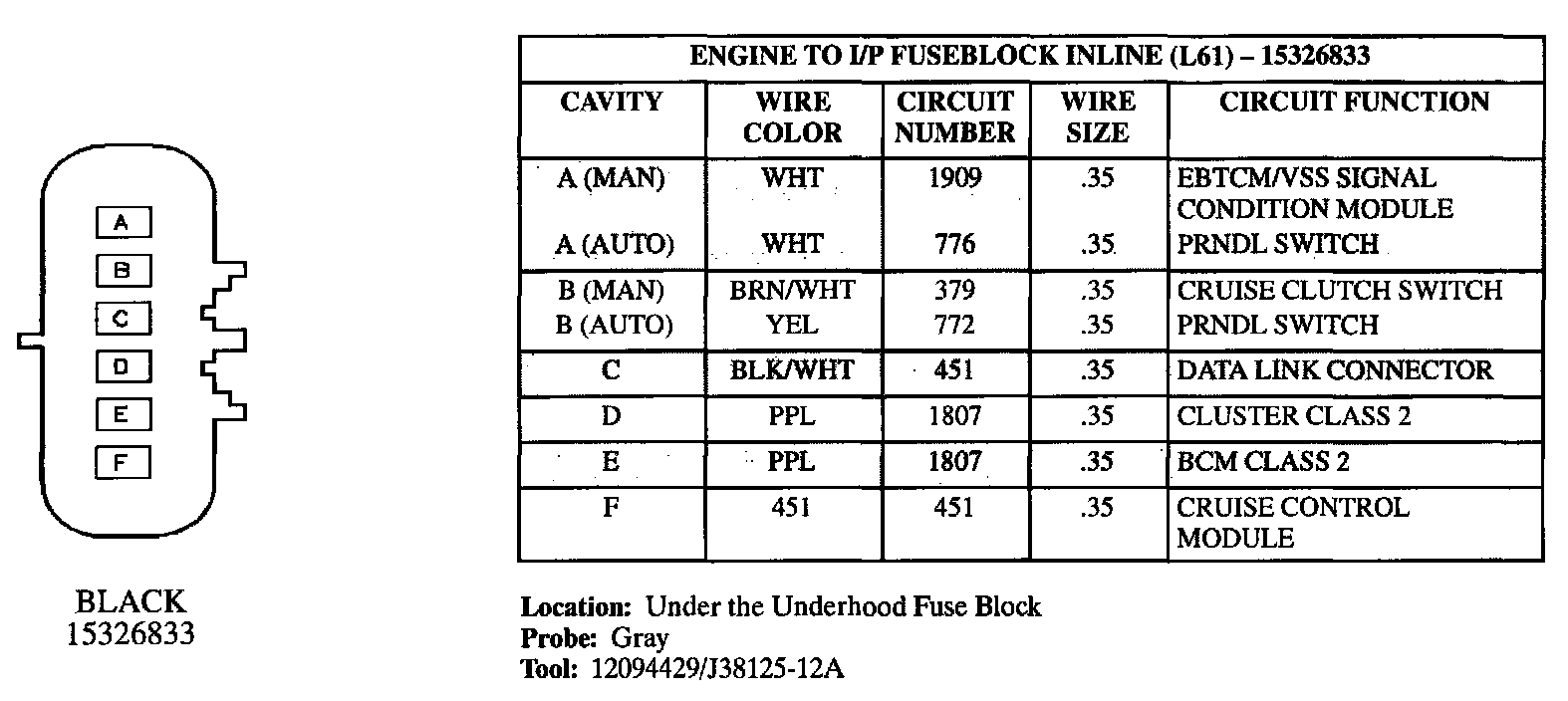

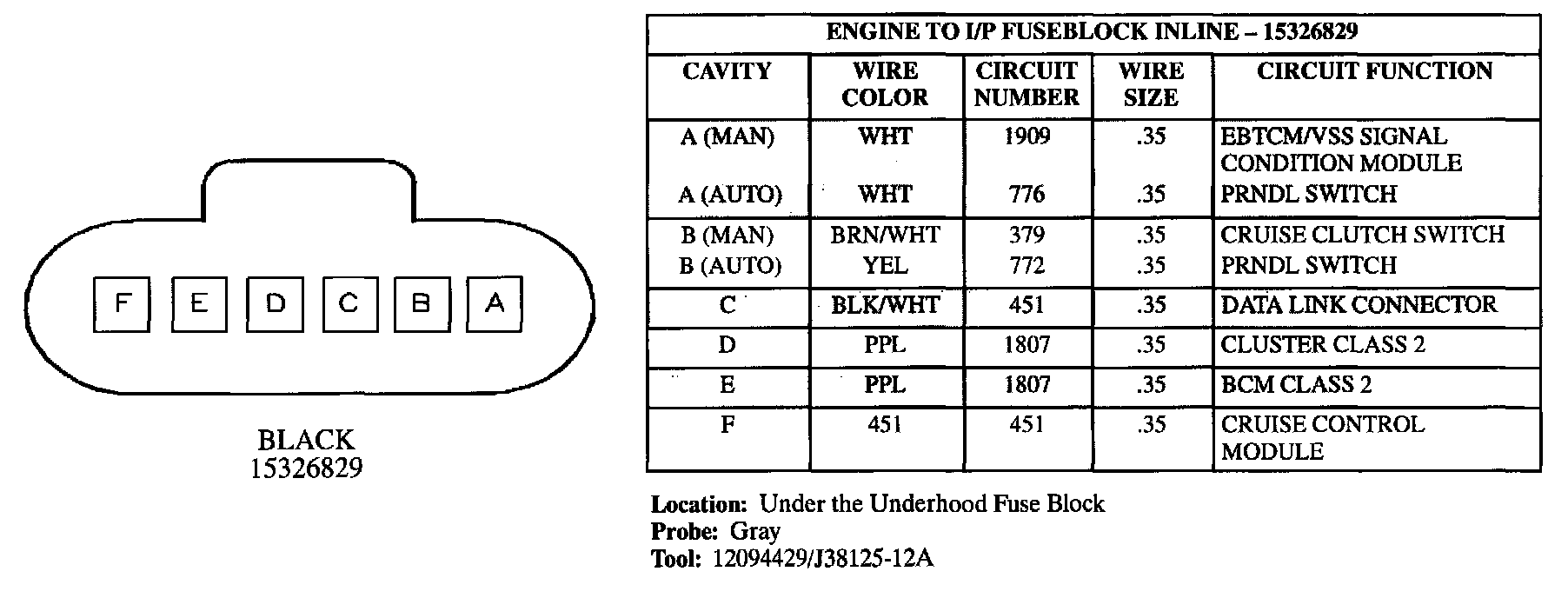

Engine To I/P Fuseblock Inline

Engine To I/P Fuseblock Inline:



Engine To I/P Fuseblock Inline:
