45. Driven Sprocket Support Assembly Installation

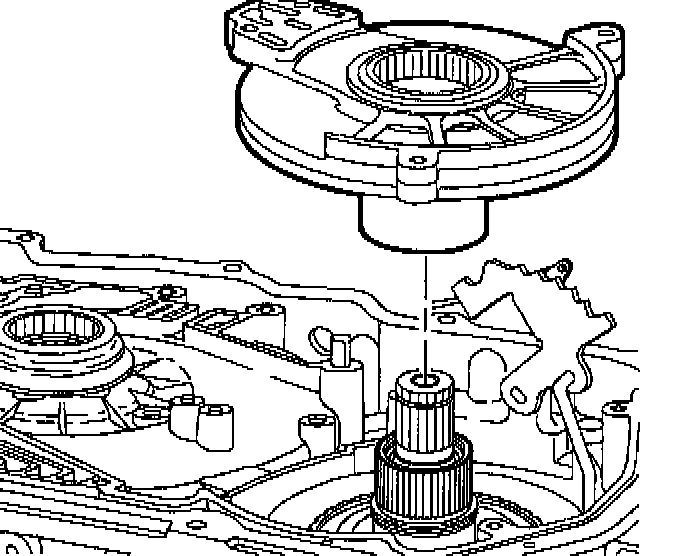

Install driven sprocket support and 2nd clutch assembly into transaxle case. When installed properly, driven sprocket support sits slightly below machined surface of transaxle case.
