Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Brake Transaxle Shift Interlock (BITIS)/Park Lock System

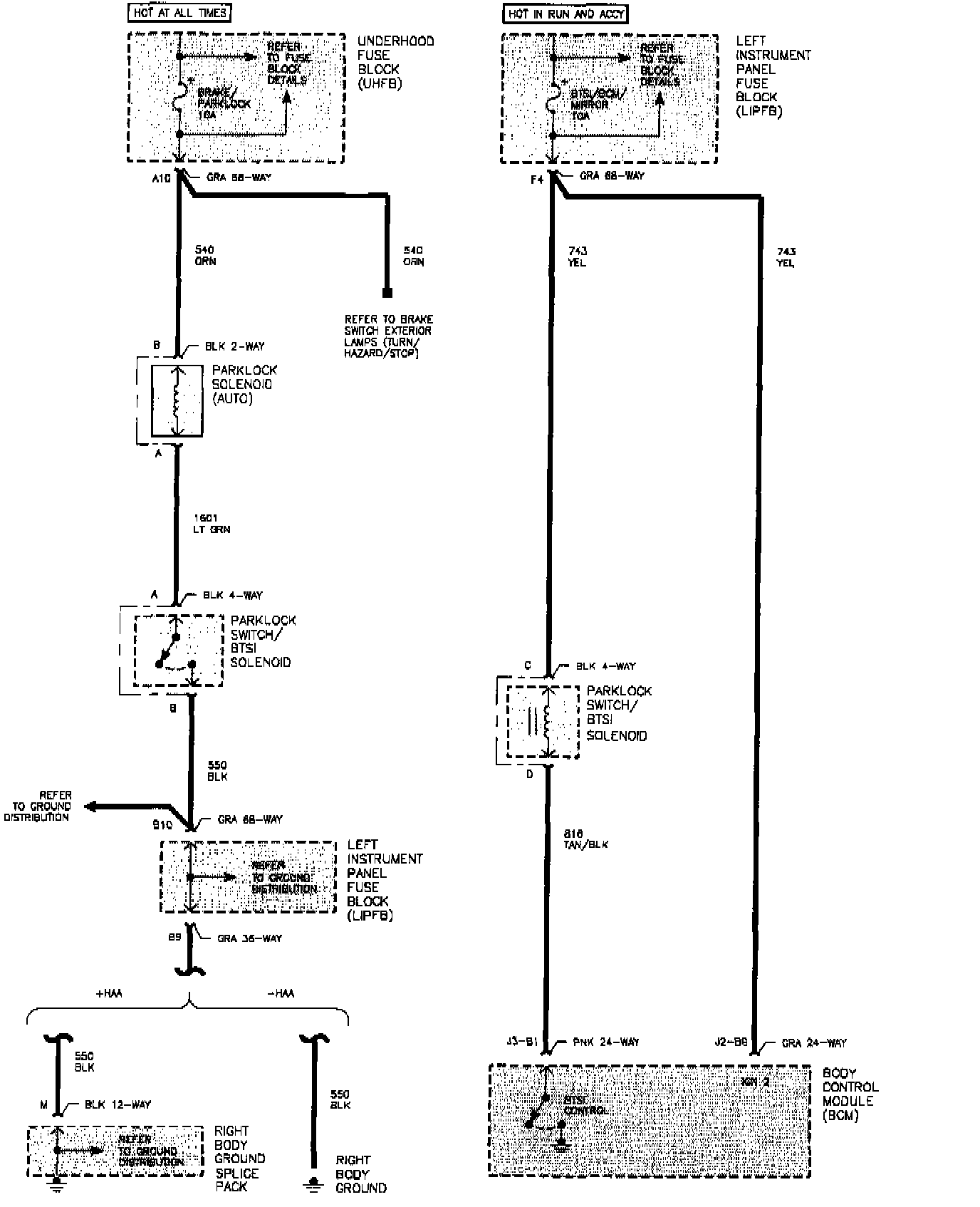

Brake Transaxle Shift Interlock (BITIS)/Park Lock System
