Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Driven Sprocket Support Assembly and 2ND Clutch

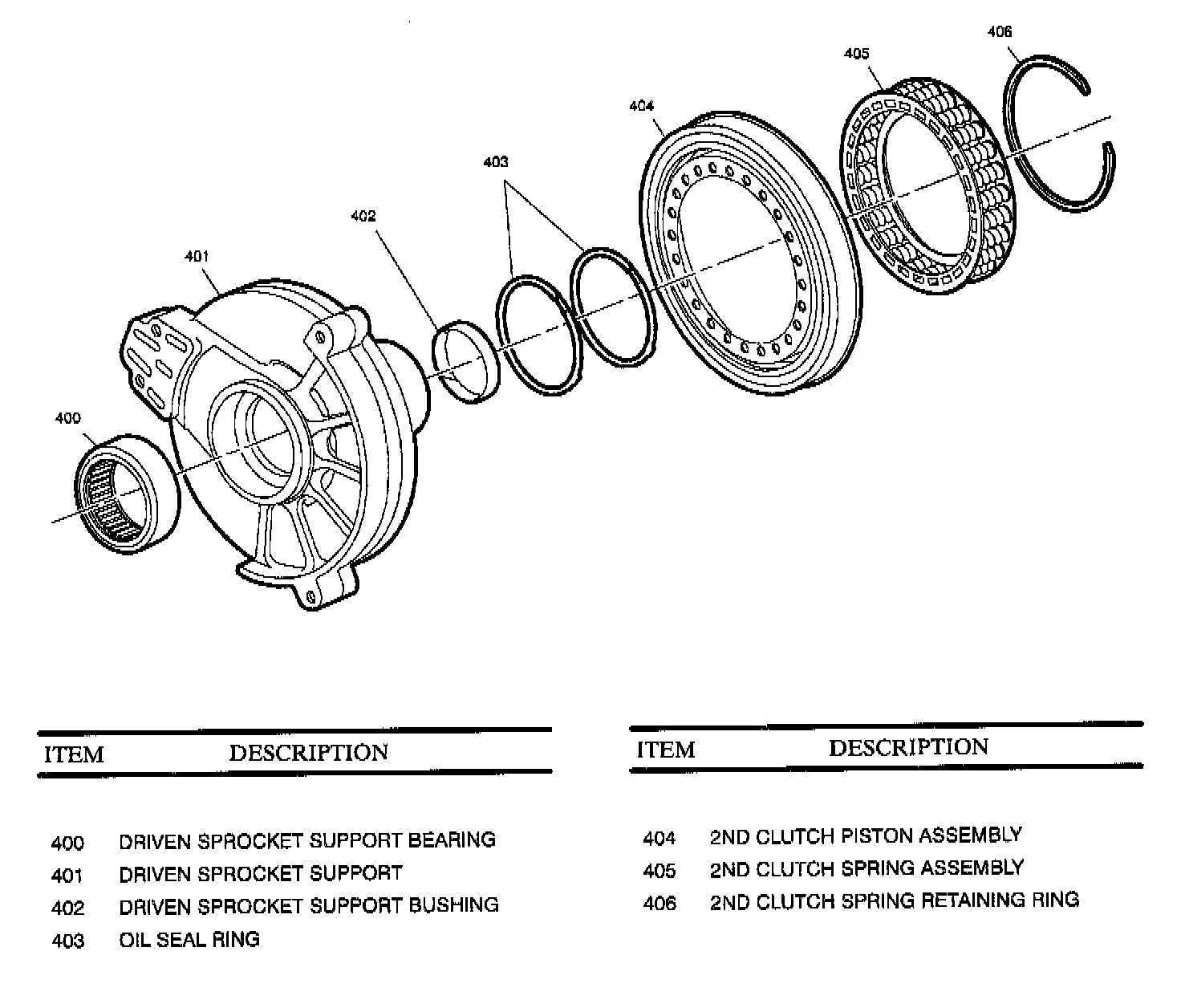

Driven Sprocket Support Assembly and 2ND Clutch
