Home >> Saturn >> 2000 >> LS L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Heating and Air Conditioning >> Housing Assembly HVAC

Housing Assembly HVAC

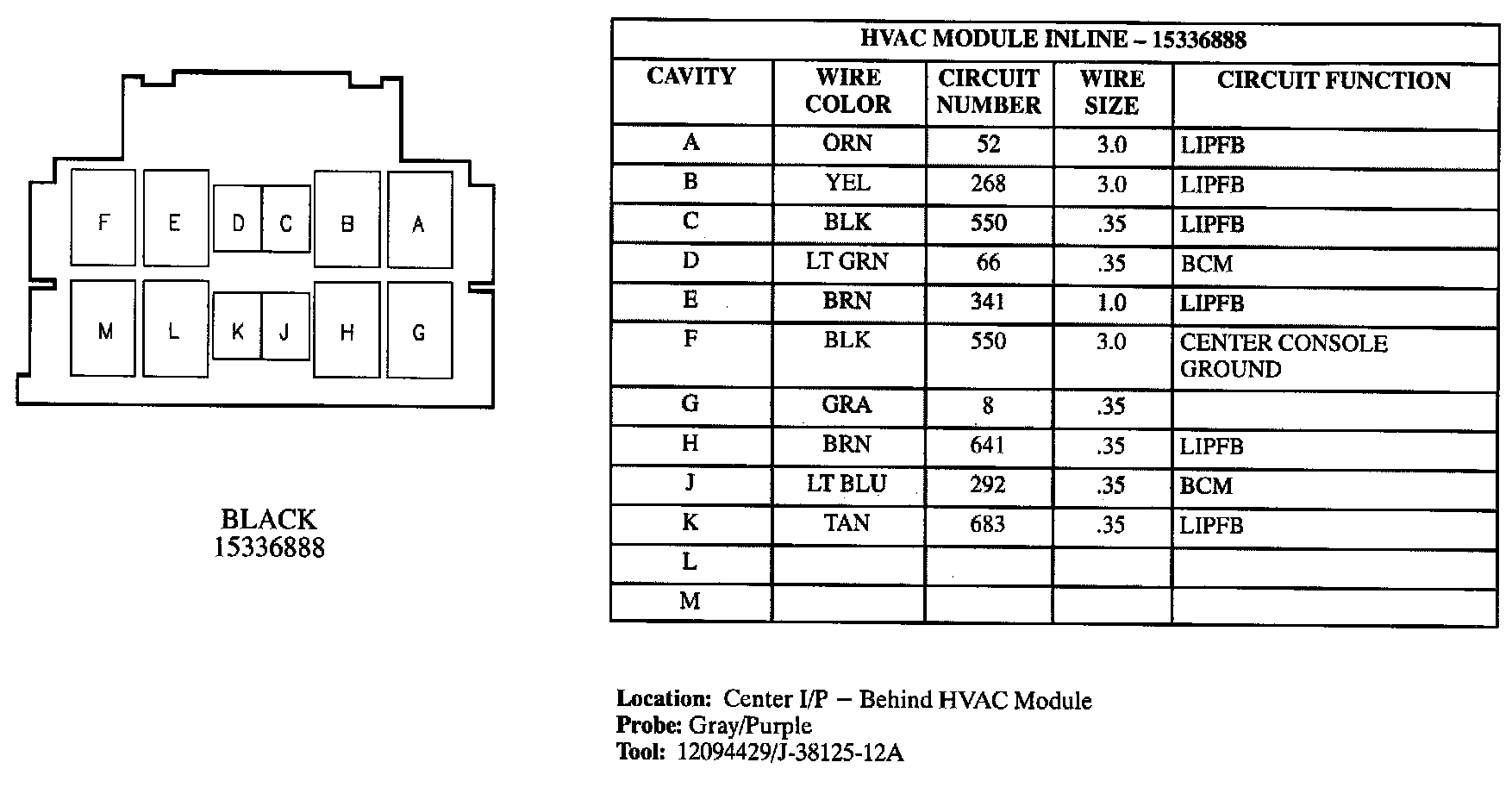

HVAC Module Inline:

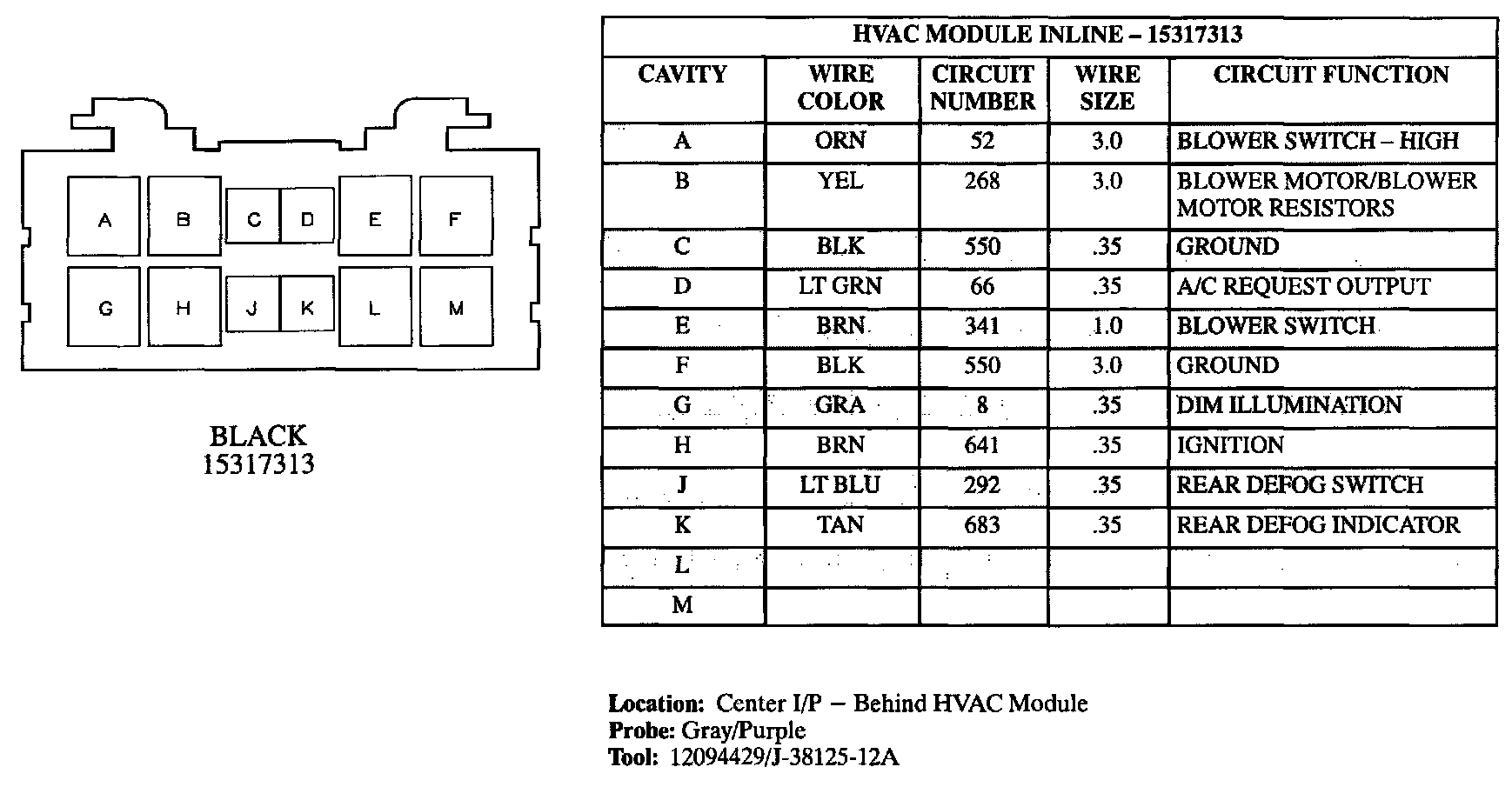

HVAC Module Inline:
