Cruise Control Servo Cable: Adjustments

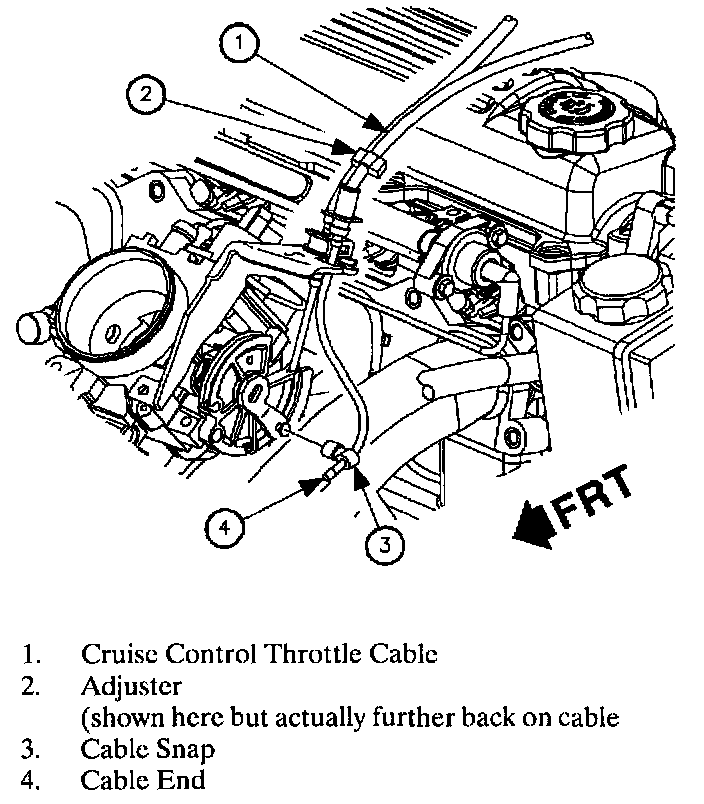

1. Partially disengage adjustment lock on cruise control throttle cable by depressing tabs (do not remove entirely). This will release spring inside adjuster to take out cable slack.
2. Make sure throttle cam is at closed position.
3. Ensure cable end is tight against cable snap.
4. Engage adjustment lock.
