Home >> Saturn >> 1999 >> SW2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Generator >> Right Hand Drive

Right Hand Drive

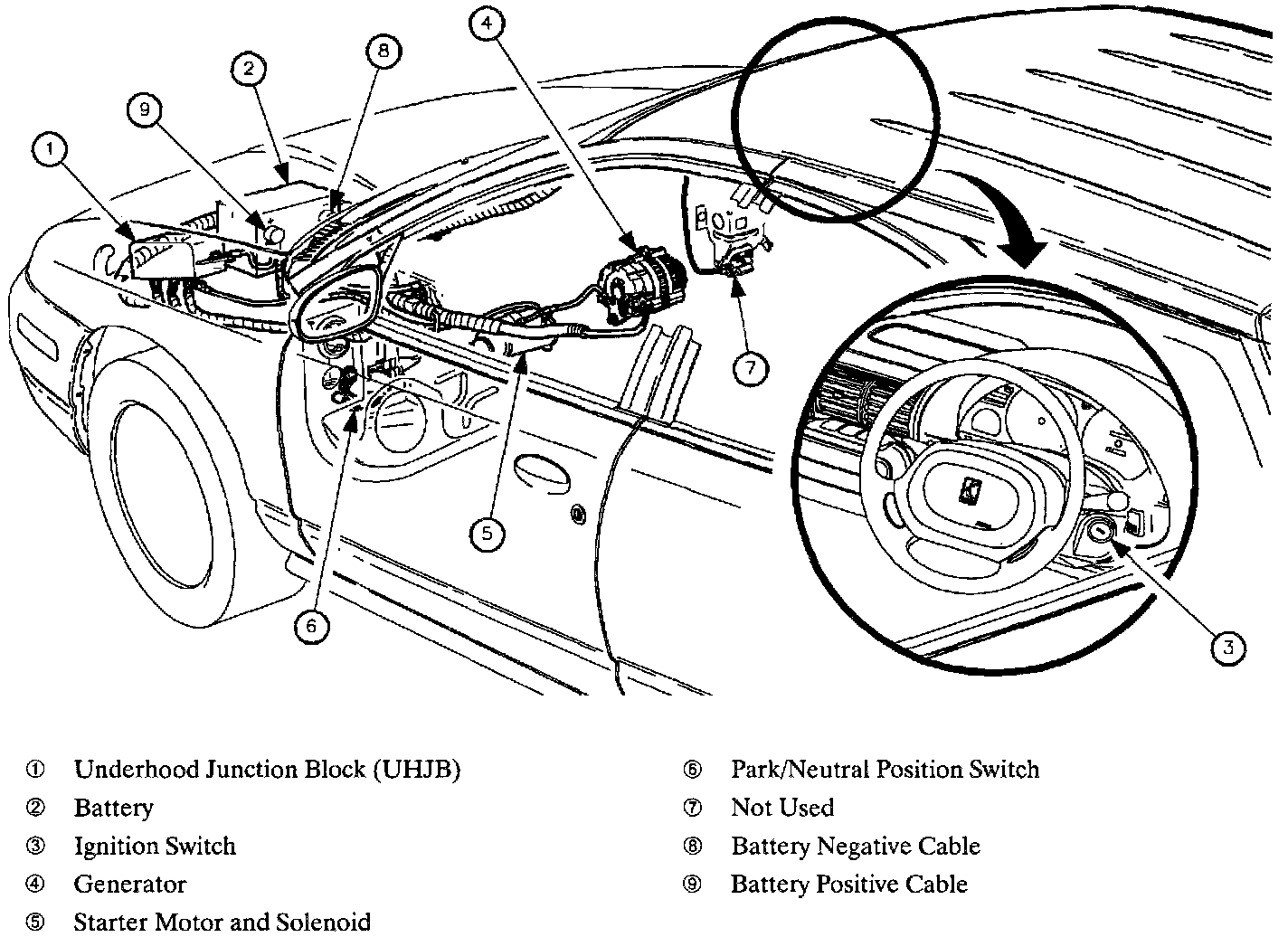

Ignition Switch System Component Location:

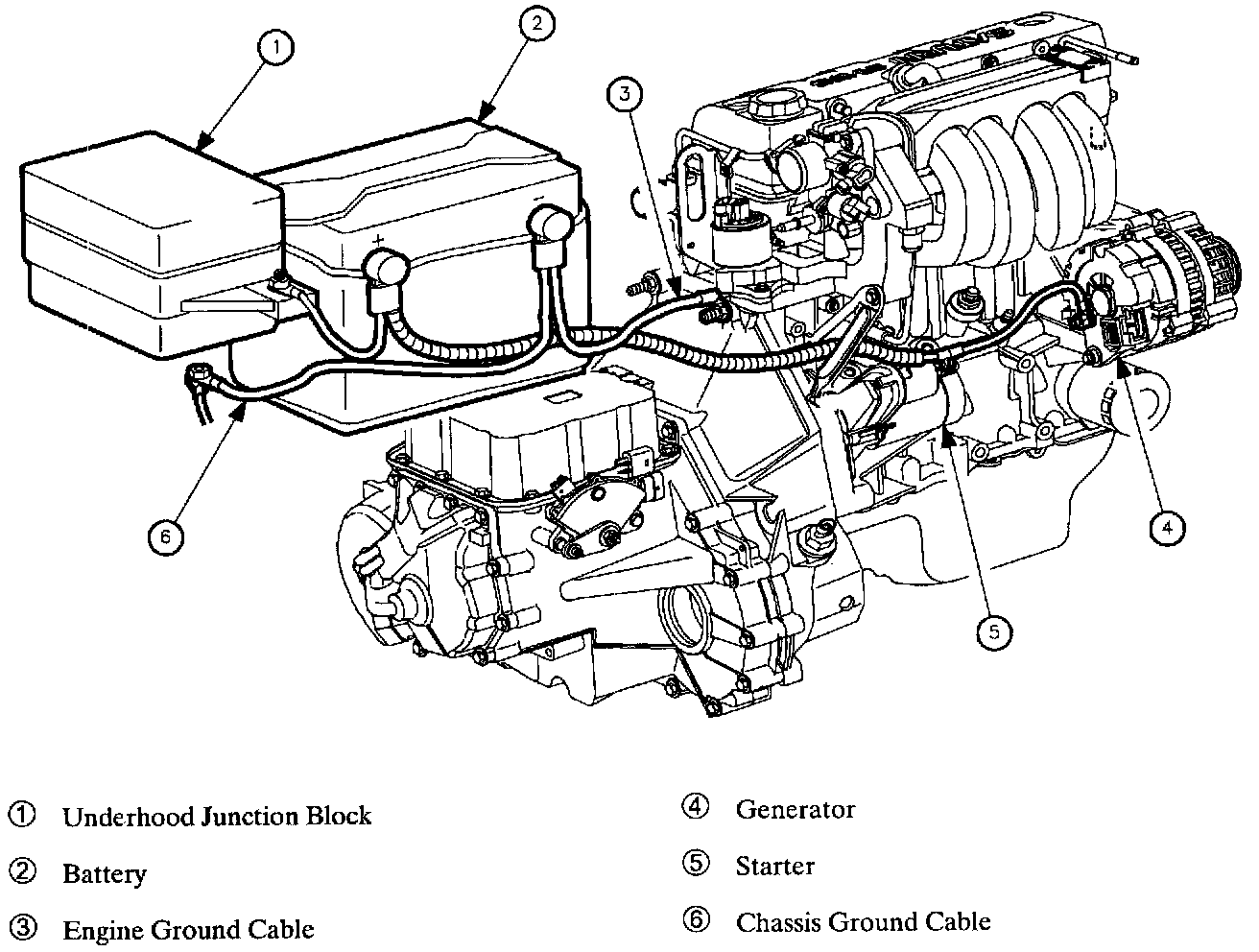

Battery System Component Location:




Generator:




Starter:

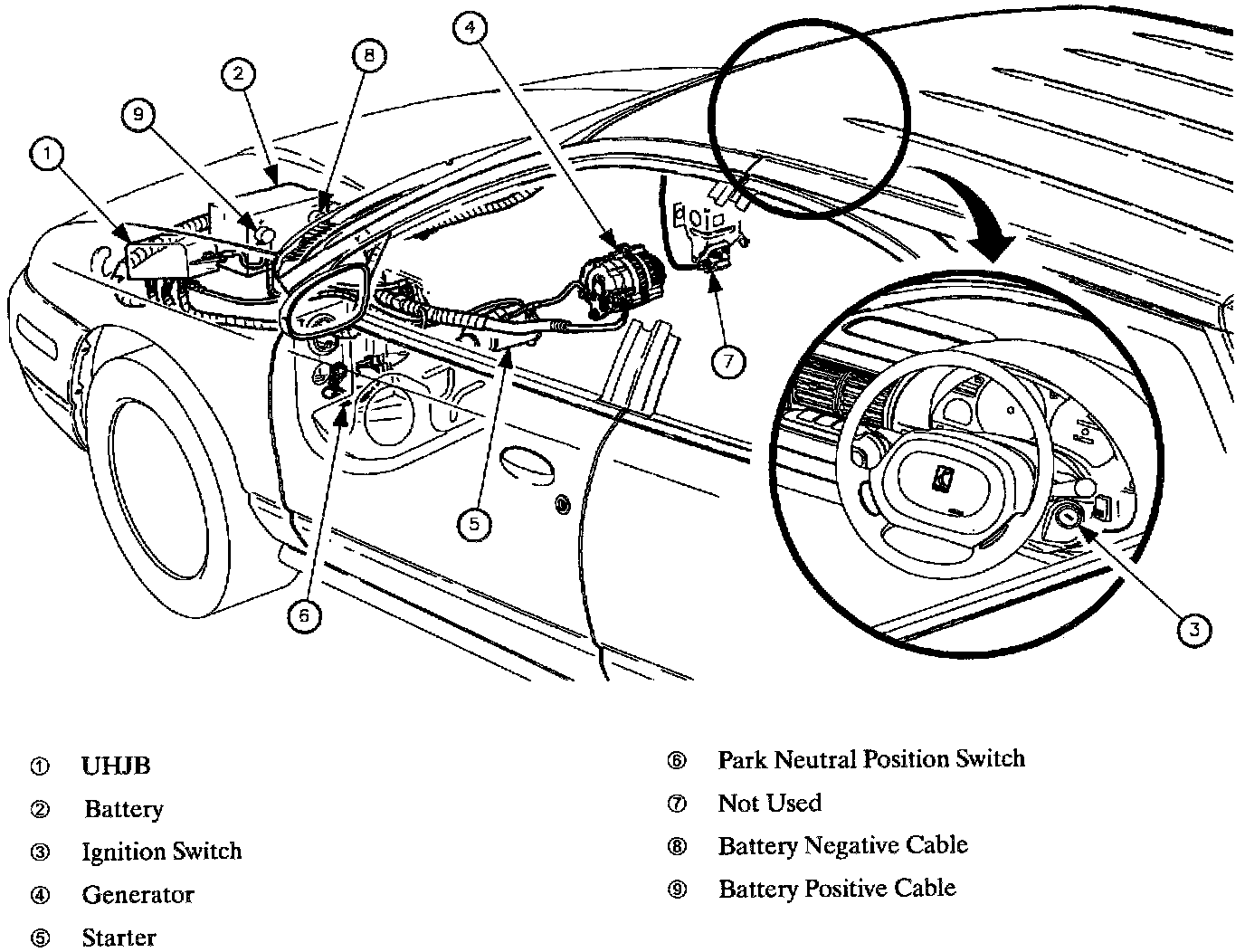

Instrument Cluster Telltales And Signal Inputs Component Location:




Instrument Cluster Telltales And Signal Inputs Component Location:
