Powertrain Control Module (PCM)

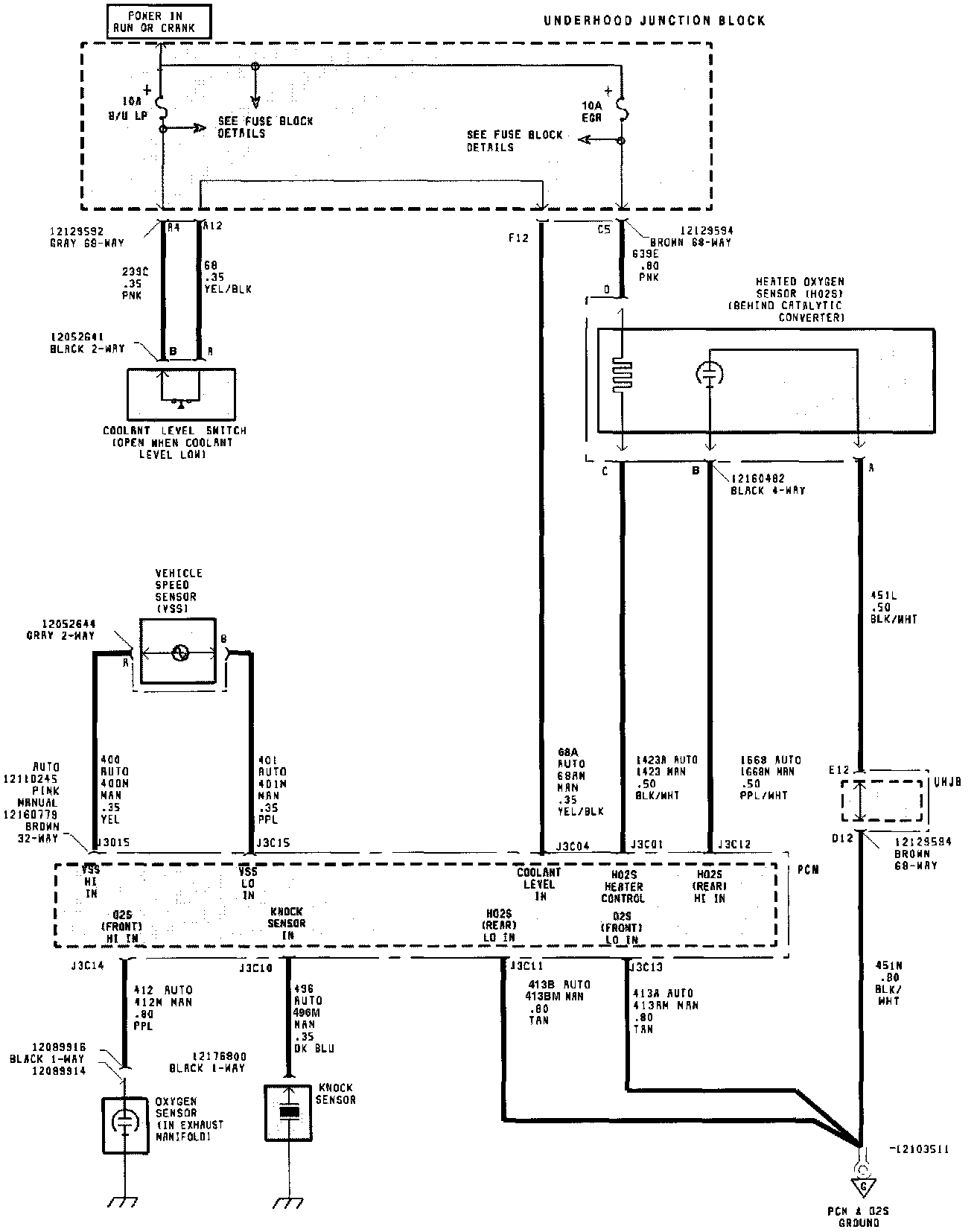

Fuel Injection: PCM:

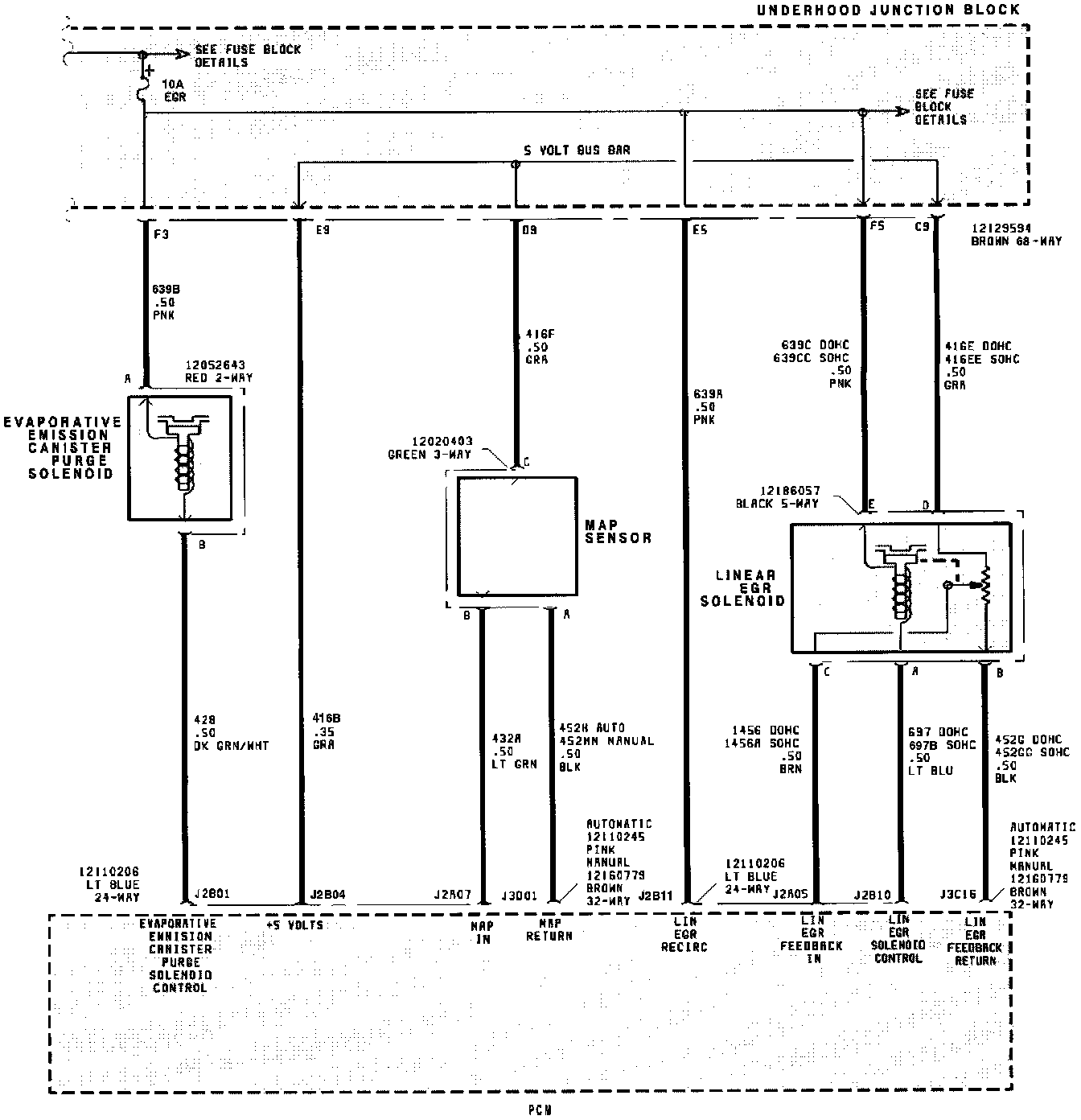

Fuel Injection: PCM:

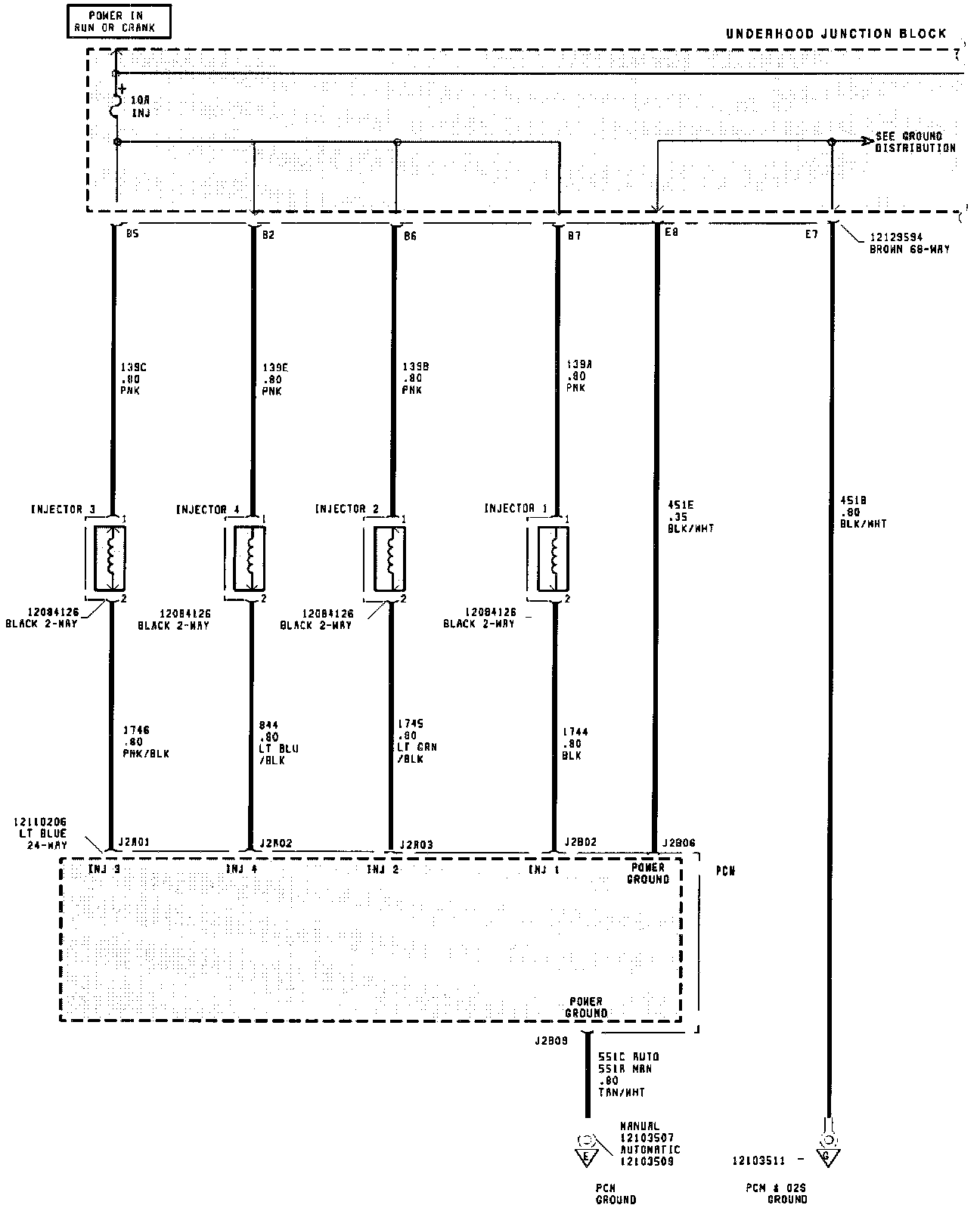

Fuel Injection: PCM:

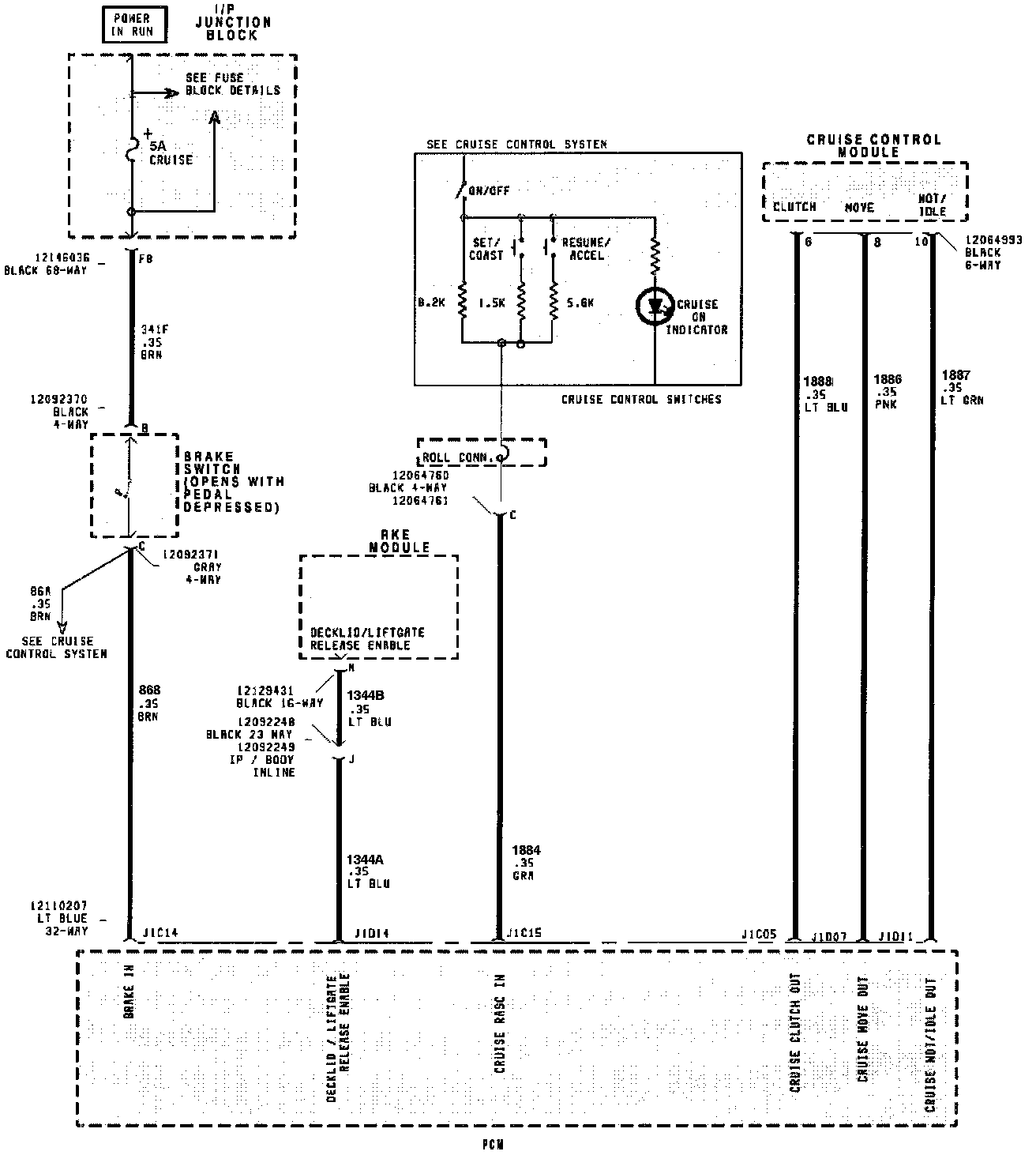

Fuel Injection: PCM:

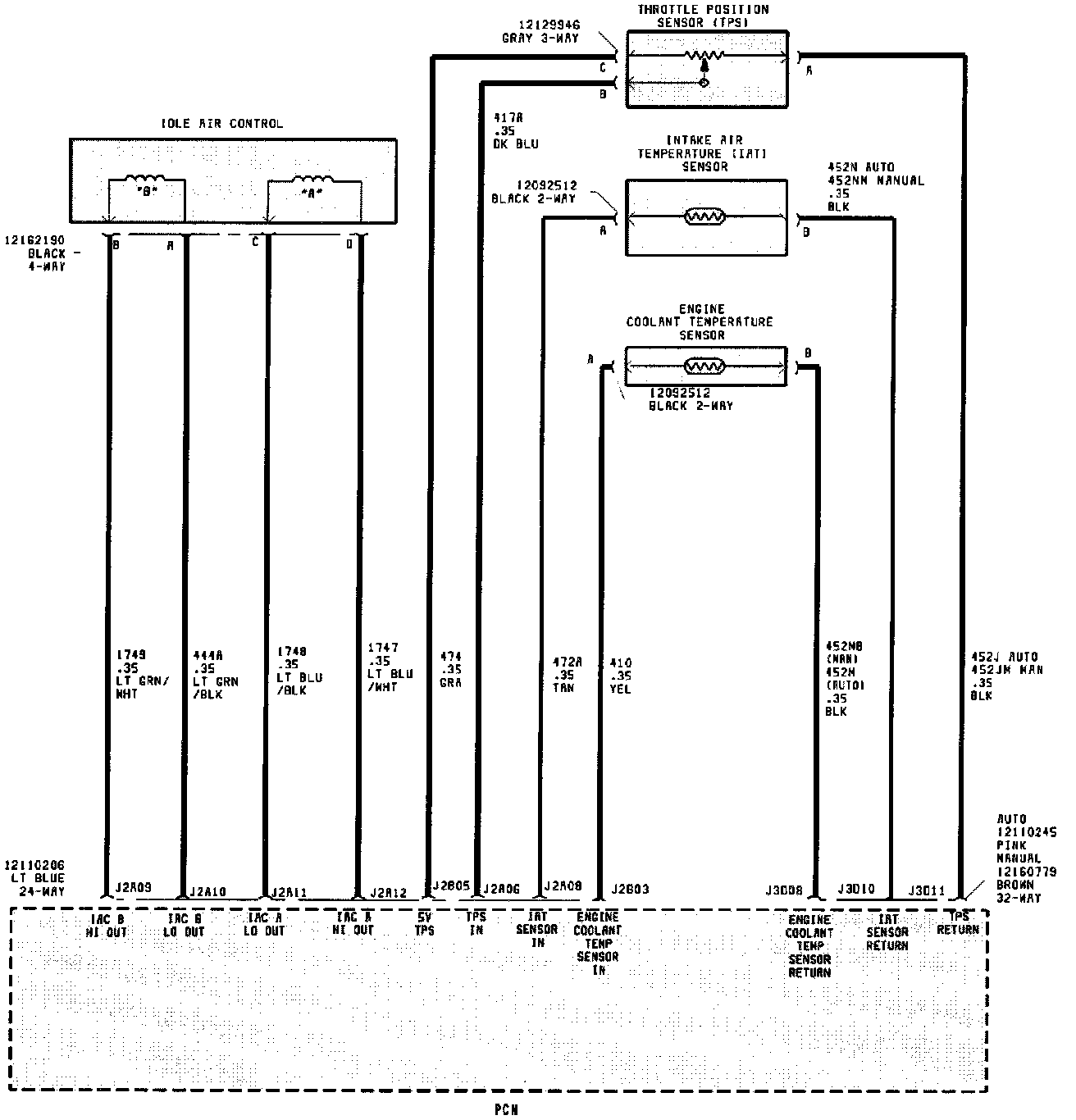

Fuel Injection: PCM:
