Home >> Saturn >> 1998 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Fuse Block >> Instrument Panel Junction Block (IPJB)

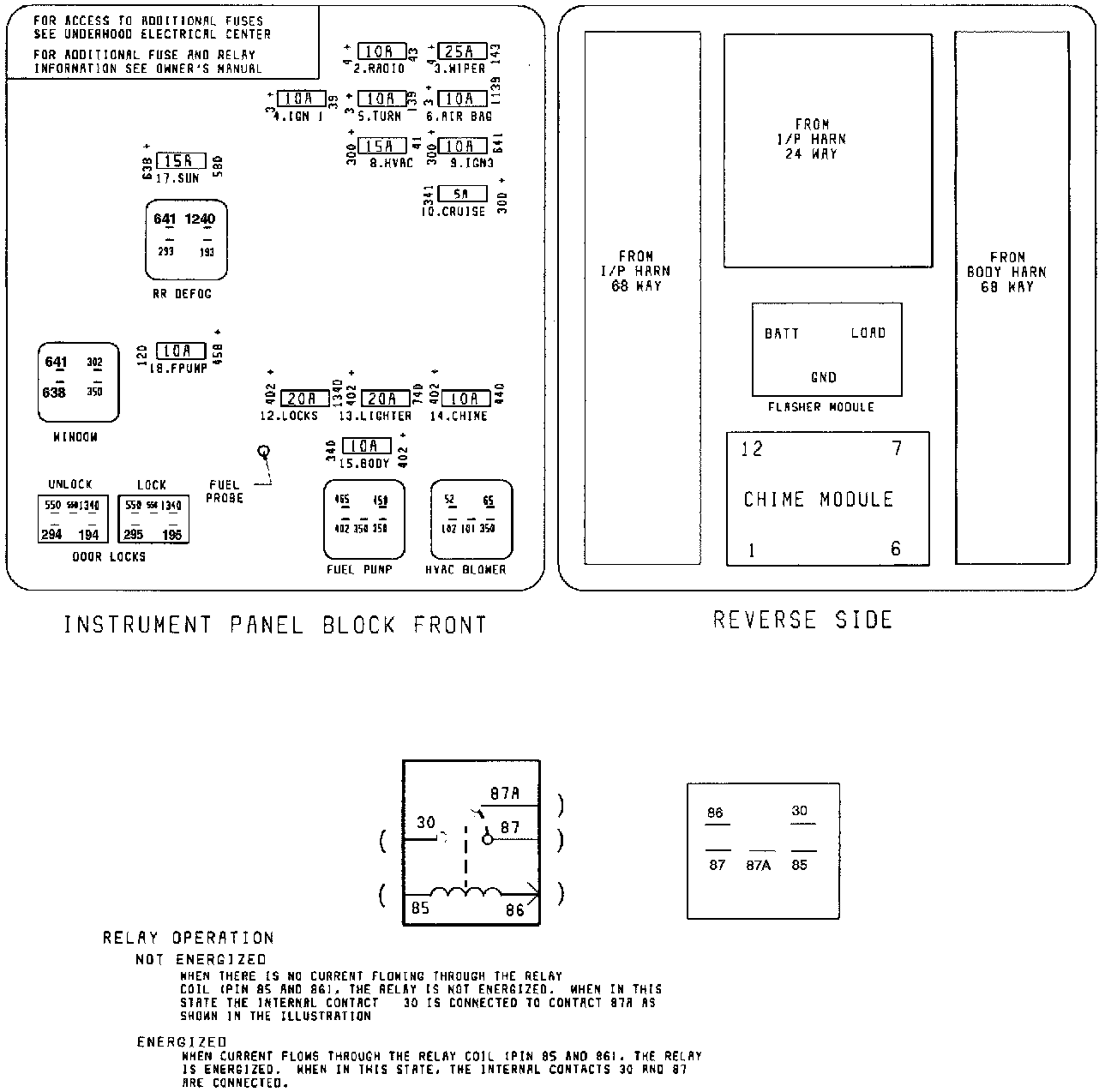

Instrument Panel Junction Block (IPJB)

Instrument Panel Junction Block (IPJB):

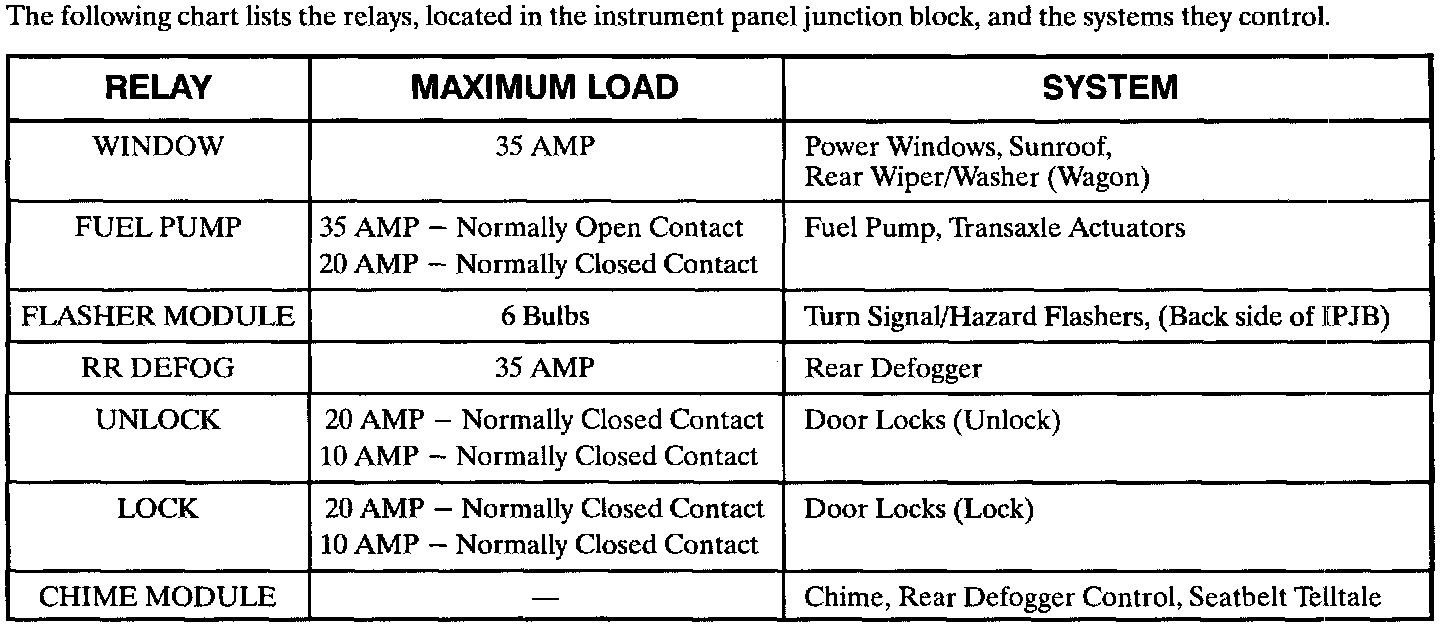

Instrument Panel Junction Block (IPJB): Relay/Module Circuit Feeds:
