Home >> Saturn >> 1998 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Park/Neutral Position Switch

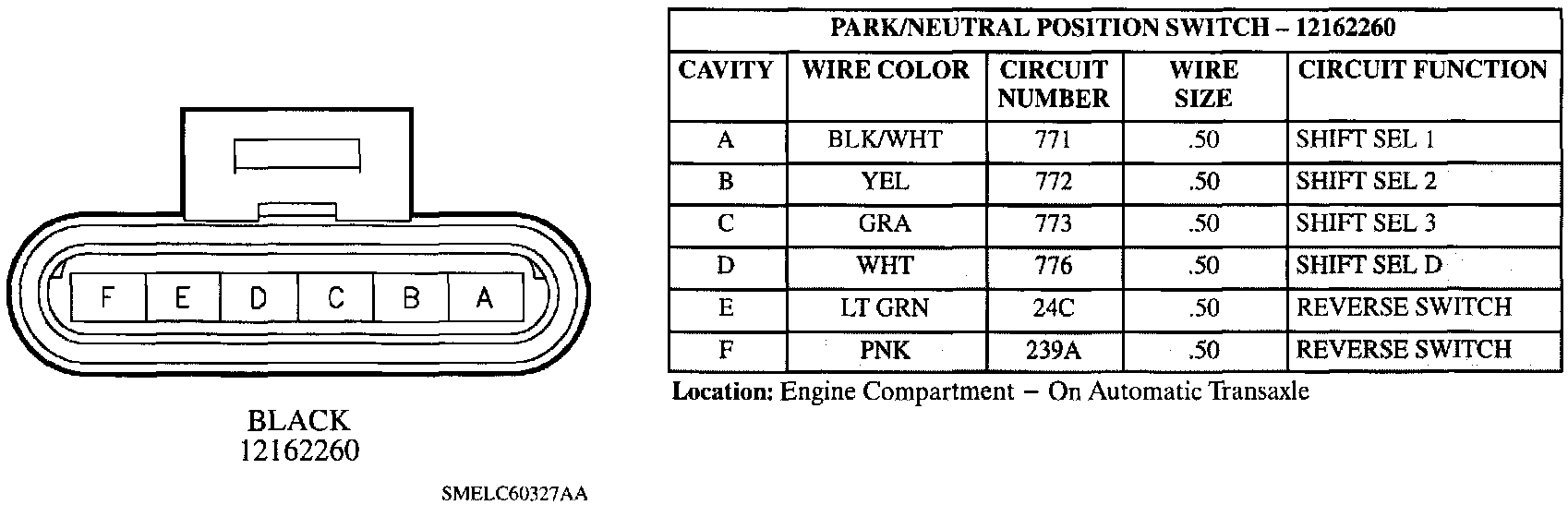

Park/Neutral Position Switch

Park/Neutral Position Switch:



Park/Neutral Position Switch:



Park/Neutral Position Switch:
