LEMON Manuals: Even more car manuals for everyone
Home >> Saturn >> 1998 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram >> Range Selection Components

Range Selection Components

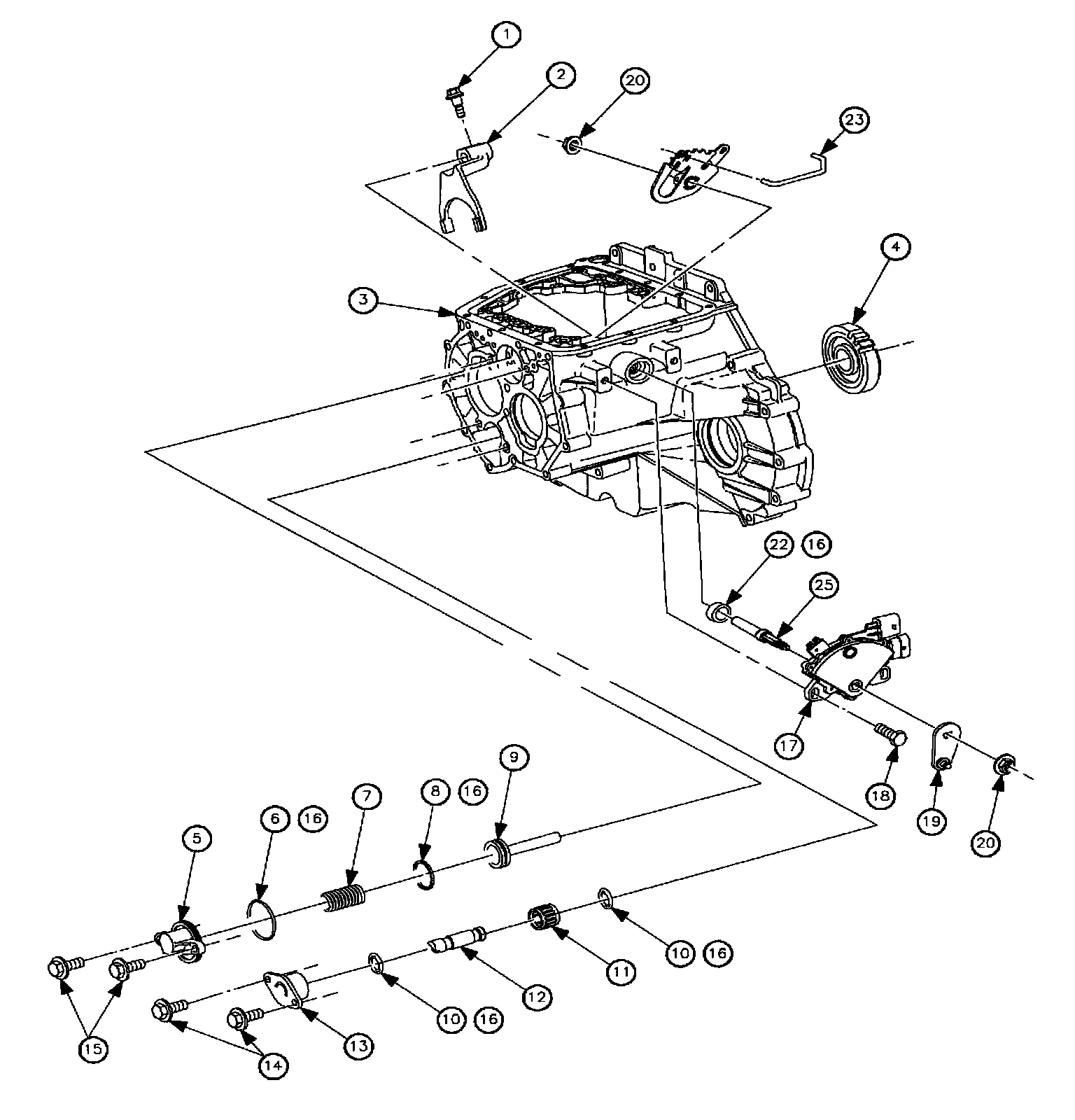

Part 1 Of 2:

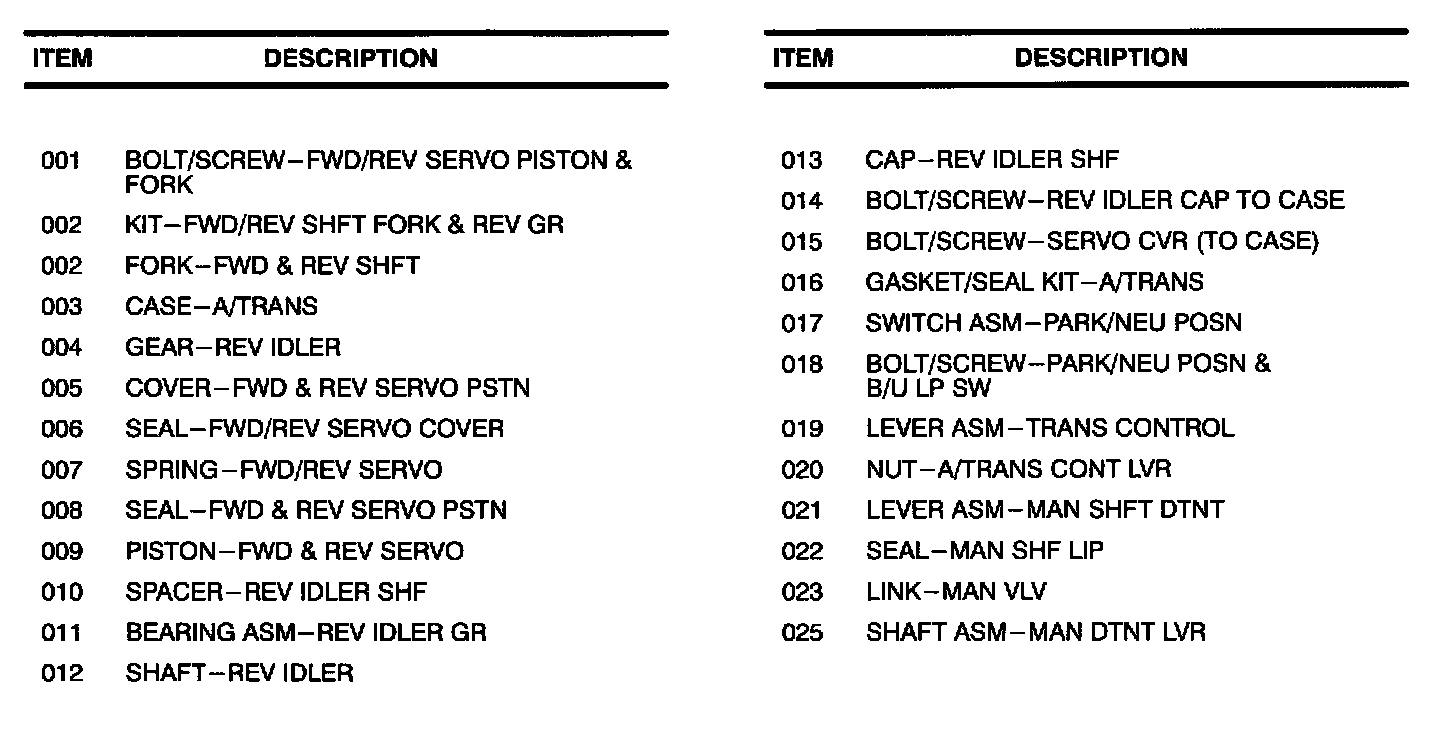

Part 2 Of 2:
