Home >> Saturn >> 1997 >> SW1 L4-1.9L SOHC VIN 8 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windows >> Power Window Switch

Power Window Switch

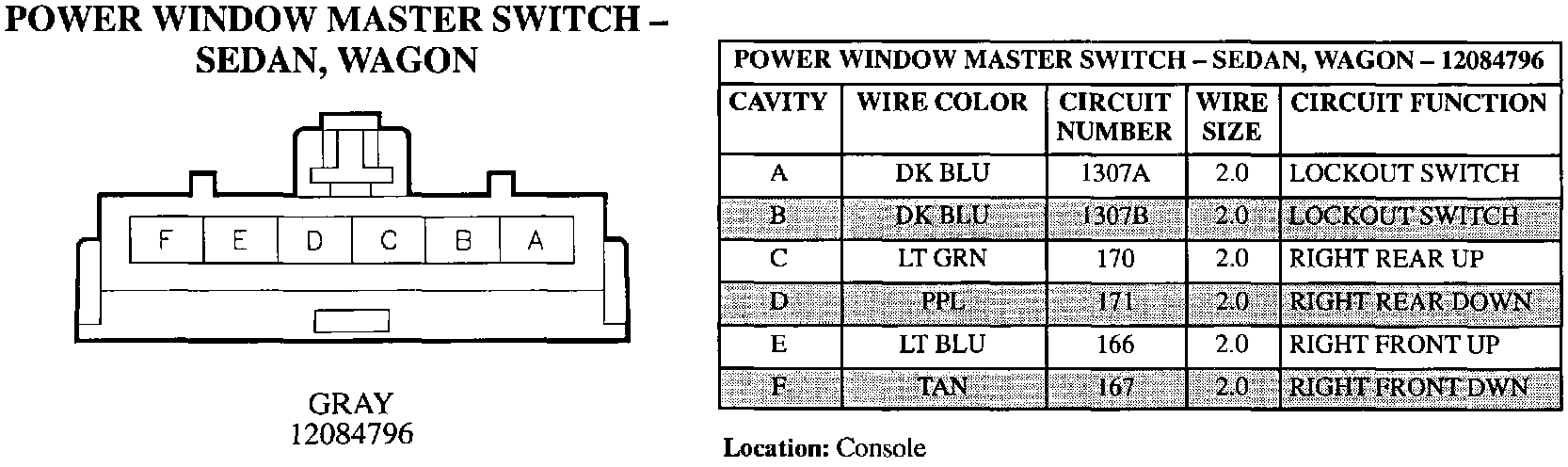

Power Window Master Switch:

Power Window Master Switch:

Rear Door Window Switches:
