Pod Switches (Fog Lamp/Traction/Rear Defog Switch)

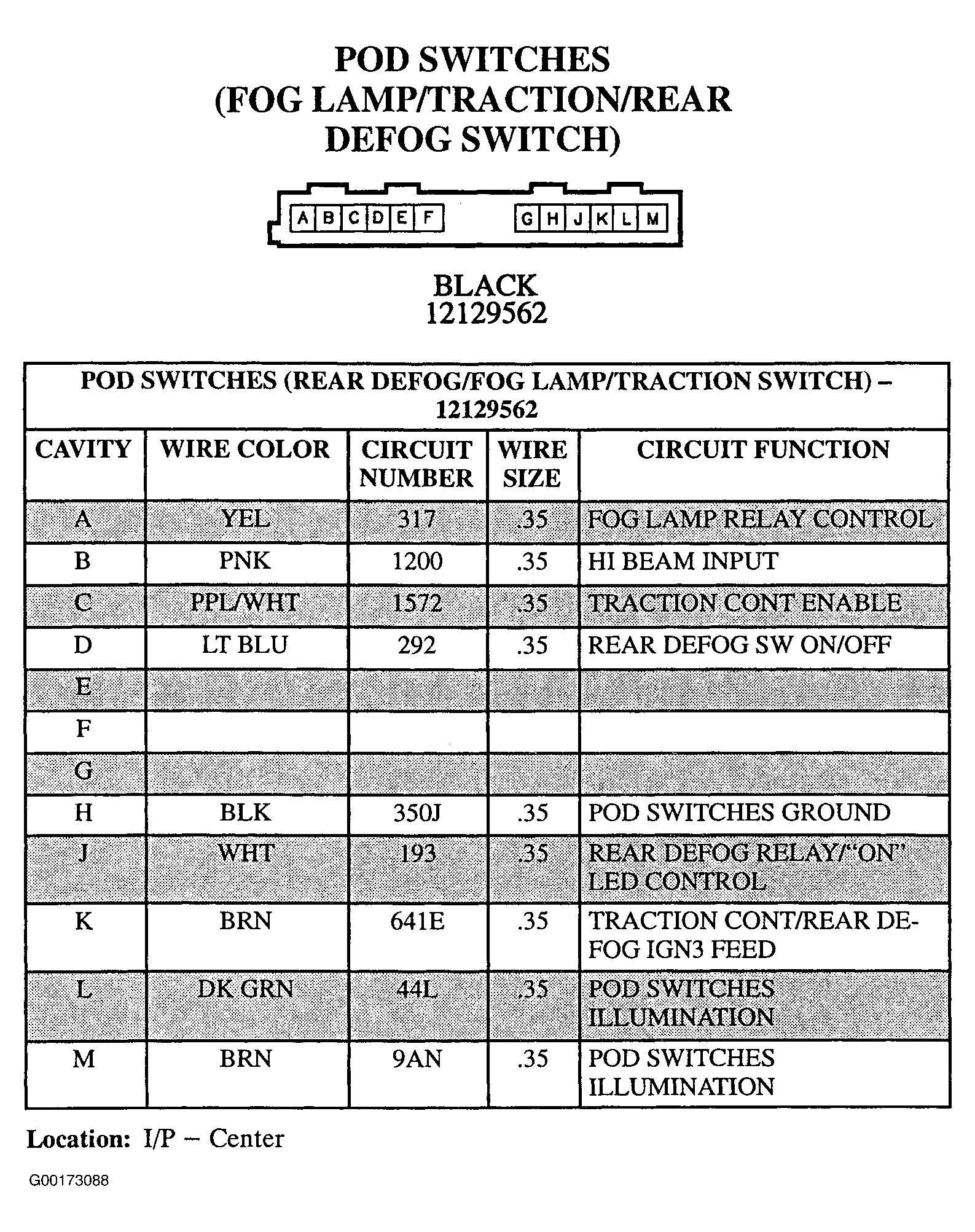

Fig 1: POD Switches (Fog Lamp/Traction/Rear Defog Switch) - 12-Pin Connector (12129562) - Black

G00173088

Courtesy of GENERAL MOTORS CORP.
