Home >> Saturn >> 1996 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Engine Control Module >> Diagrams >> Connector Views >> J2 Connector Pinout

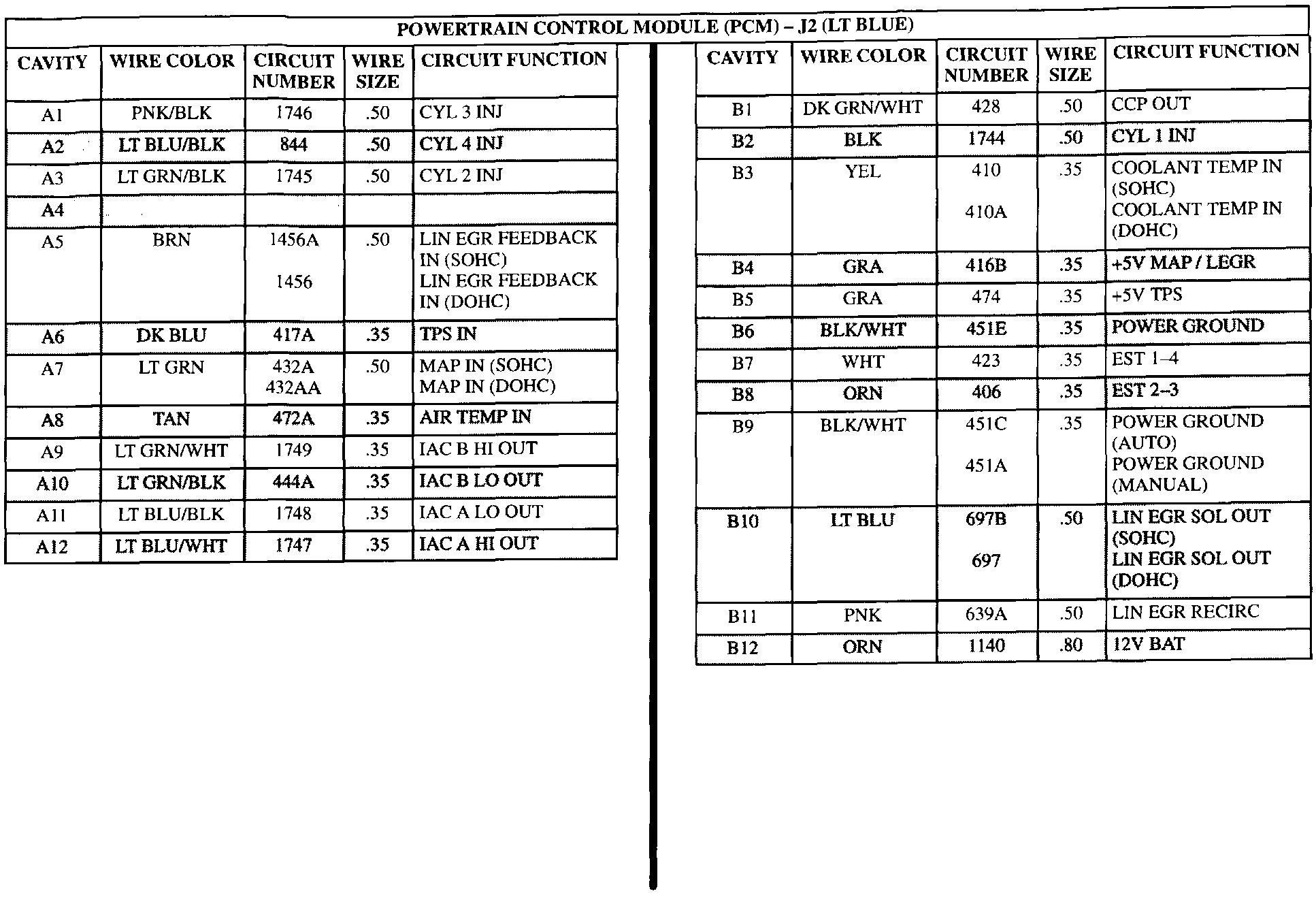

J2 Connector Pinout

Powertrain Control Module (PCM) - J2 (LT BLU):



Powertrain Control Module (PCM) - J2 (LT BLU):
