Home >> Saturn >> 1996 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Headlamp Control Module

Headlamp Control Module

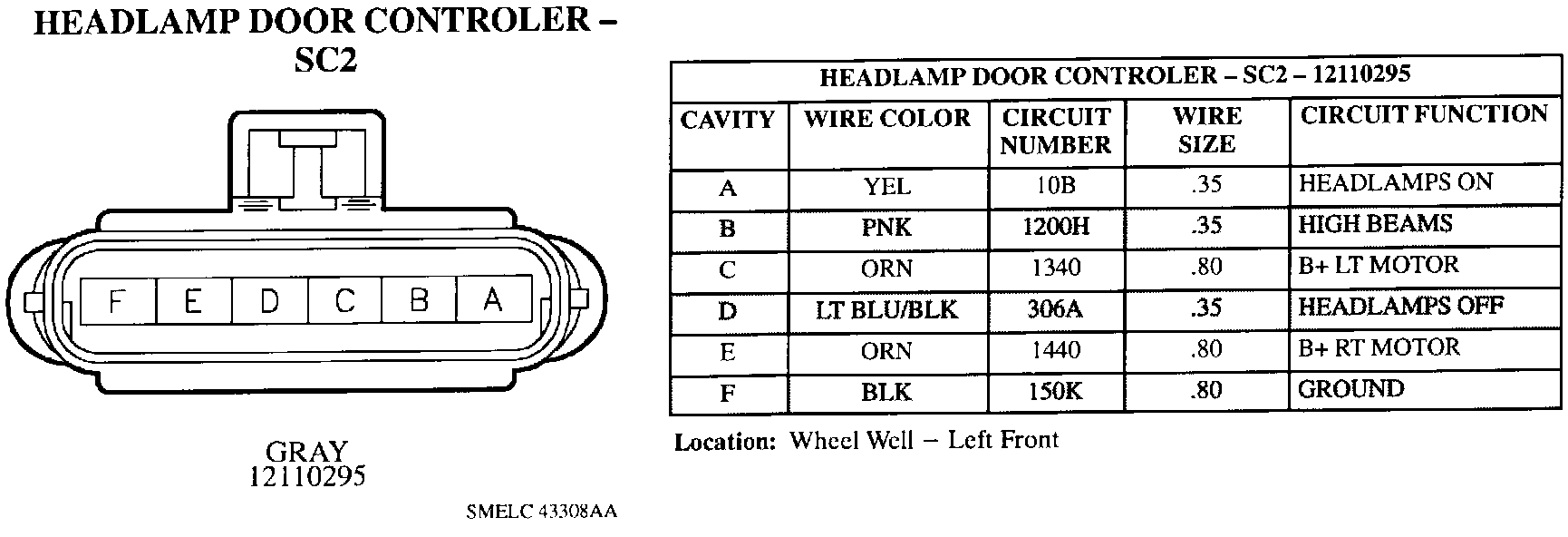

Headlamp Door Controller:

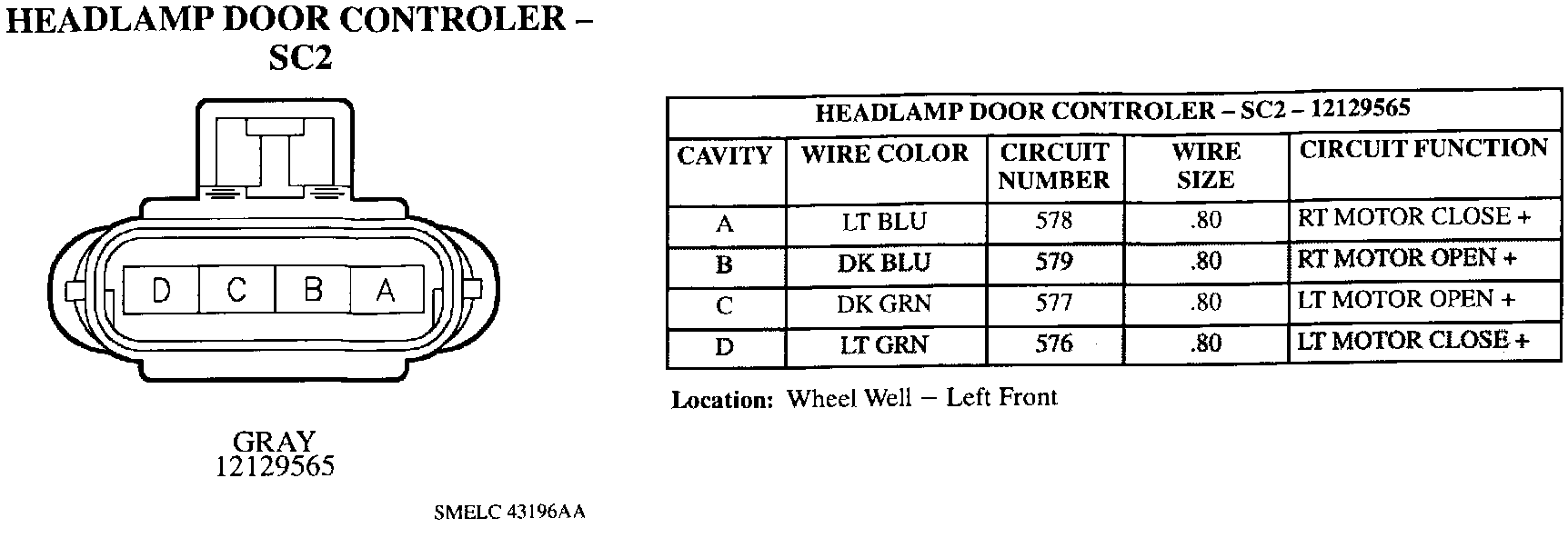

Headlamp Door Controller:
