Home >> Saturn >> 1996 >> SC2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Body and Frame >> Locks >> Keyless Entry >> Keyless Entry Module >> Diagrams

Keyless Entry Module: Diagrams

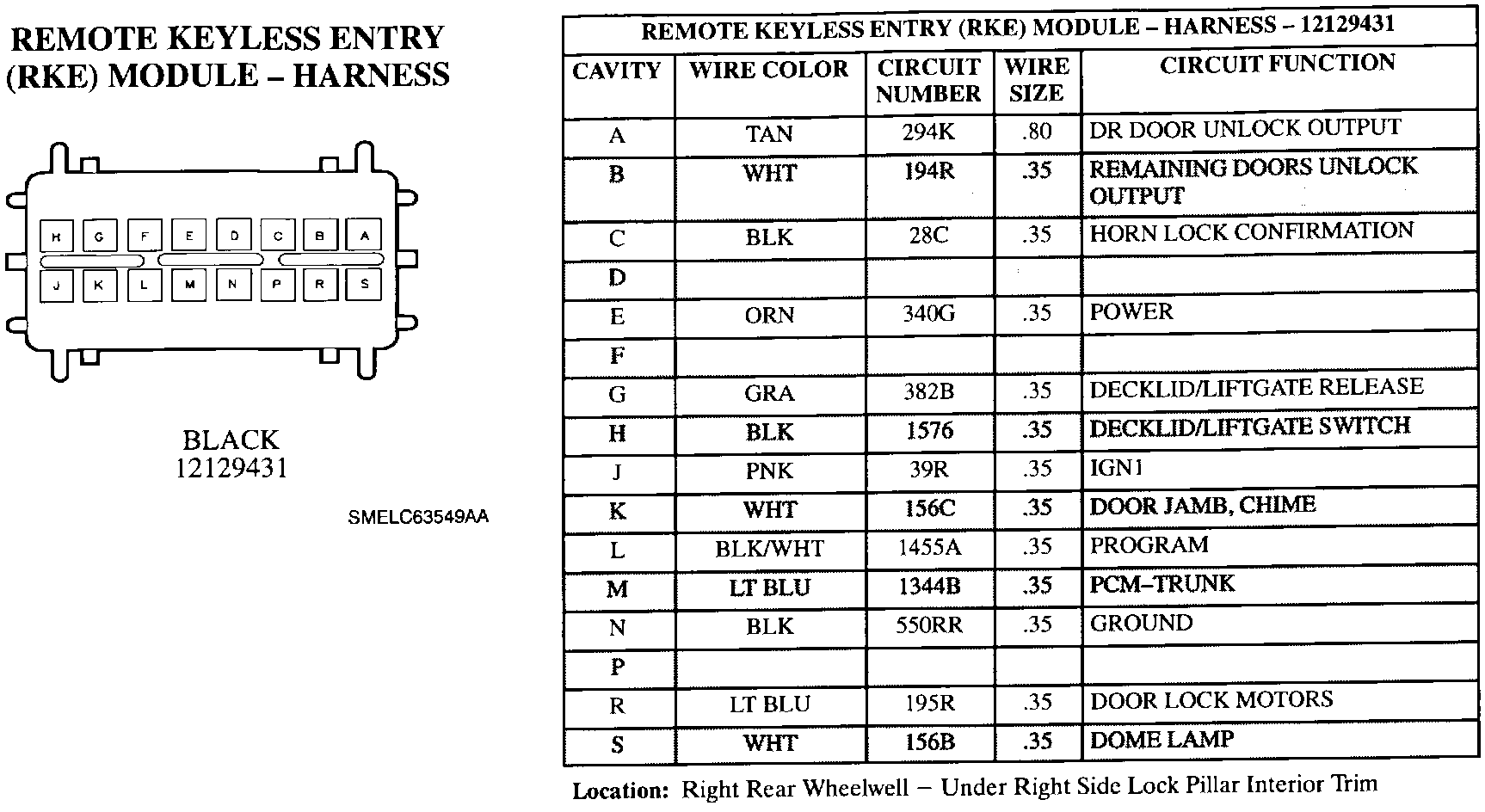

Remote Keyless Entry (RKE) Module - Harness:
