Home >> Saturn >> 1993 >> SC L4-1.9L SOHC VIN 9 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seat Belt Control Module

Seat Belt Control Module

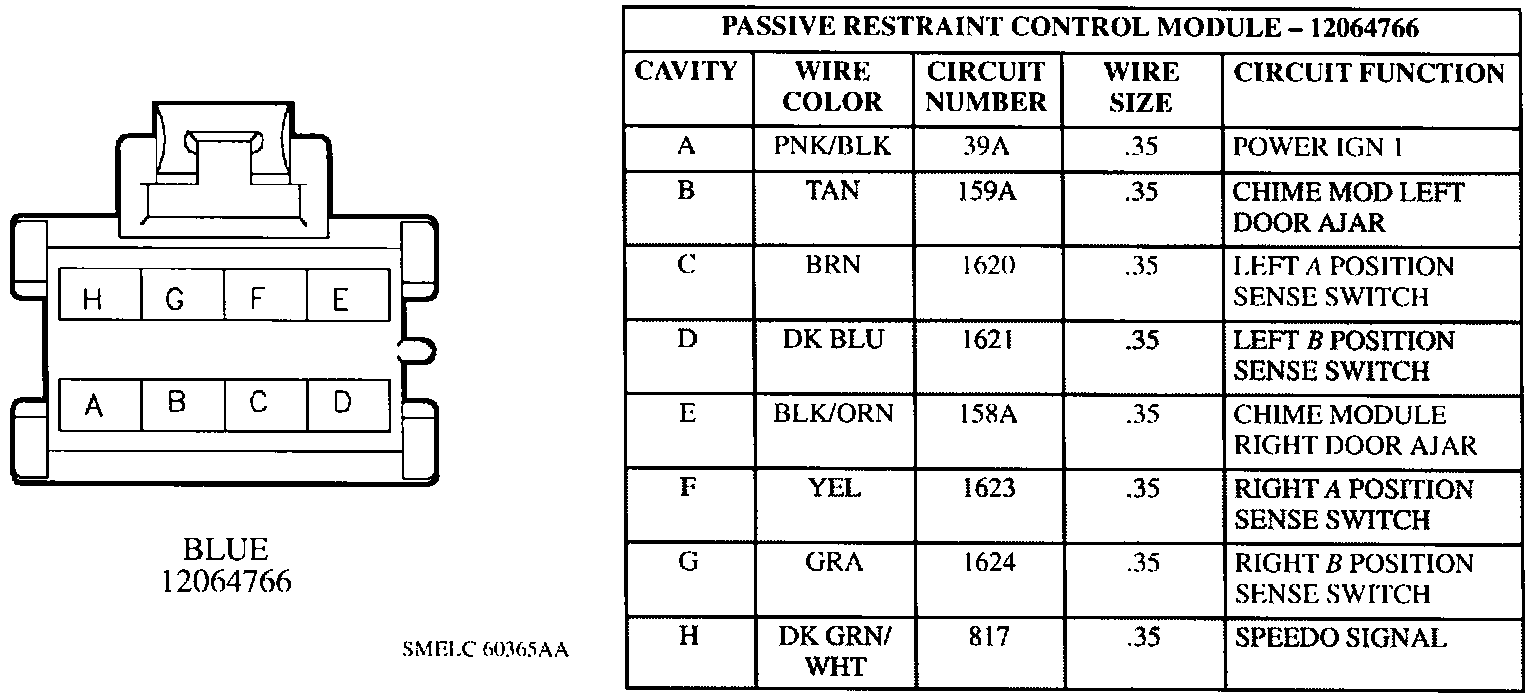

Passive Restraint Control Module Connectors:

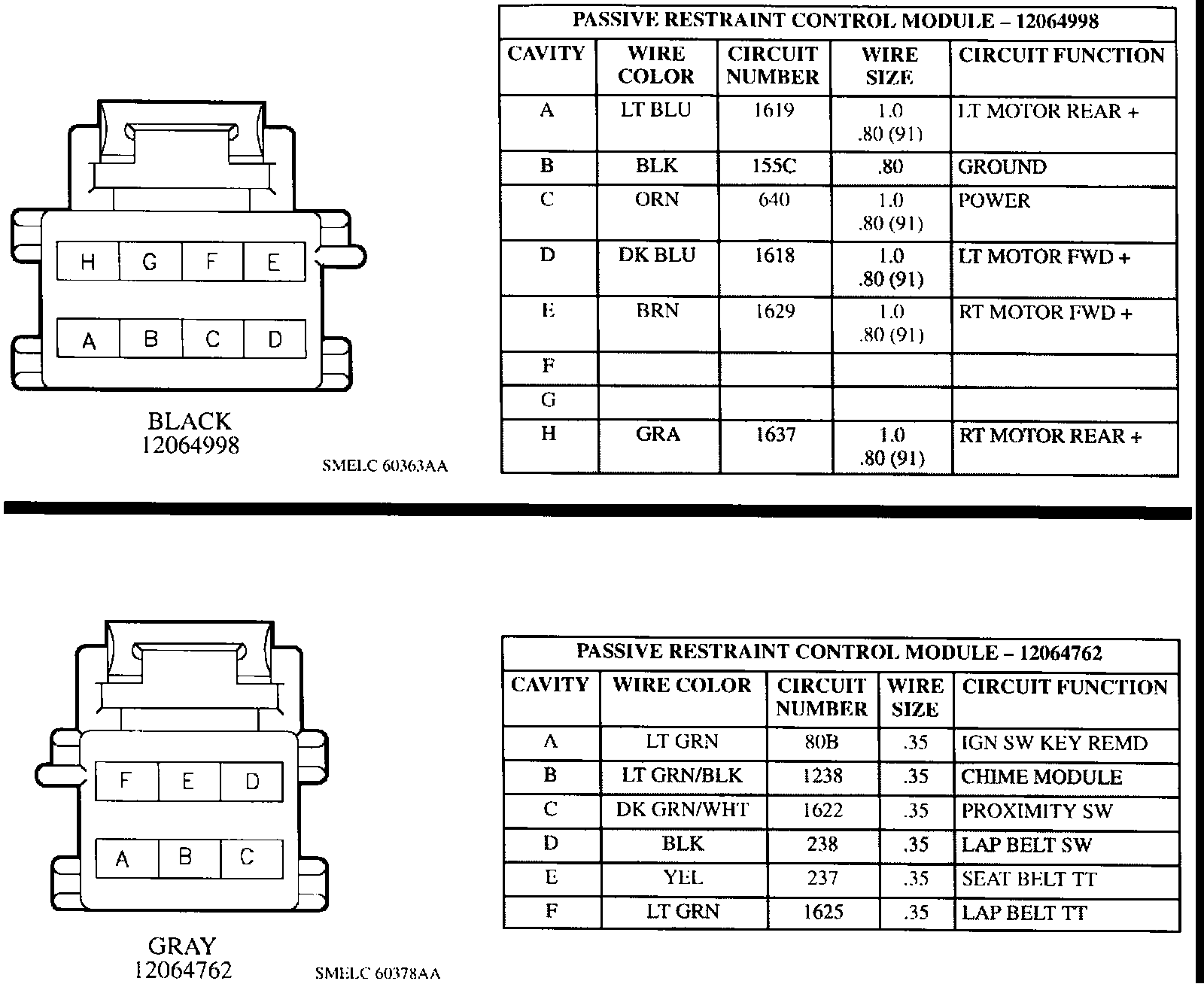

Passive Restraint Control Module Connector:
