Home >> Saturn >> 1992 >> SC L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windows >> Power Window Switch >> Except Master Switch

Except Master Switch

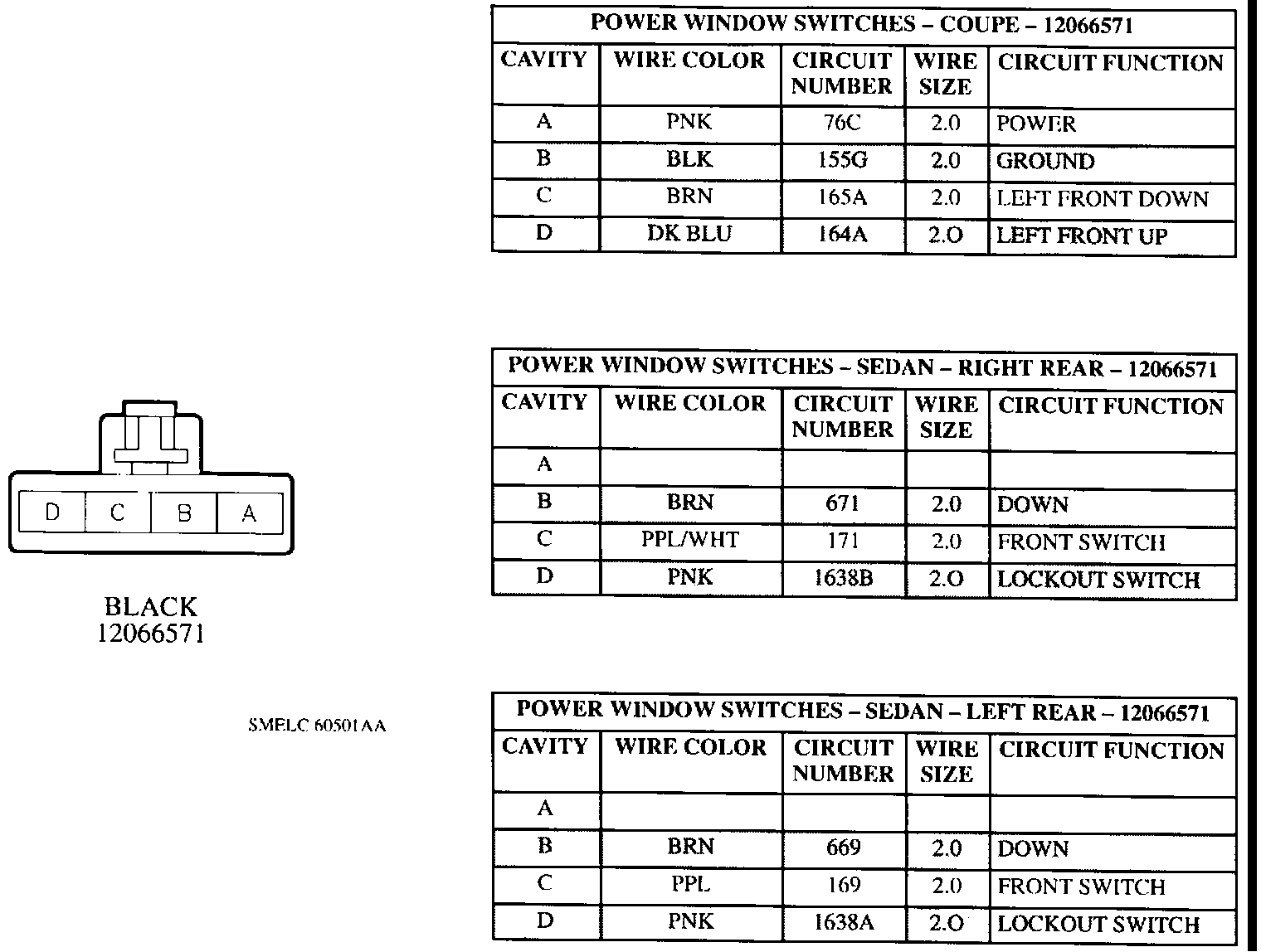

Power Window Switches Connector:

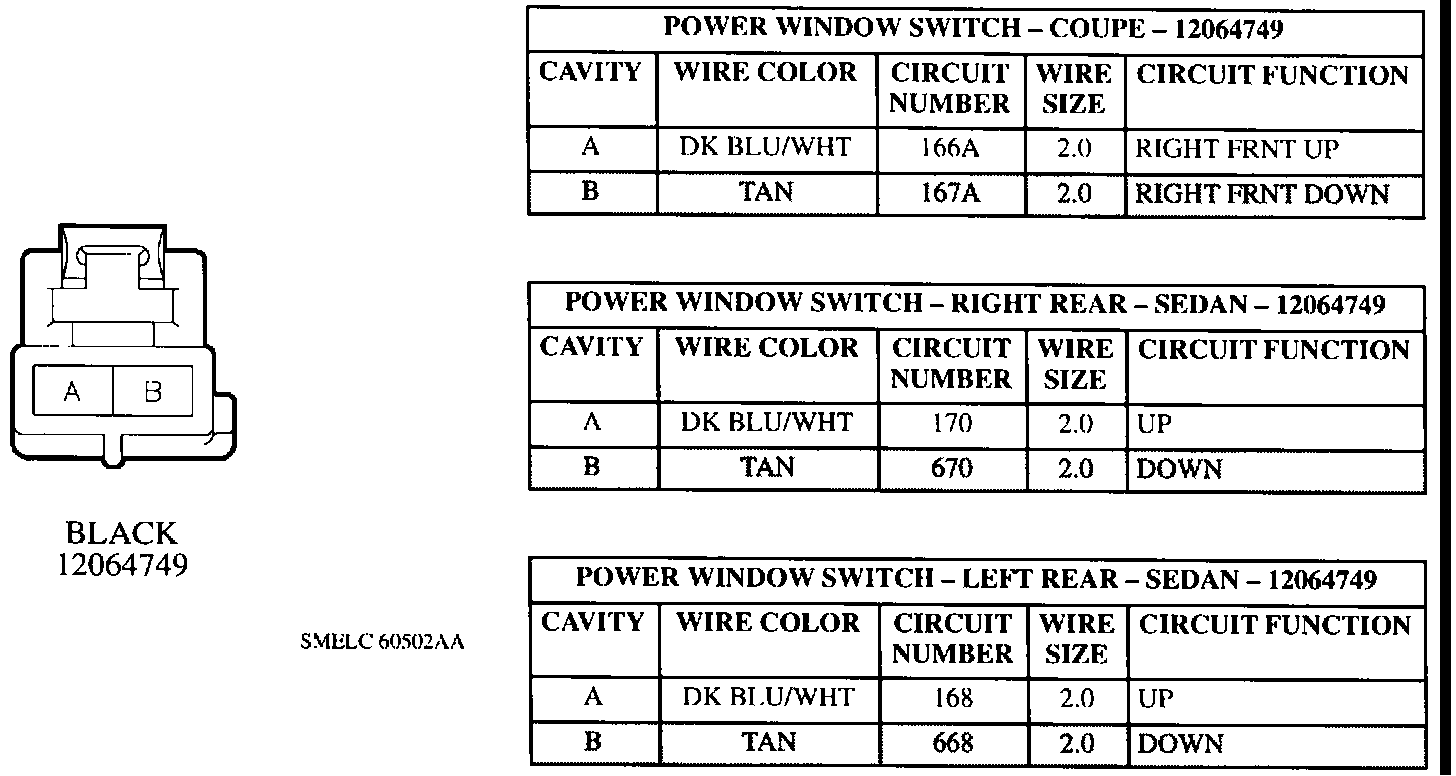

Power Window Switches Connectors:
