Flex Plate

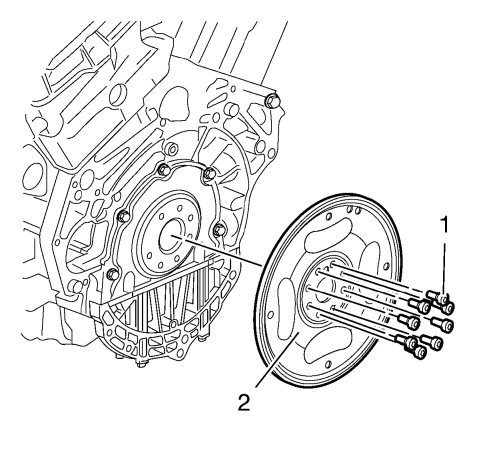

Flex Plate Bolts (1)





First pass 30 Nm (22 lb ft)
Final pass Tighten an additional 45°
