Engine Control Module Replacement

WARNING: This page is about a different car, the 2011 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

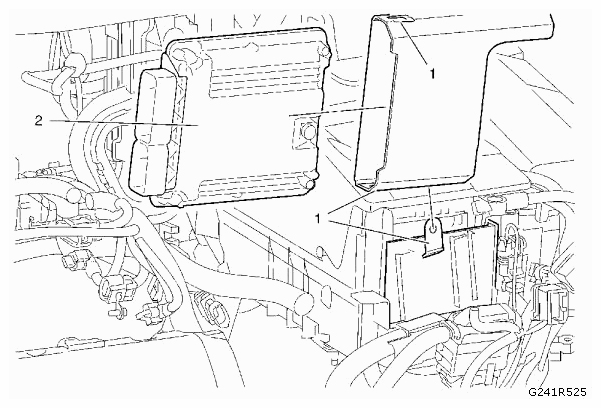

Fig 1: Identifying Engine Control Module And Control Module Retainer

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .
1	Engine Control Module Retainer (Qty: 3) Procedure Disconnect the electrical connector. Pull up the engine control module from the battery box. Open with caution both retainers at the sides and pull the engine control module outside the bracket.
2	Engine Control Module Procedure Refer to CONTROL MODULE REFERENCES for programming and set up of the engine control module.
