Oxygen Sensor: Diagrams




Component Connector End Views

Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1 (5.3L)





Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2 (5.3L)





Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1 (5.3L)

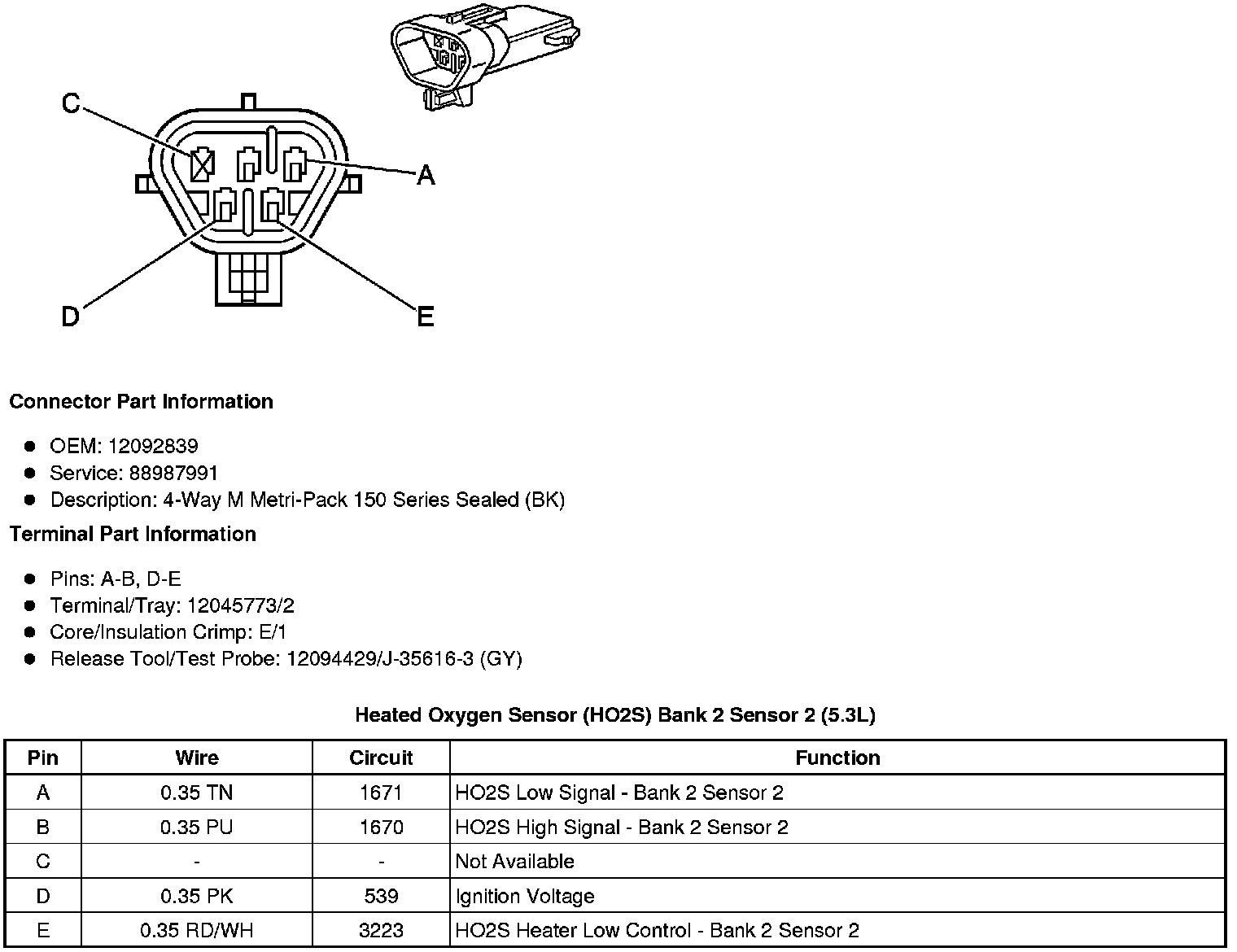

Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2 (5.3L)
