Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Power Window Switch >> Diagrams

Power Window Switch: Diagrams




Component Connector End Views

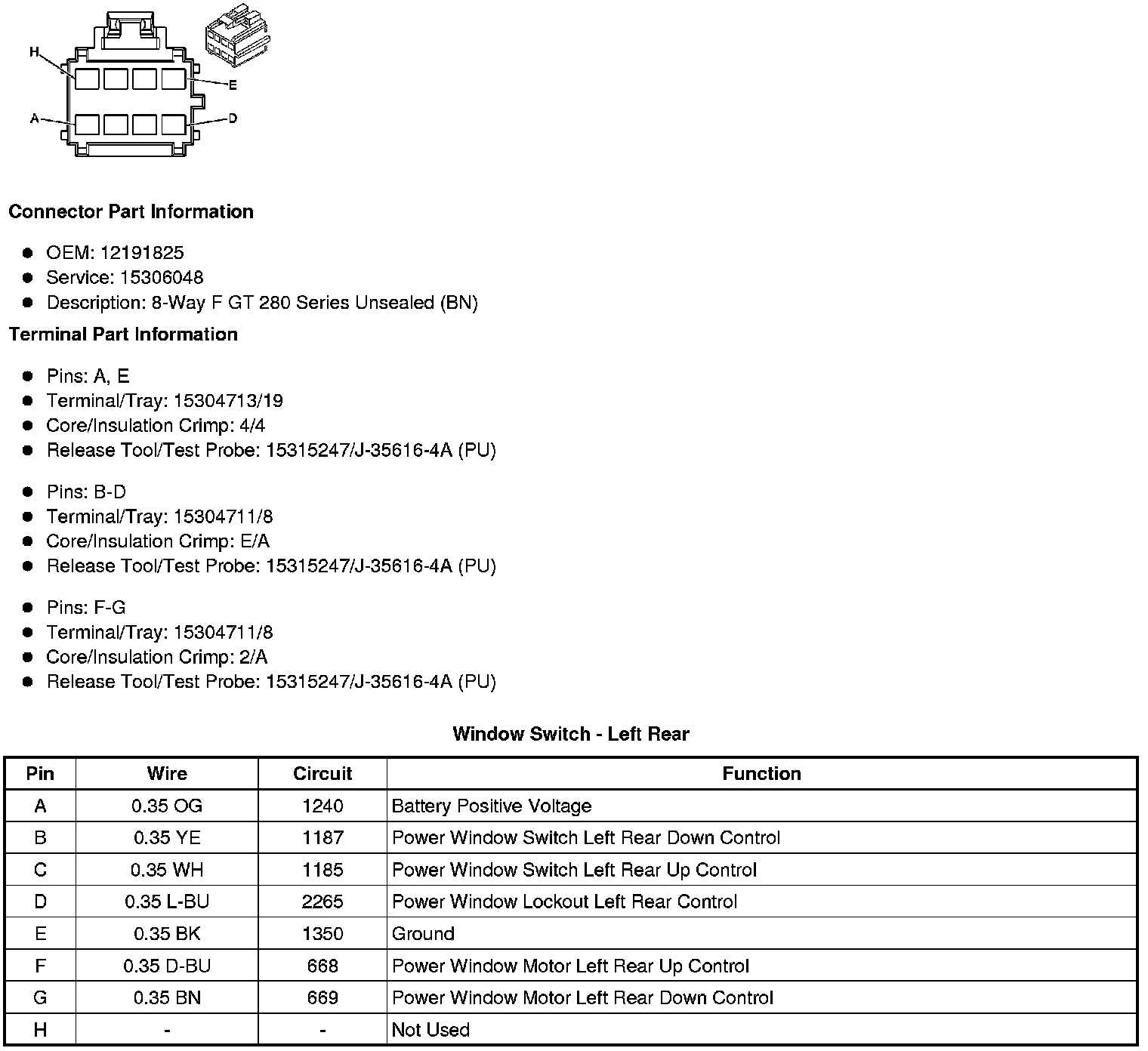

Window Switch - Left Rear

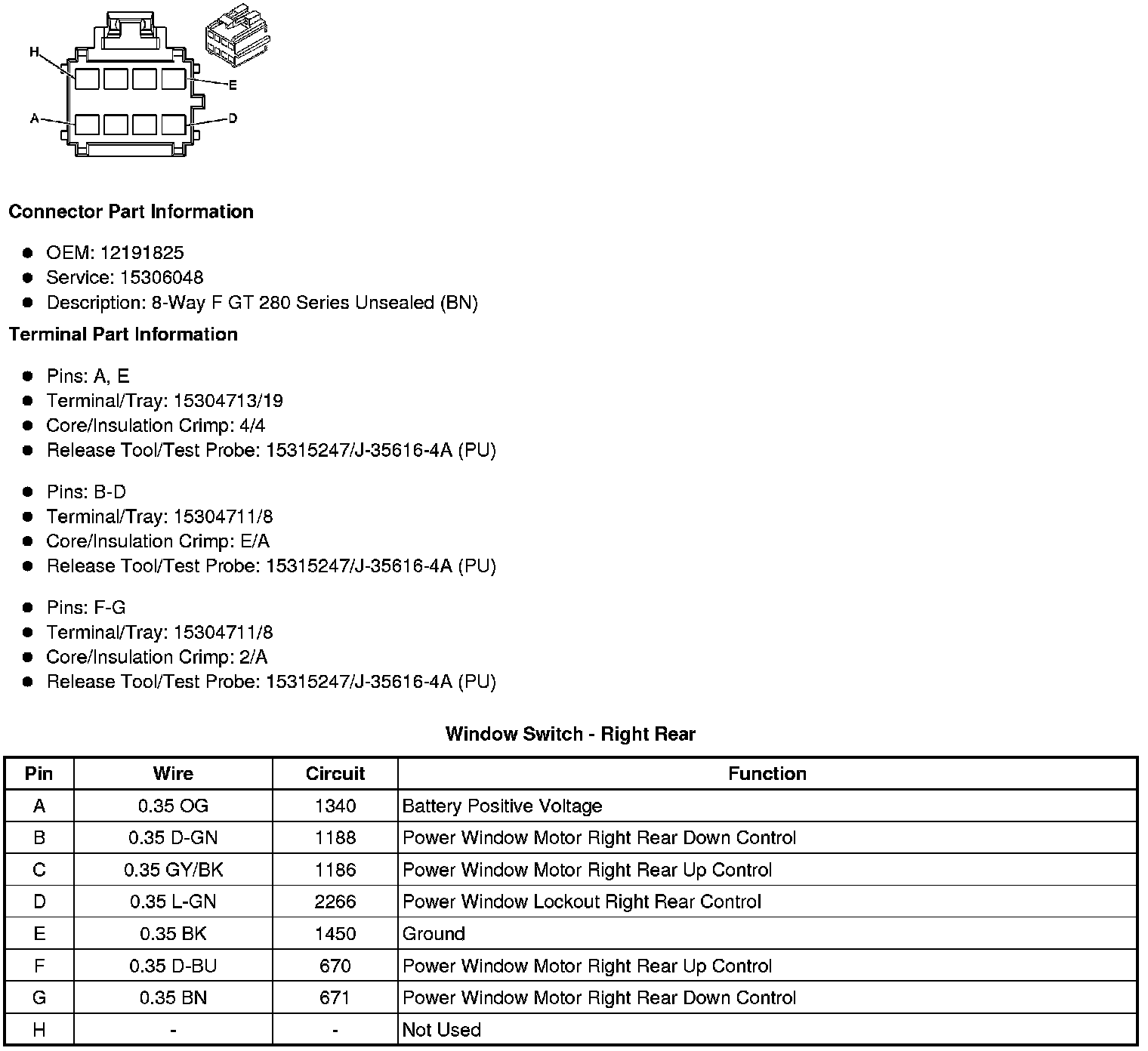

Window Switch - Right Rear
