Flex Plate

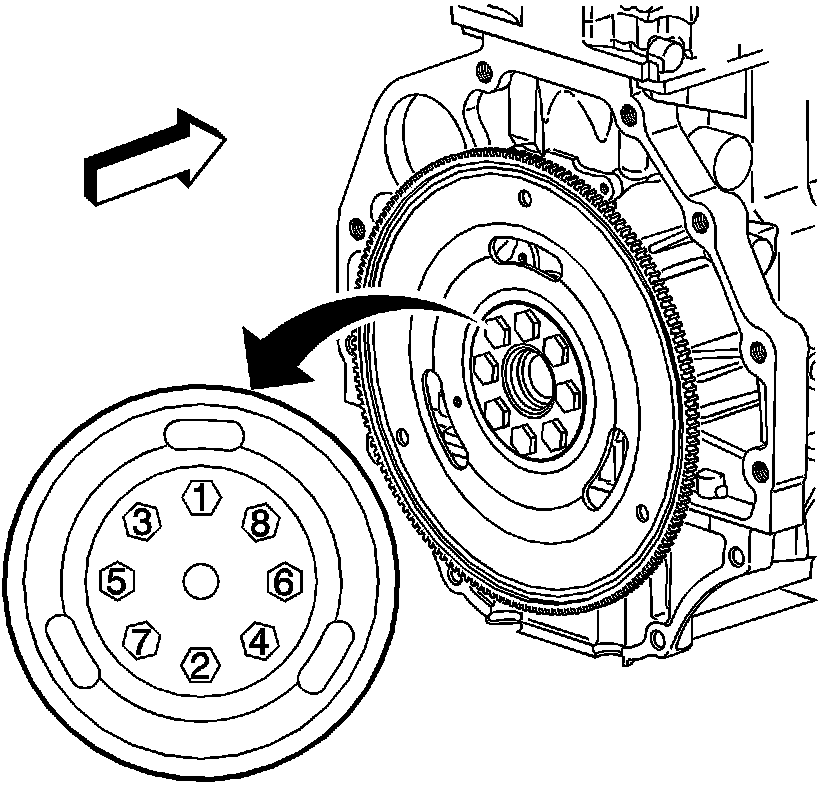

FLYWHEEL/FLEXPLATE

Engine Flywheel Bolt
First Pass 25 Nm (18 ft. lbs.)
Final Pass 50 degrees
