Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Body and Frame >> Power Trunk / Liftgate Control Module >> Diagrams

Power Trunk / Liftgate Control Module: Diagrams




Component Connector End Views

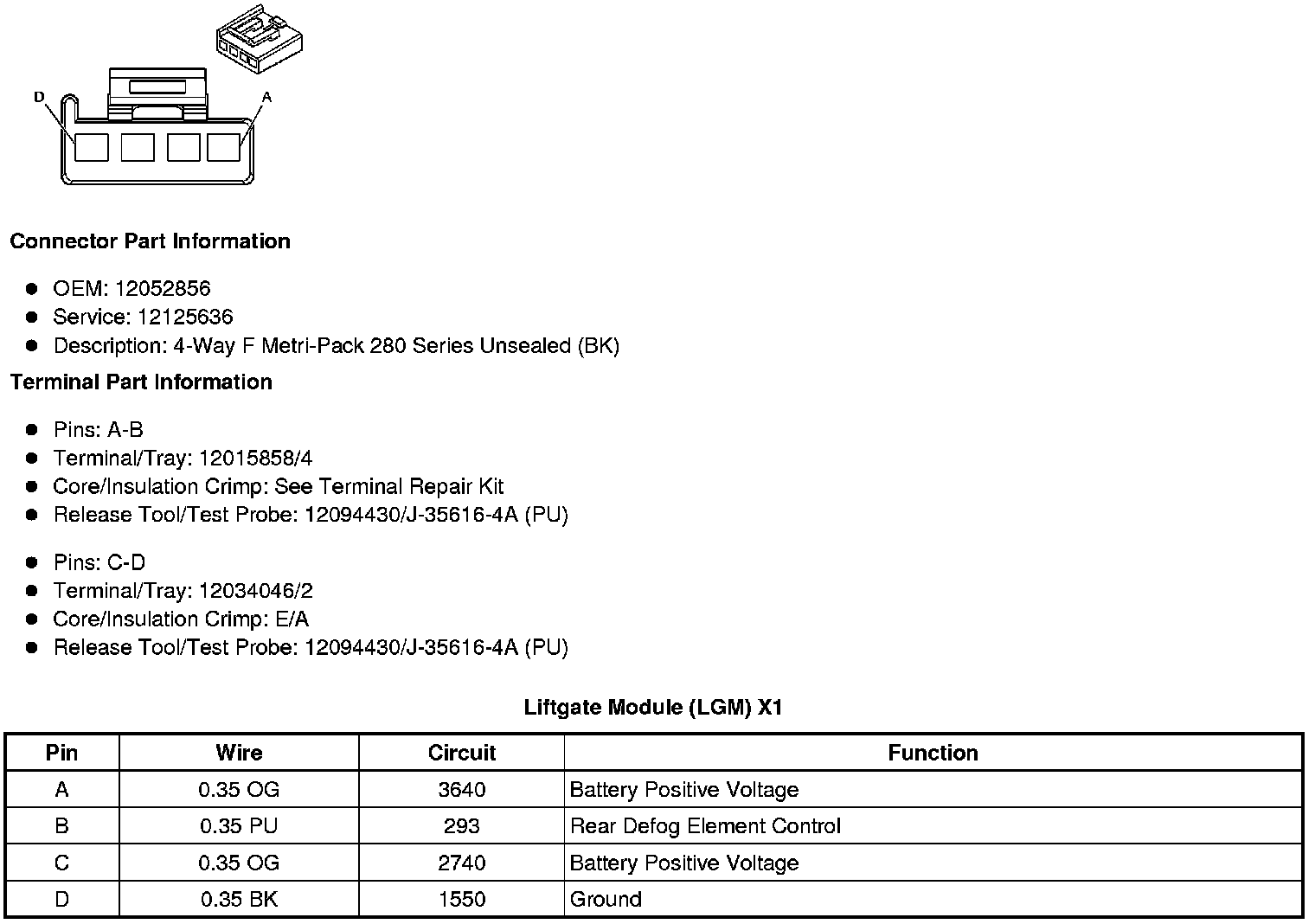

Liftgate Module (LGM) X1





Liftgate Module (LGM) X2





Liftgate Module (LGM) X3
