Camshaft Position Sensor: Diagrams

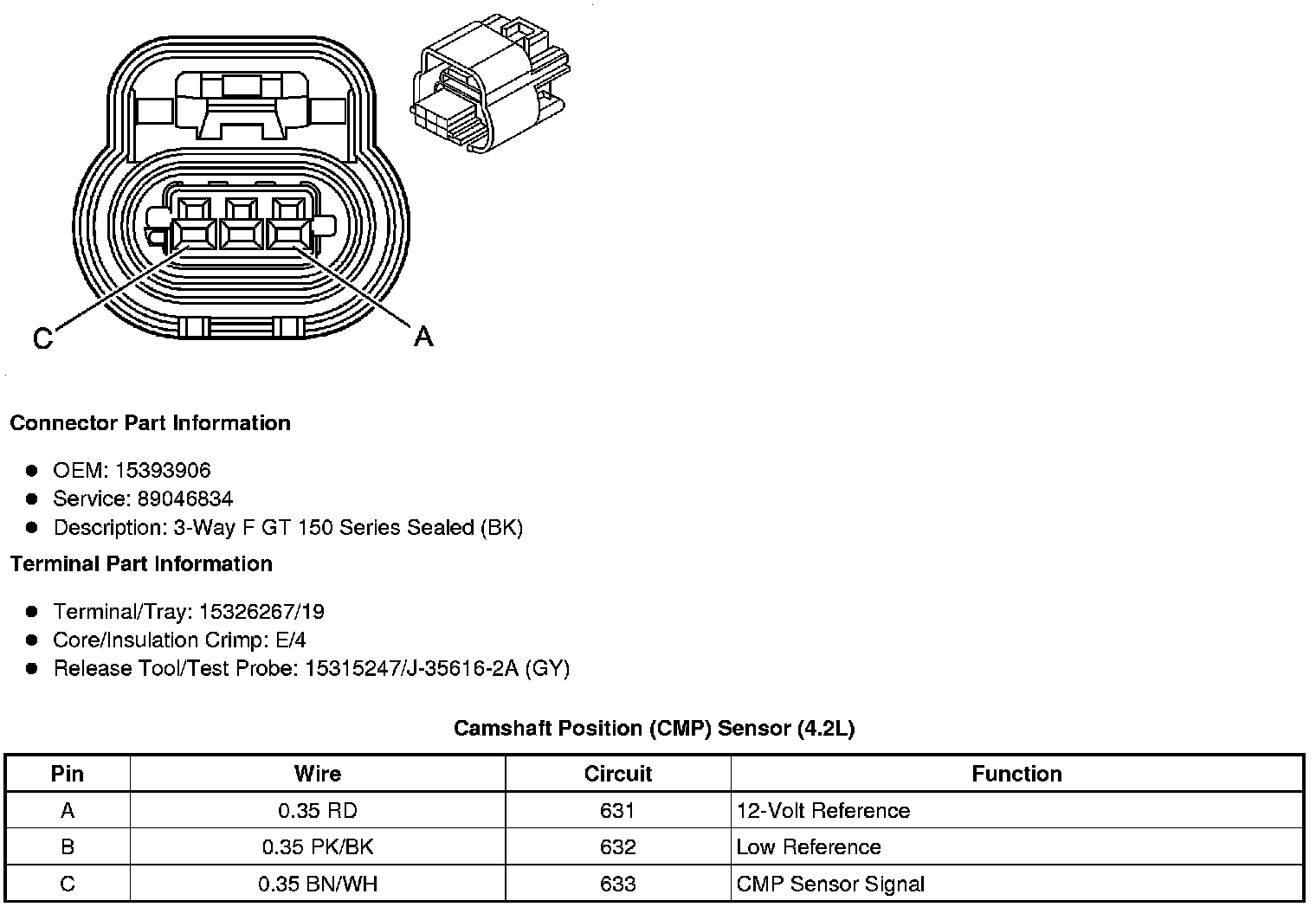

Component Connector End Views

Camshaft Position (CMP) Sensor (4.2L)
