Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Wiper Motor

Wiper Motor




Component Connector End Views

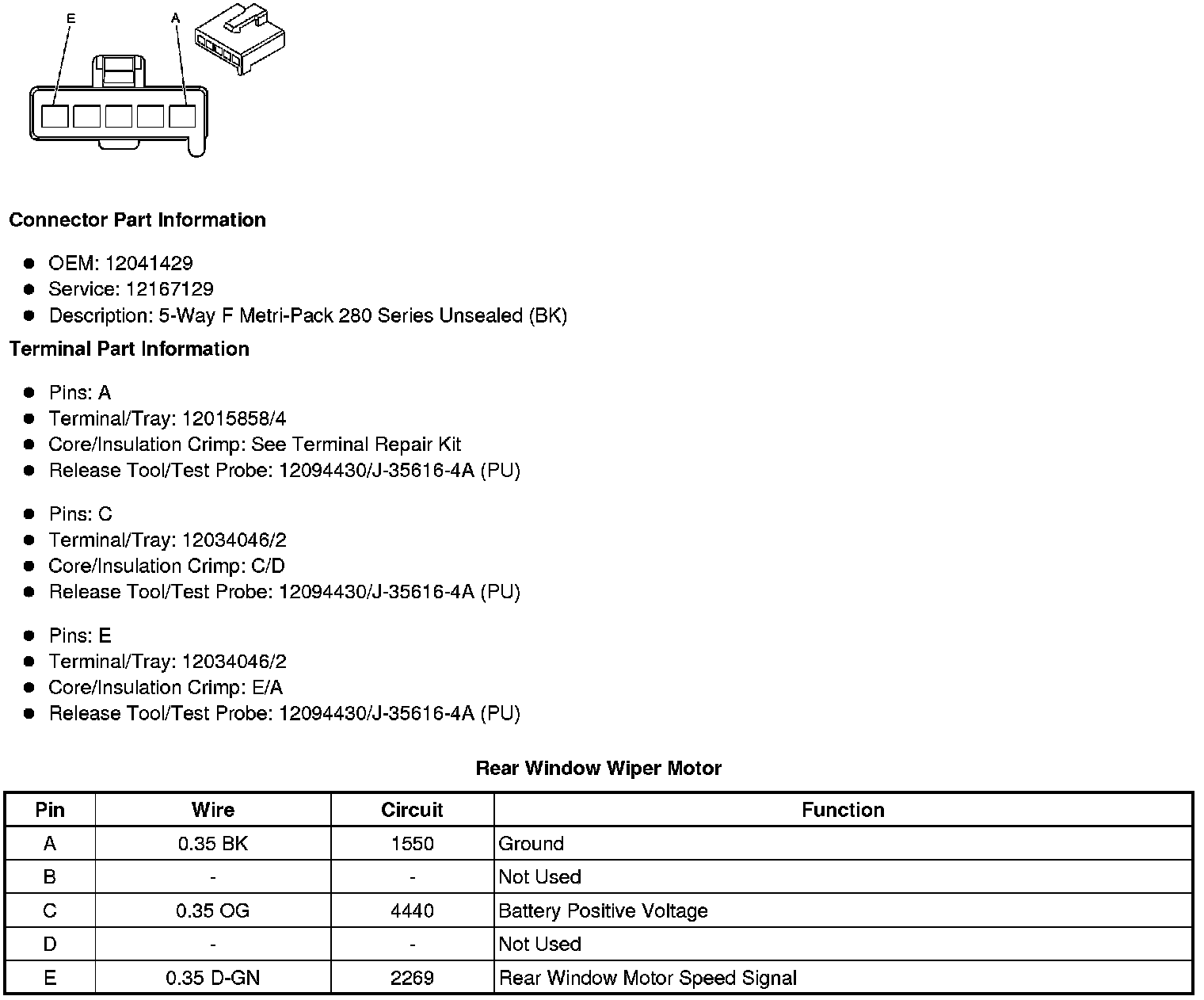

Rear Window Wiper Motor

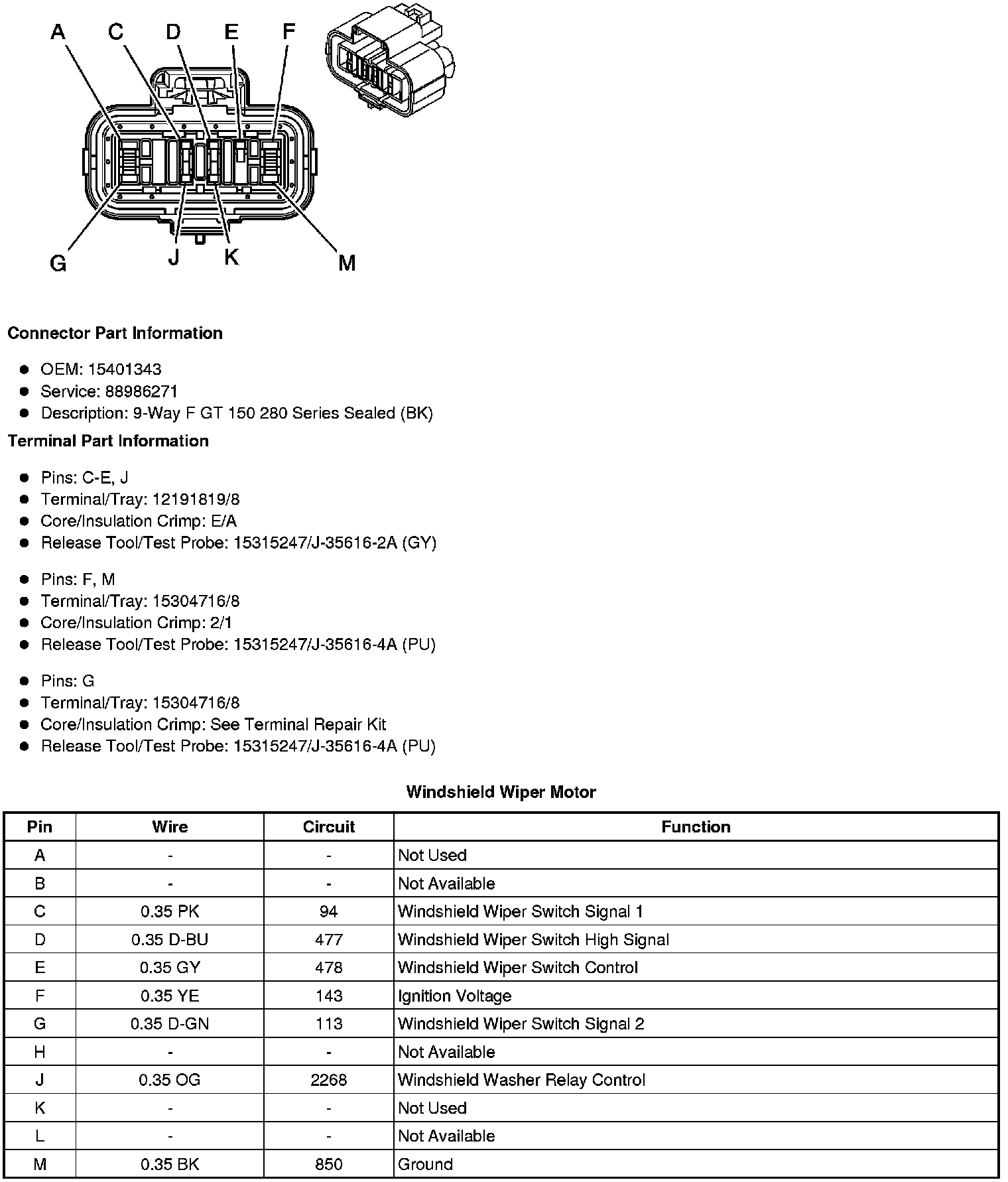

Windshield Wiper Motor
