Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Turn Signal Flasher

Turn Signal Flasher




Component Connector End Views

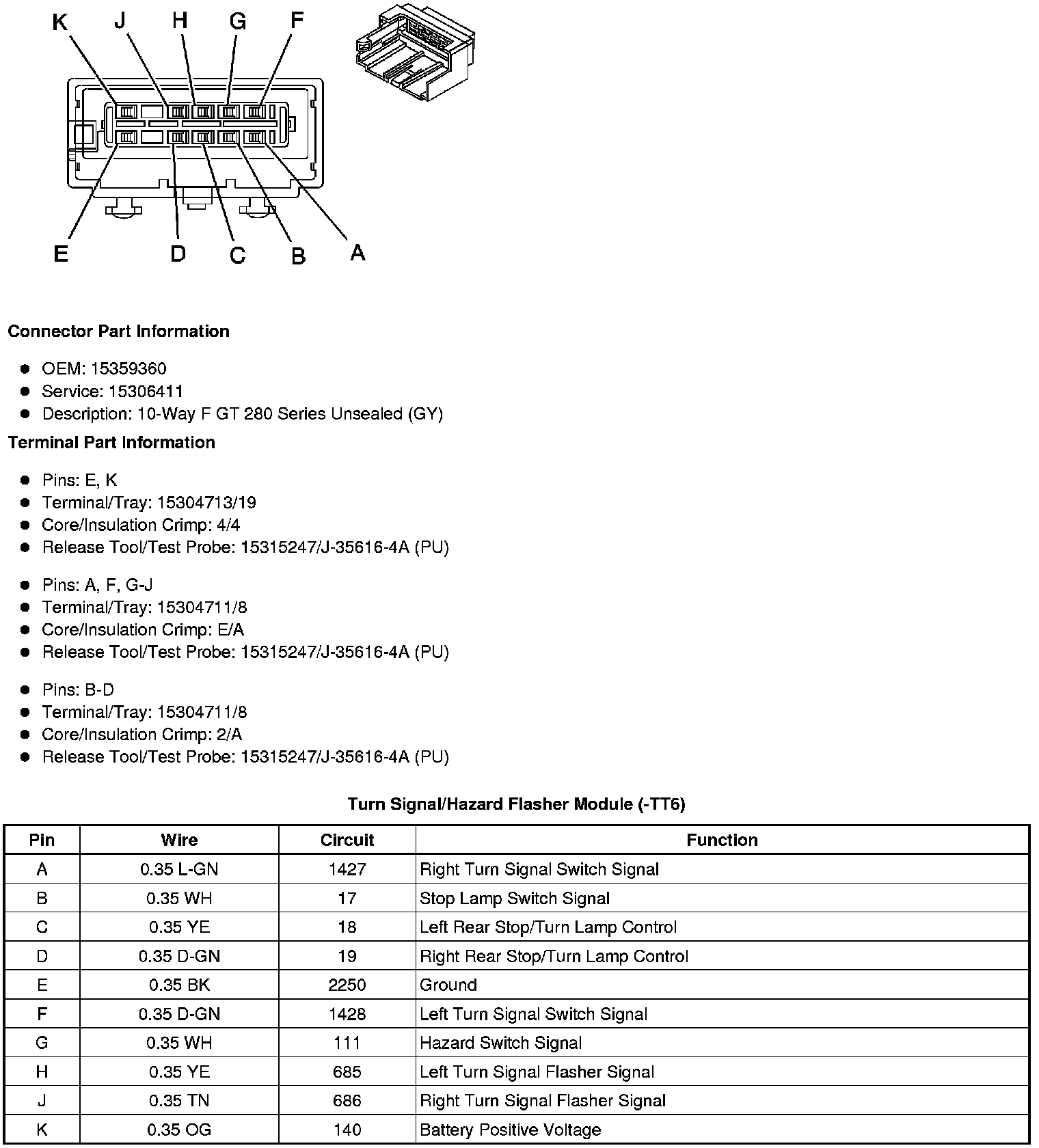

Turn Signal/Hazard Flasher Module (-TT6)

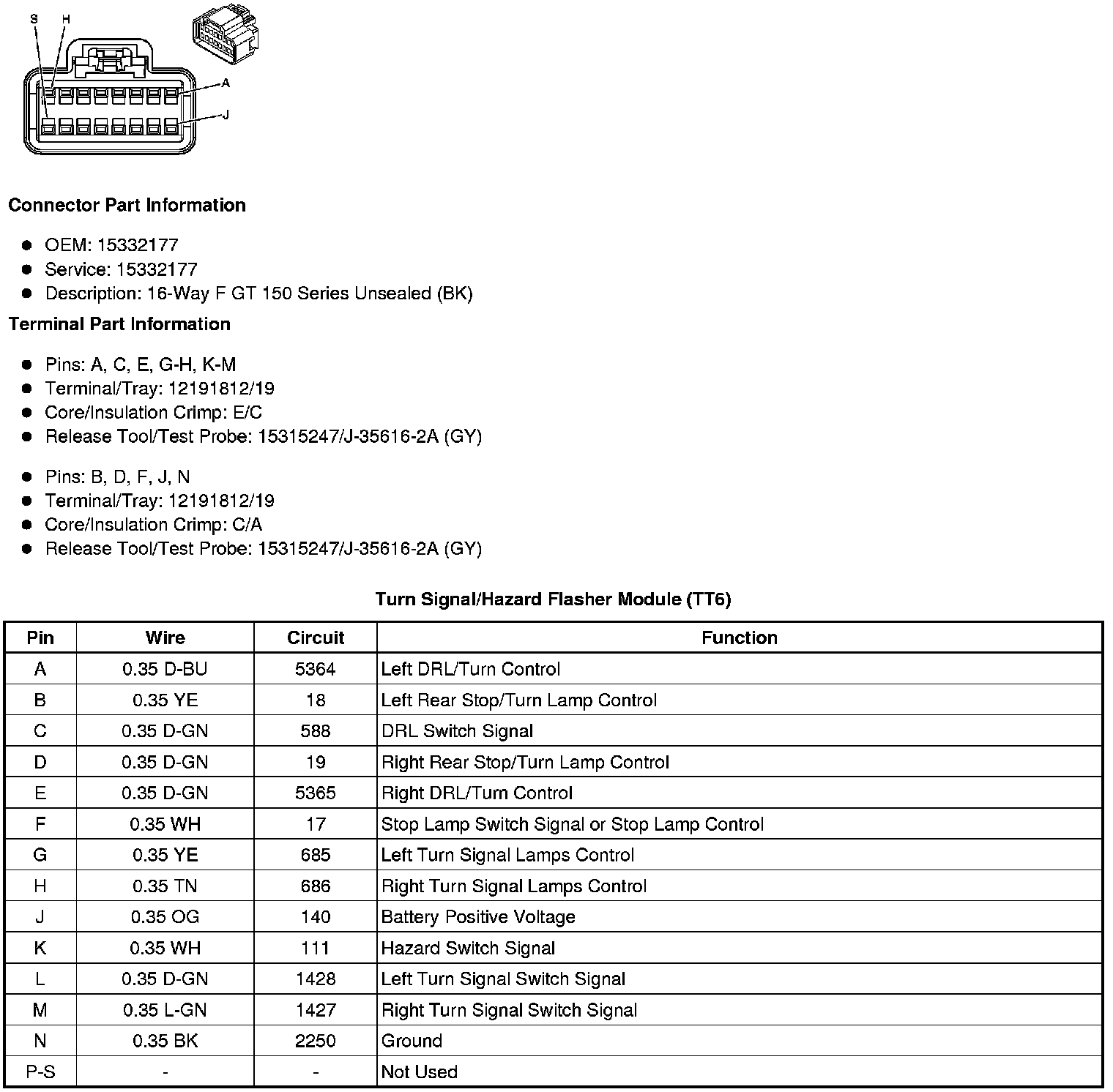

Turn Signal/Hazard Flasher Module (TT6)
