Seat Temperature Element




Component Connector End Views

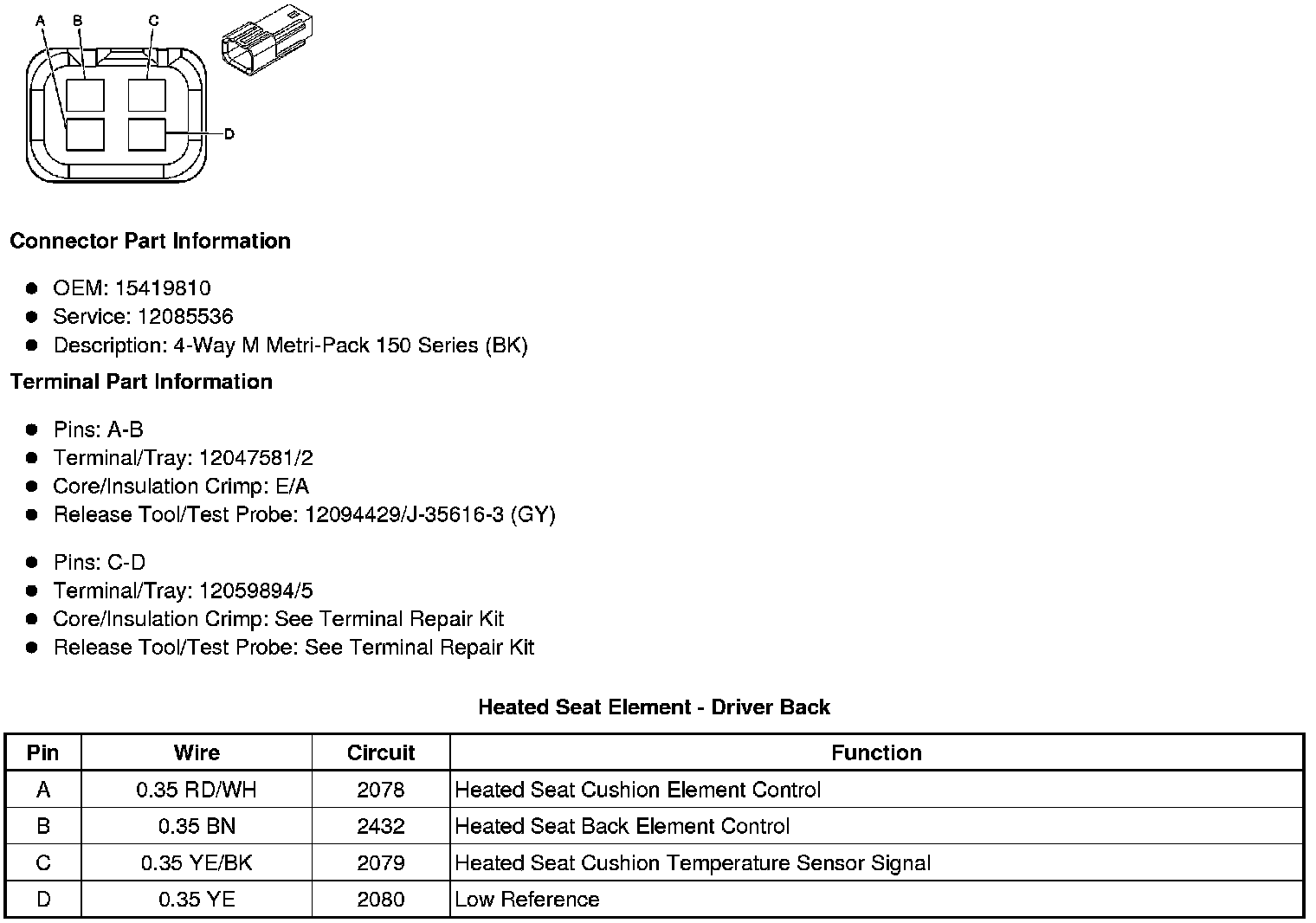

Heated Seat Element - Driver Back

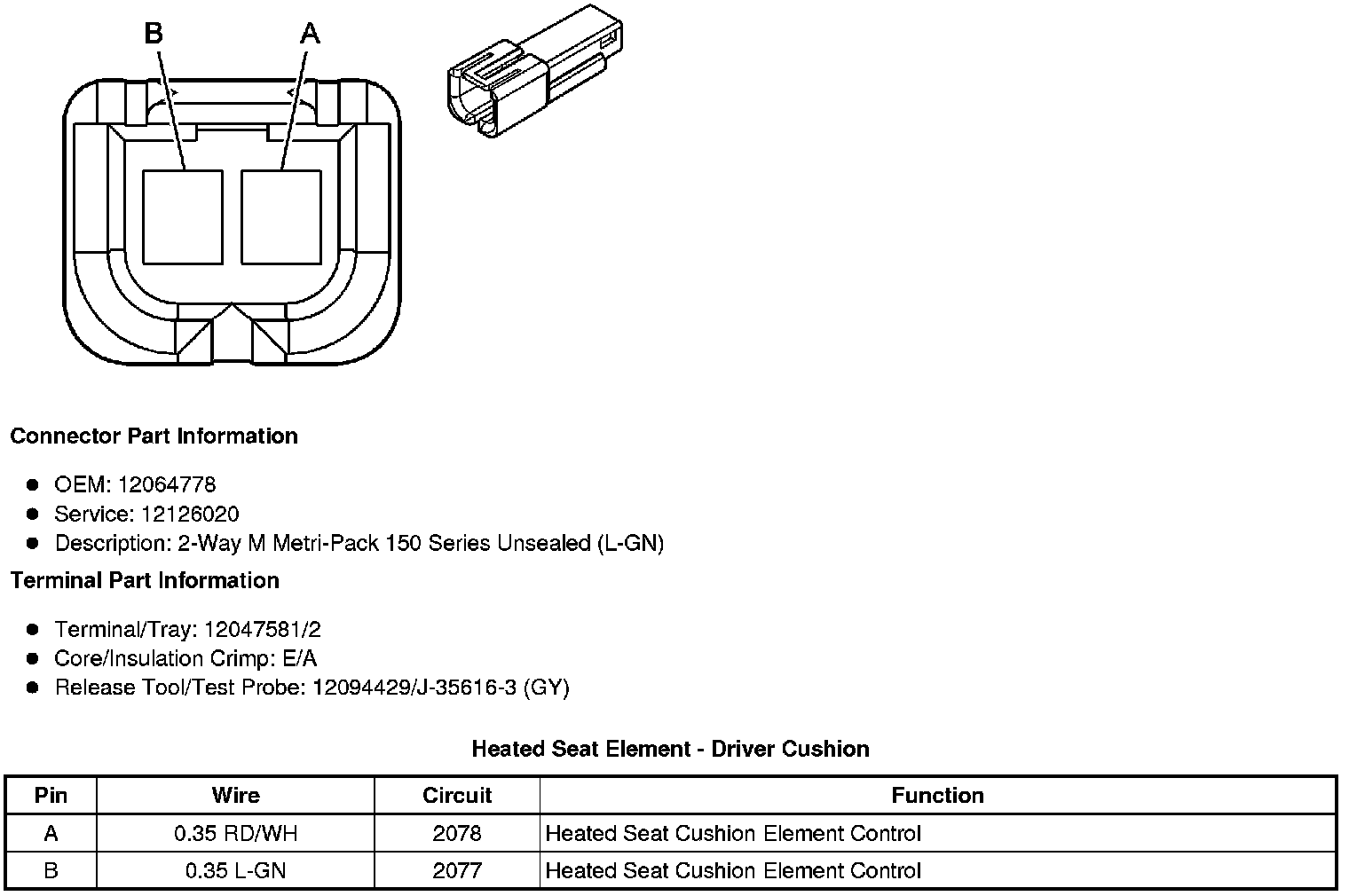

Heated Seat Element - Driver Cushion





Heated Seat Element - Passenger Back

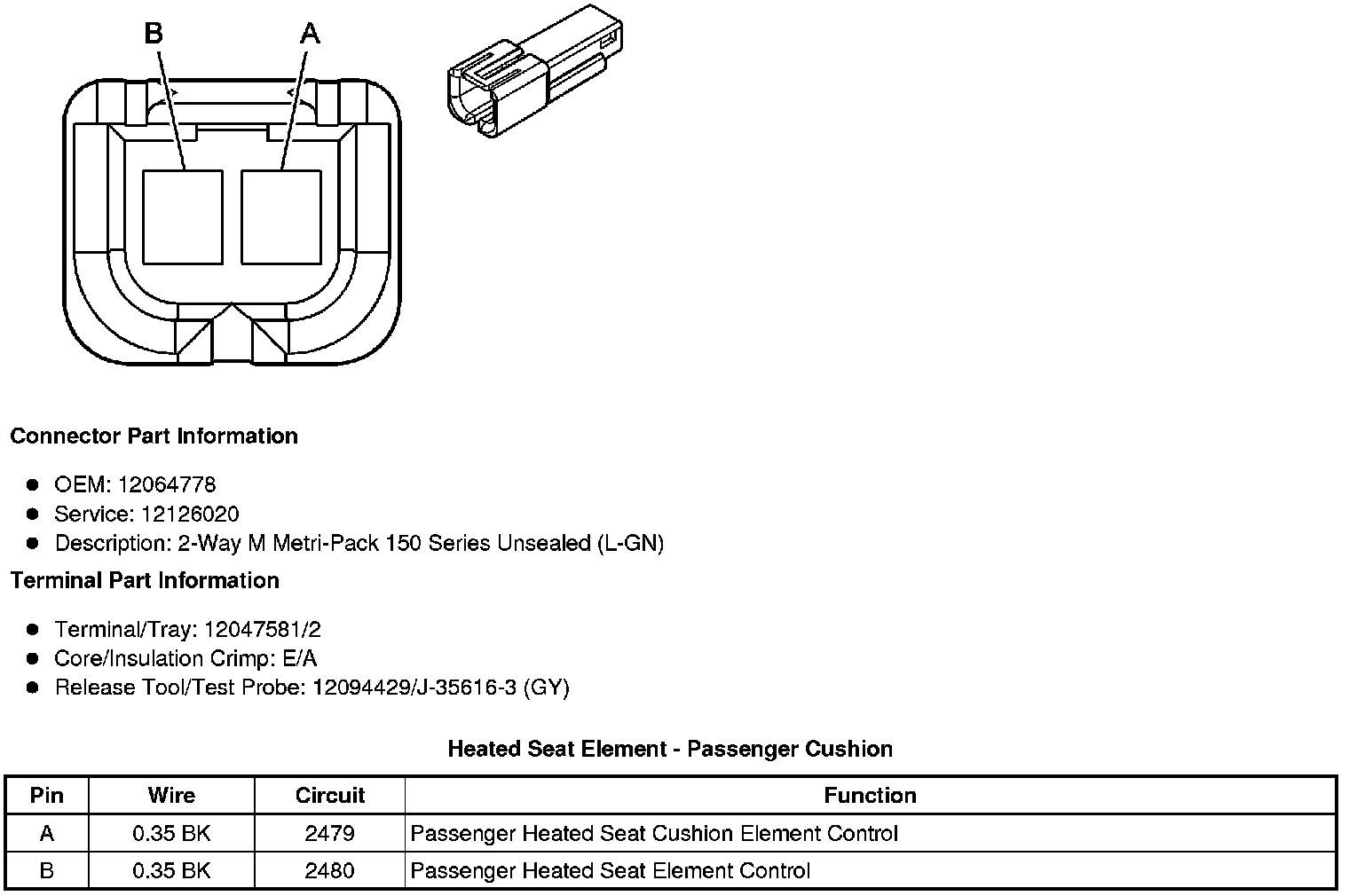

Heated Seat Element - Passenger Cushion
