Home >> Saab >> 2009 >> 9-7X L6-4.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Brake Lamp

Brake Lamp

Component Connector End Views

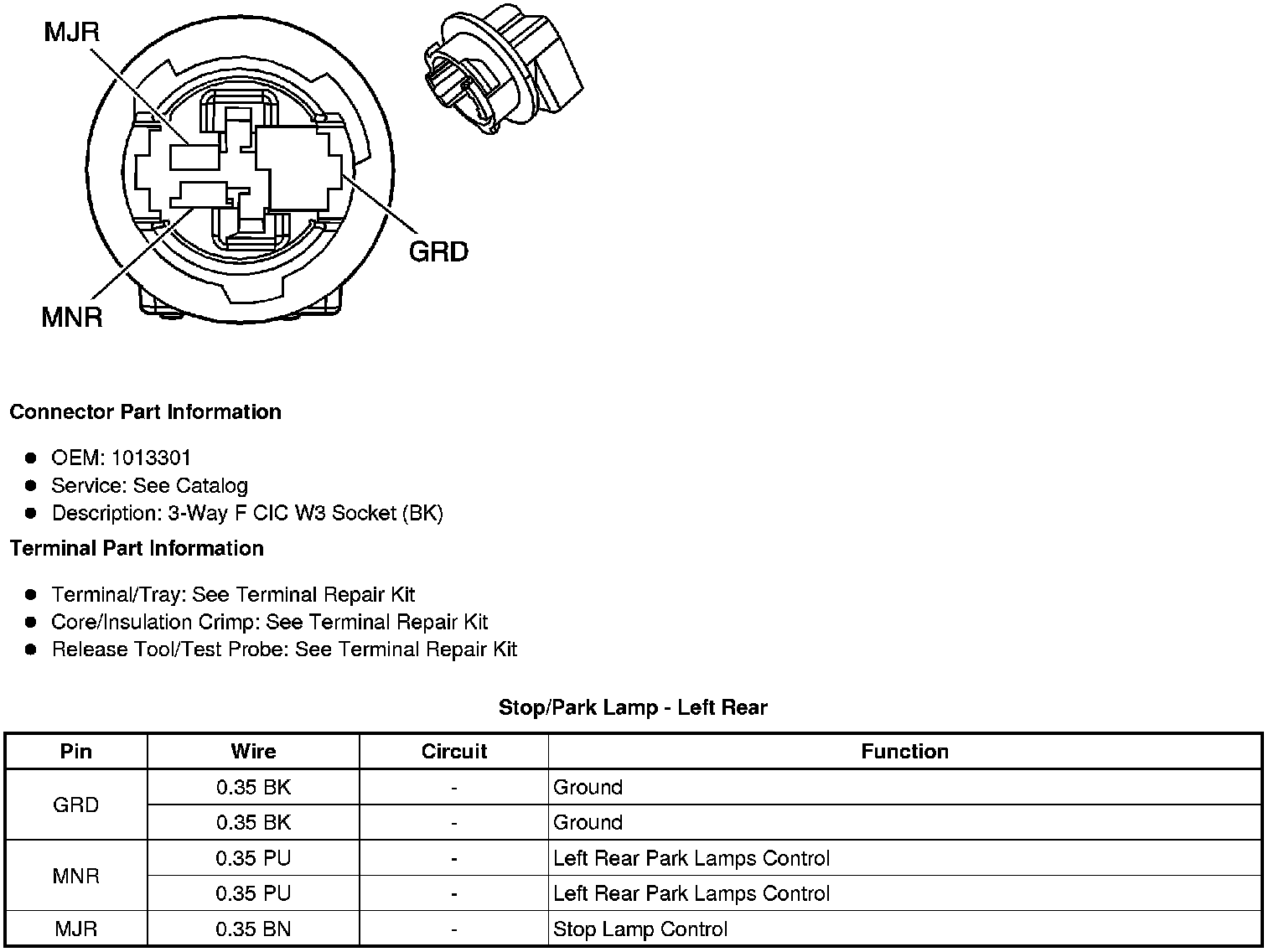

Stop/Park Lamp - Left Rear

Stop/Park Lamp - Right Rear
