Part 2
Component Connector End Views
Rollover Sensor

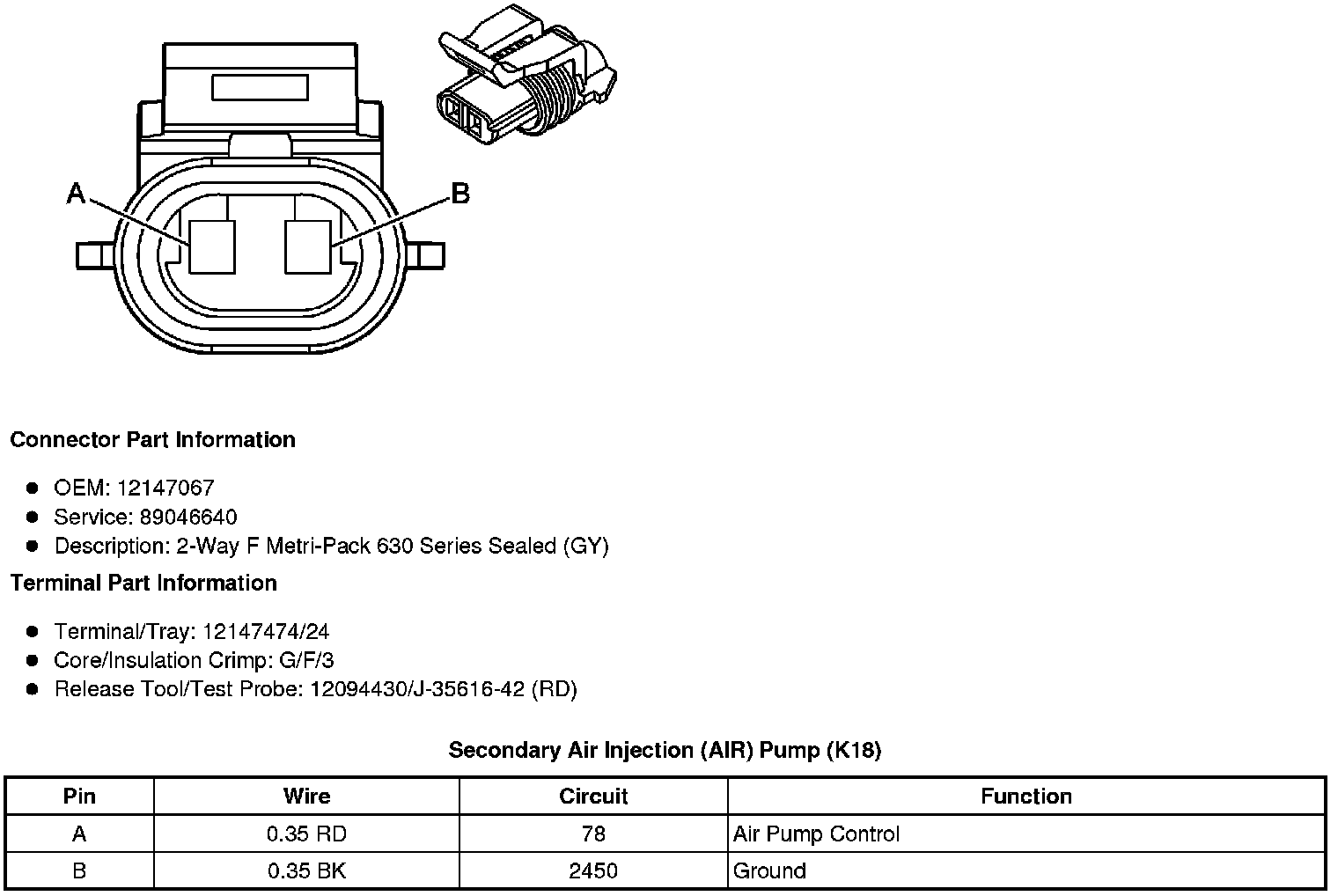

Secondary Air Injection (AIR) Pump (K18)

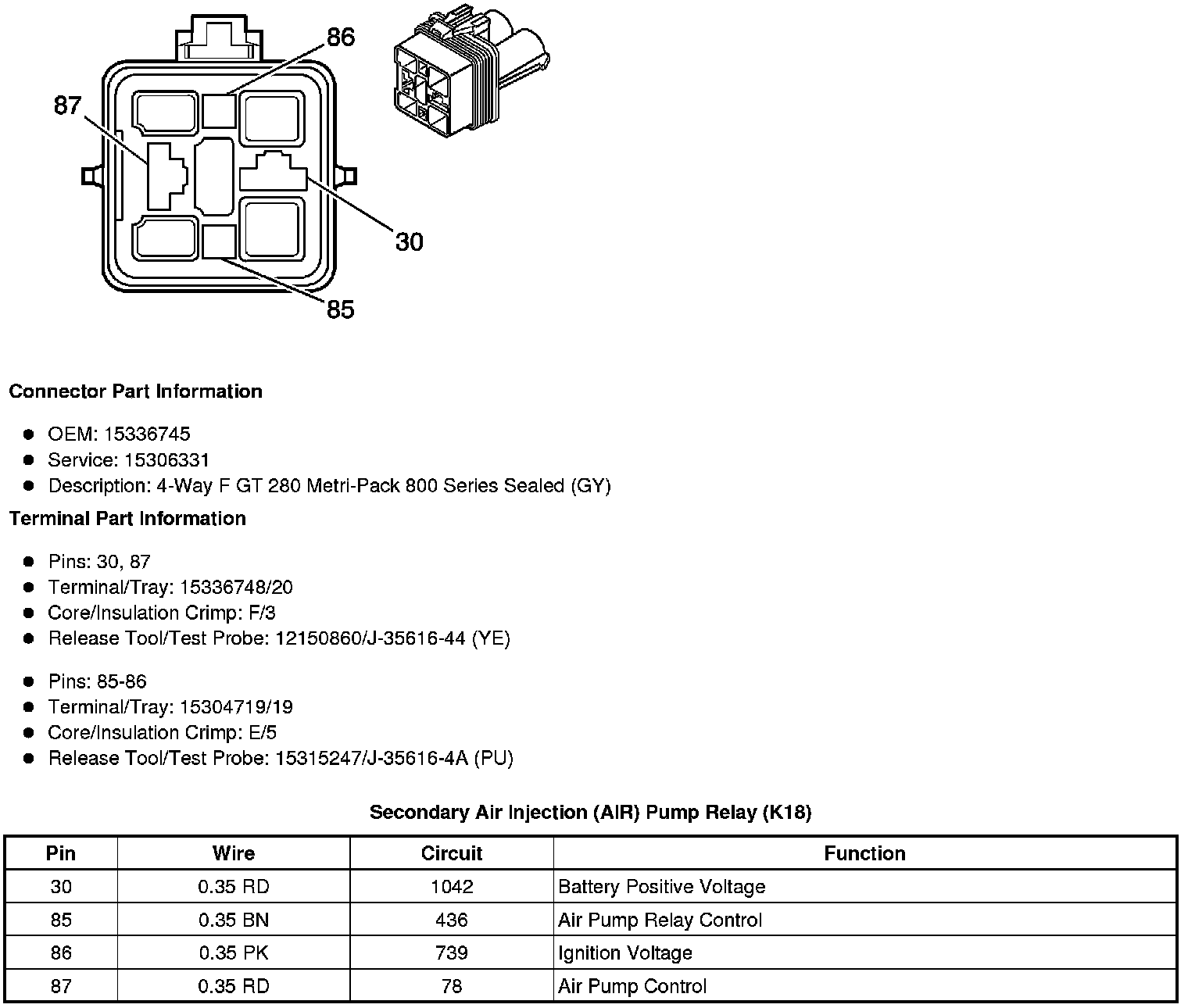

Secondary Air Injection (AIR) Pump Relay (K18)

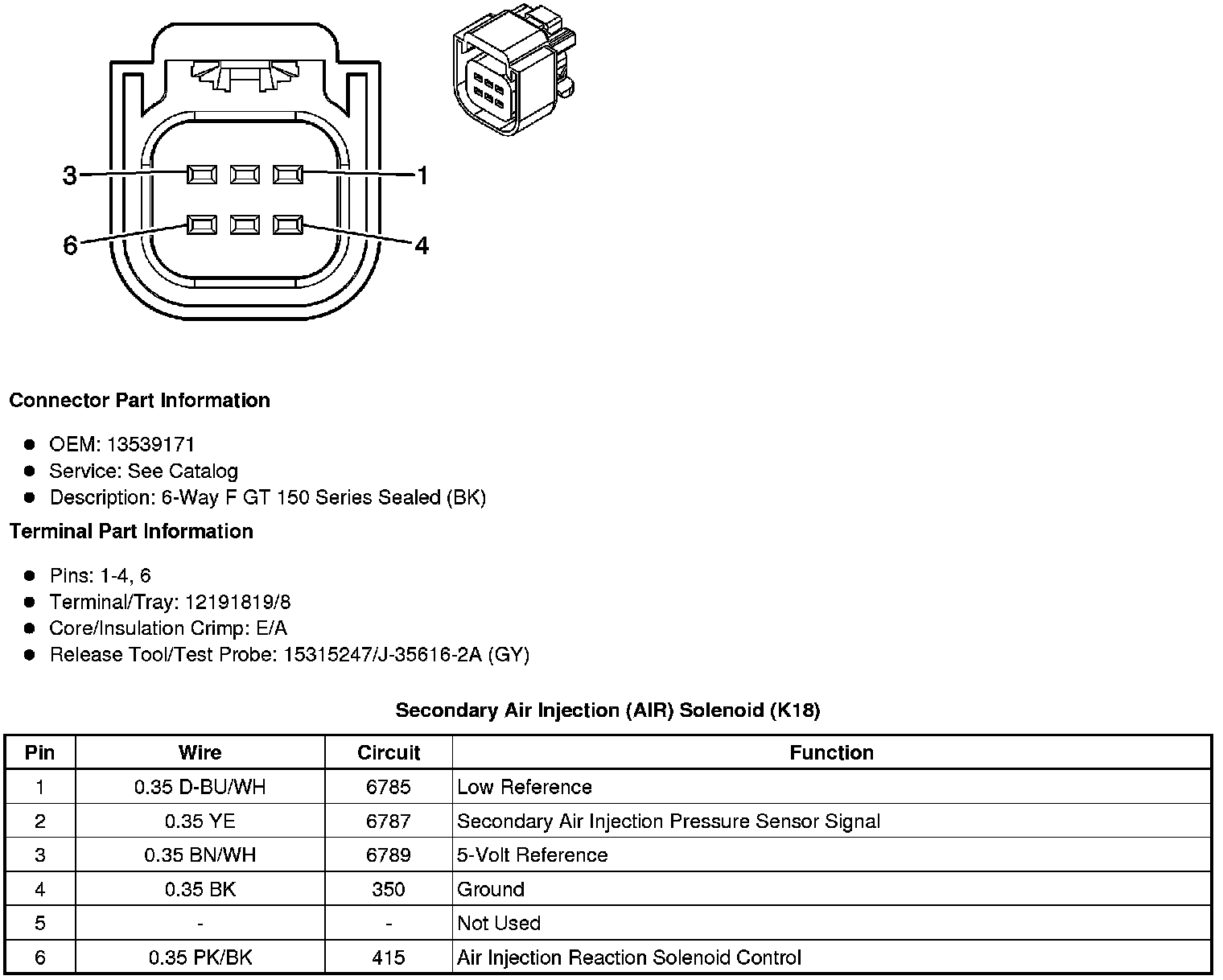

Secondary Air Injection (AIR) Solenoid (K18)

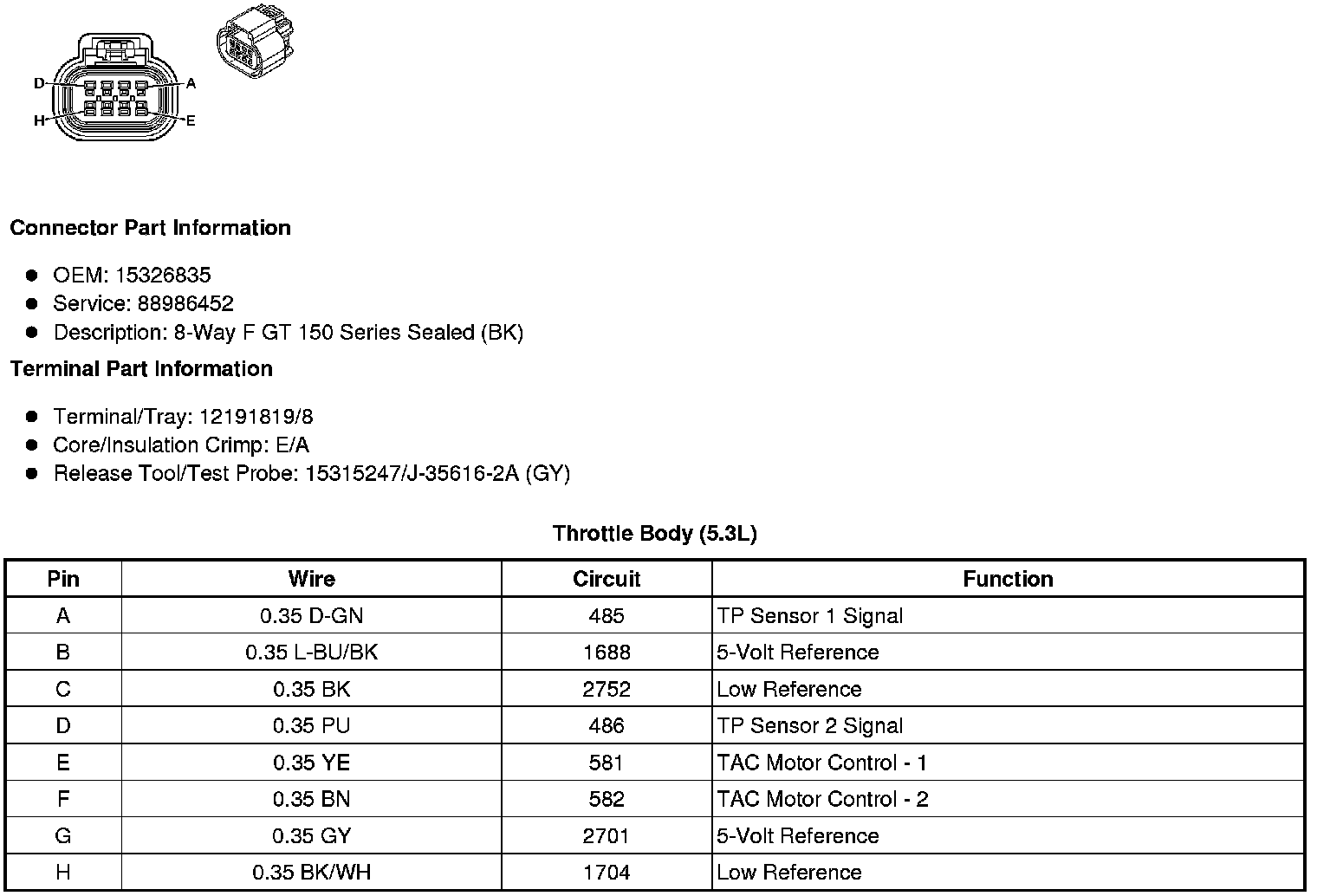

Throttle Body (5.3L)

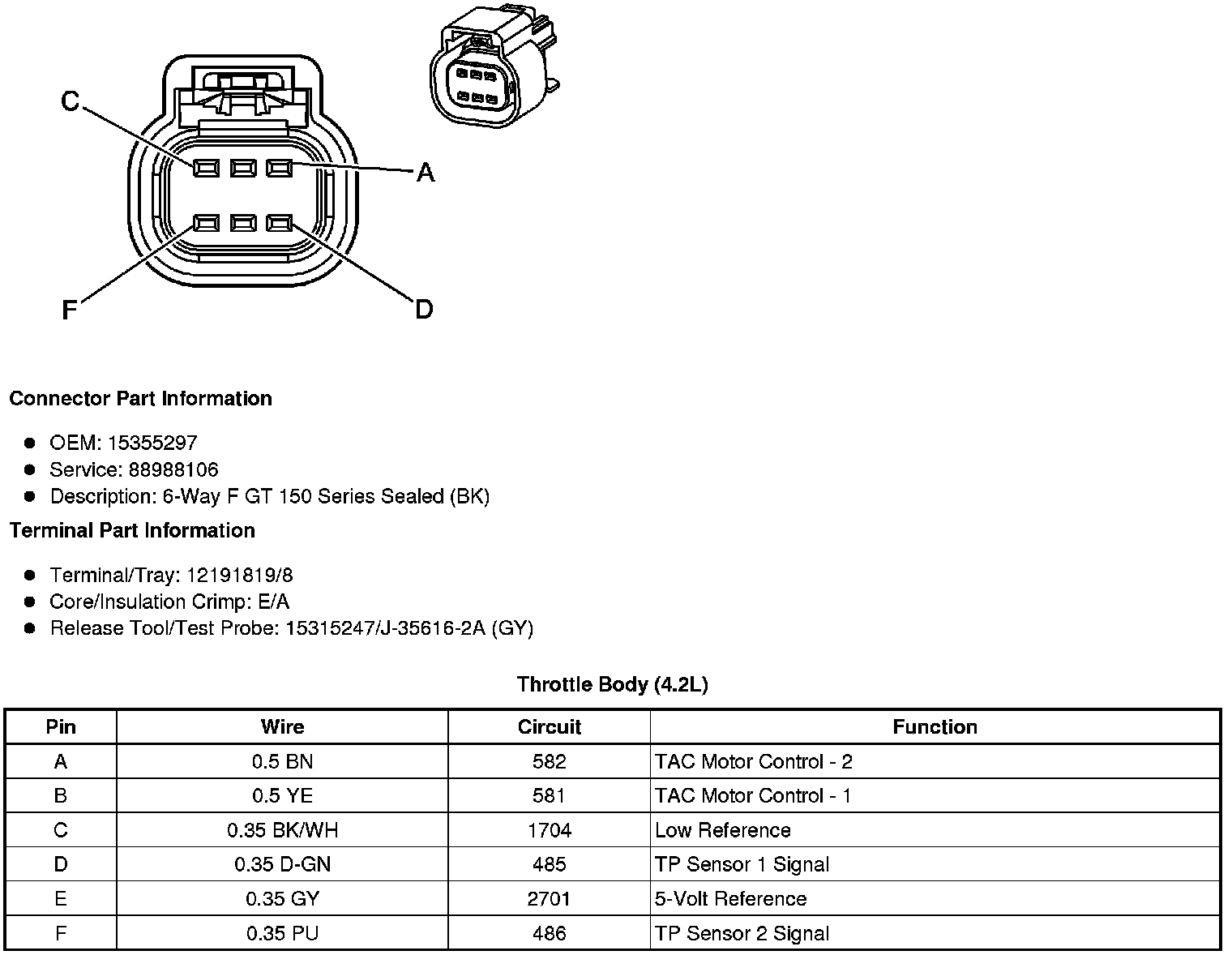

Throttle Body (4.2L)
Component Connector End Views
Rollover Sensor
Secondary Air Injection (AIR) Pump (K18)
Secondary Air Injection (AIR) Pump Relay (K18)
Secondary Air Injection (AIR) Solenoid (K18)
Throttle Body (5.3L)
Throttle Body (4.2L)
