Intermittent Wiper Operation, Rear Window

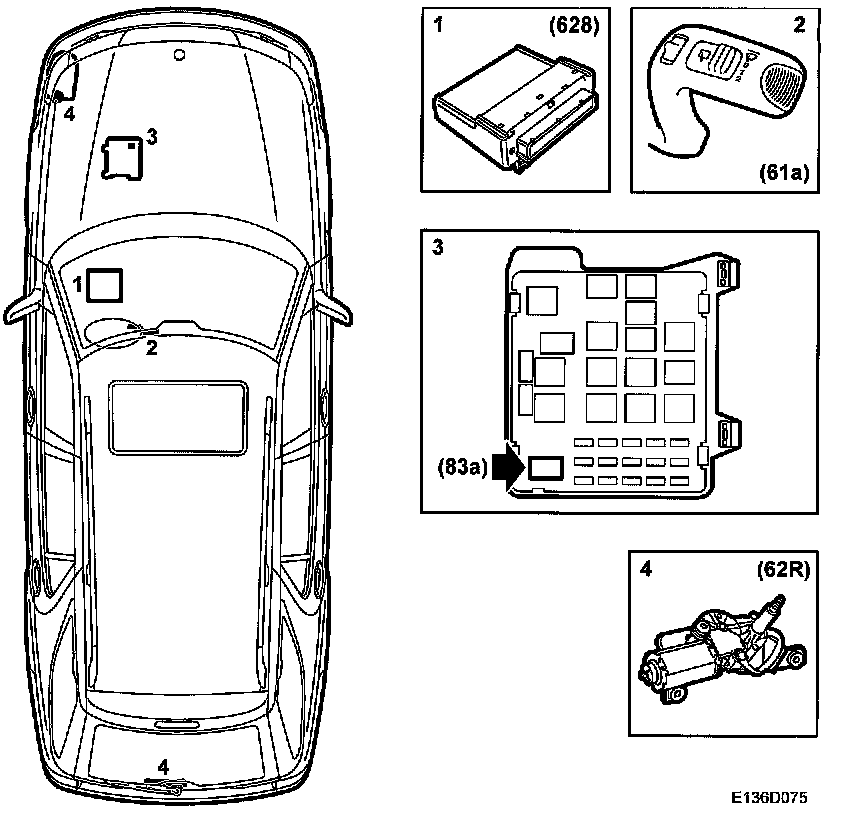

Principal Components, Intermittent Wiper Operation, Rear Window (5D)







1. Control module, DICE (628)
2. Switch, rear window wiper (61a)
3. Relay, intermittent wiper, rear window (83a)
4. Motor, rear window wiper (62R)
