Immobilization

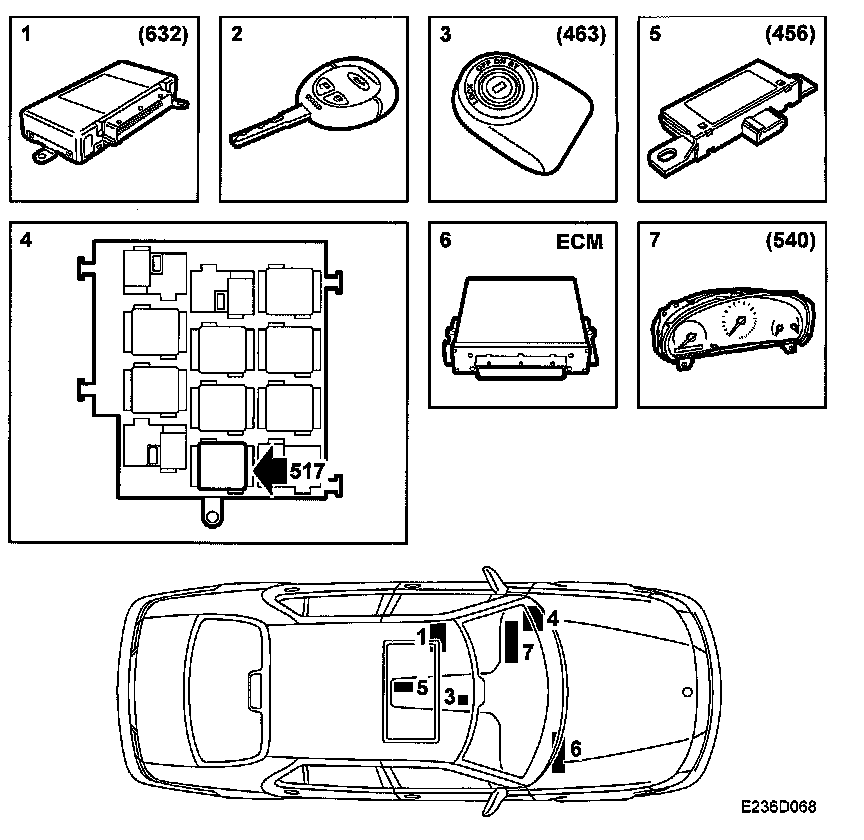

Main Components, Immobilization







1. Control module, TWICE (632)
2. Car key
3. Antenna unit, immobilizer (463)
4. Relay, starter relay (517)
5. Antenna, remote control, central locking system (456)
6. Engine control module (ECM)
7. Main instrument panel (540)
