Home >> Saab >> 2007 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Tire Monitoring System >> Tire Pressure Module >> CV

CV

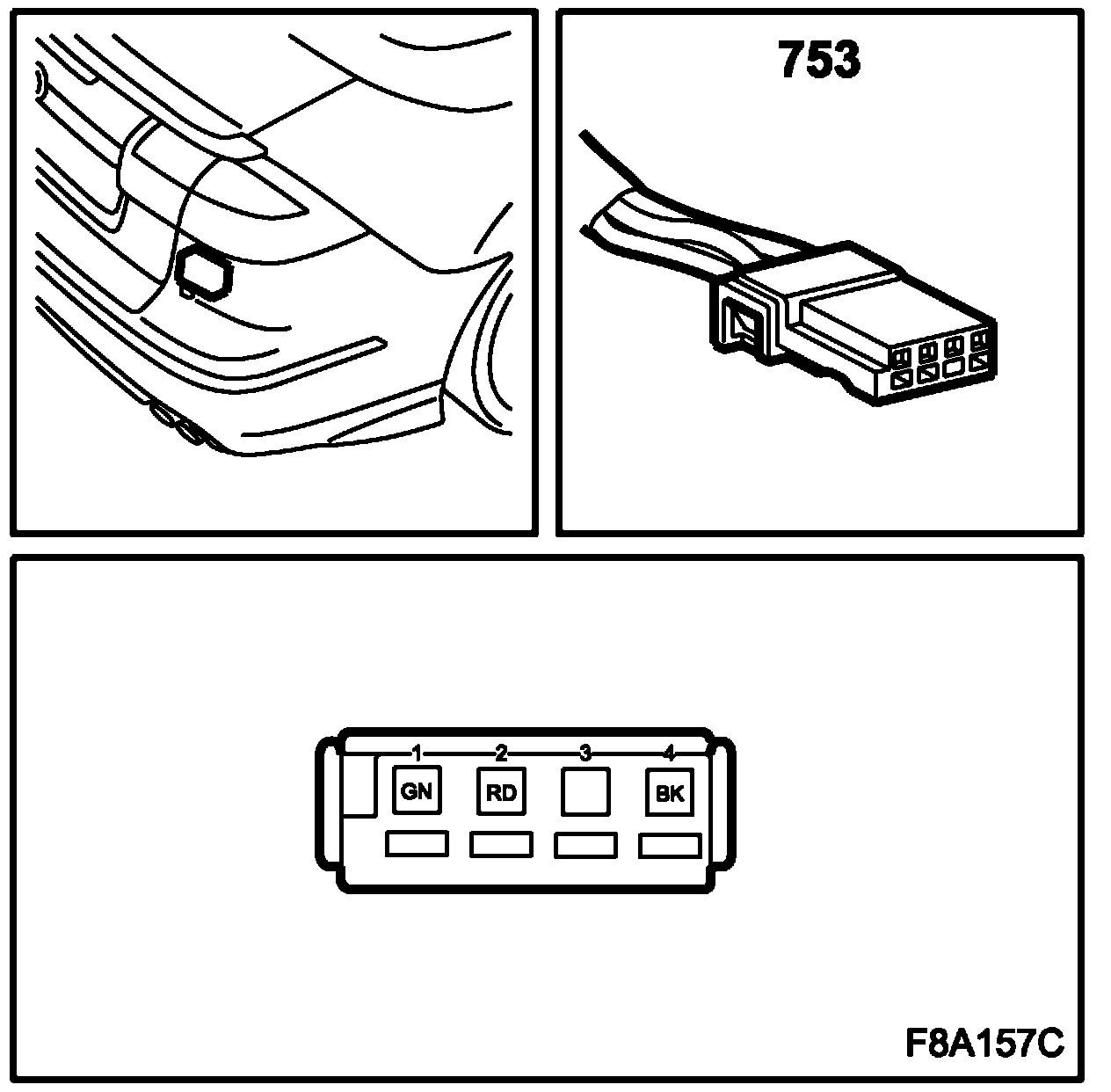

Location: Under the right-hand rear light cluster

Tyre Pressure Monitoring Module (753):
