Steering Column Control Module




Location: on the steering column below the steering wheel

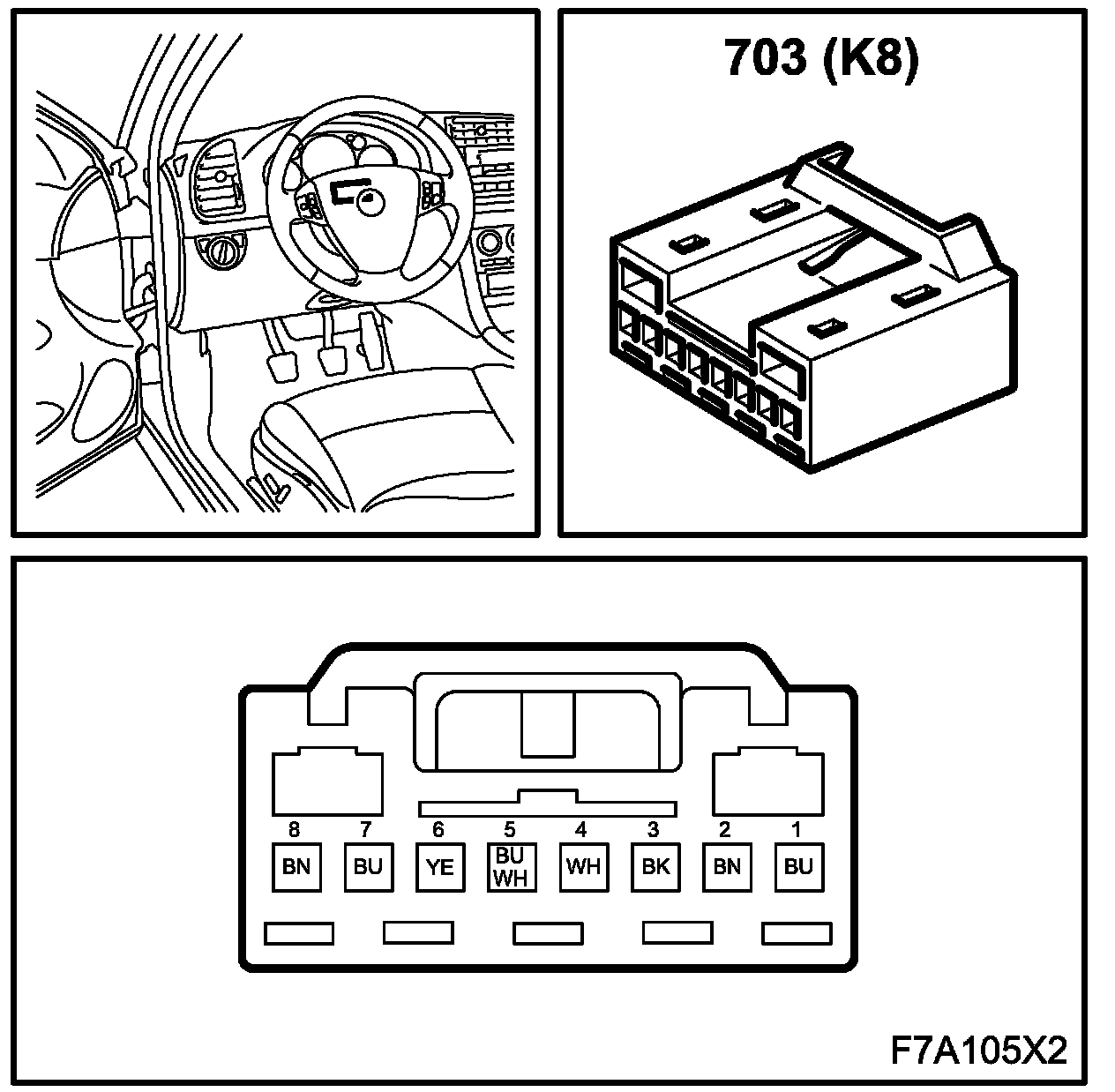

K8

Unit, Steering Column Assembly, (CIM) (703):

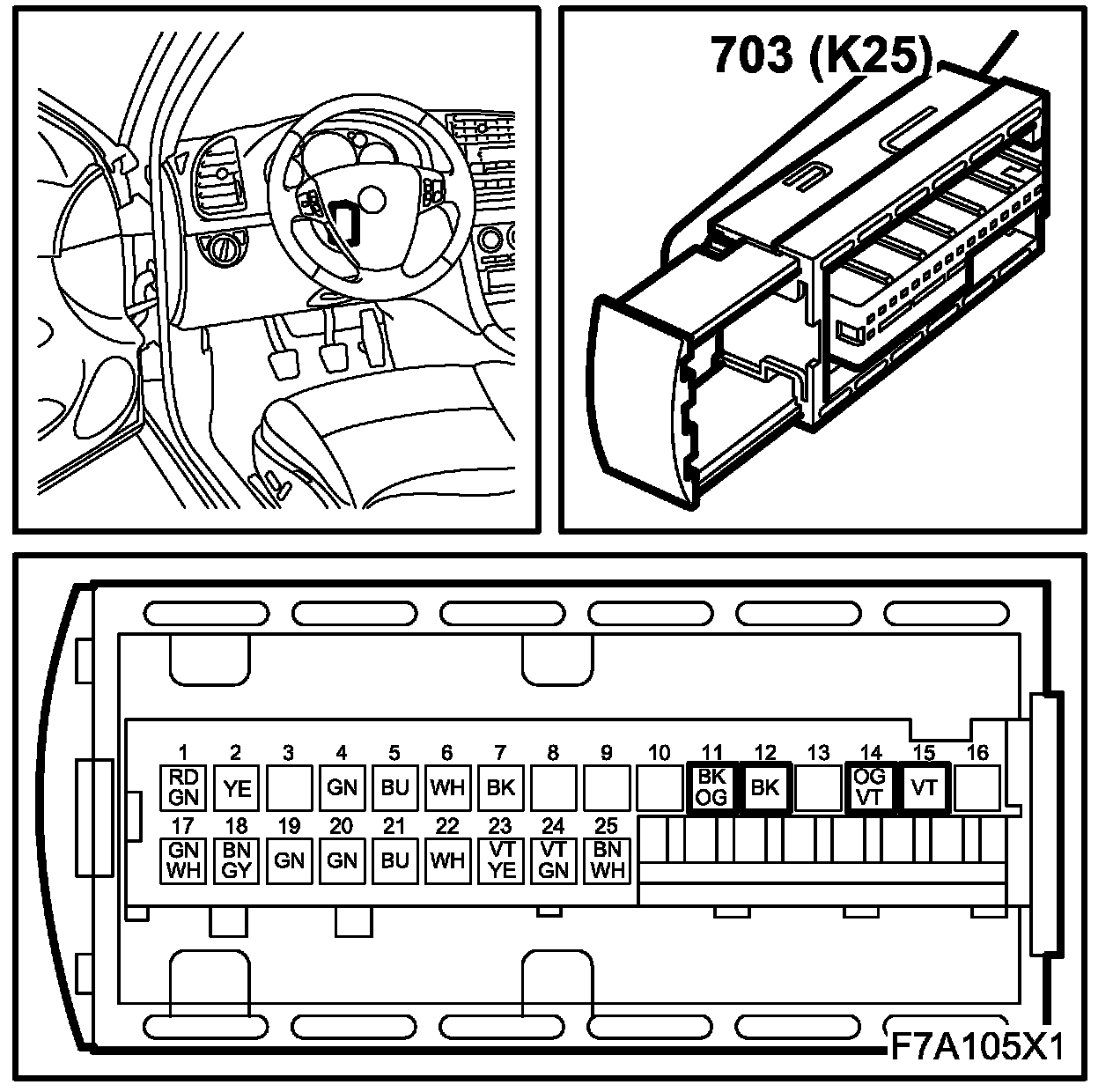

K25

Unit, Steering Column Assembly, (CIM) (703):
