Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

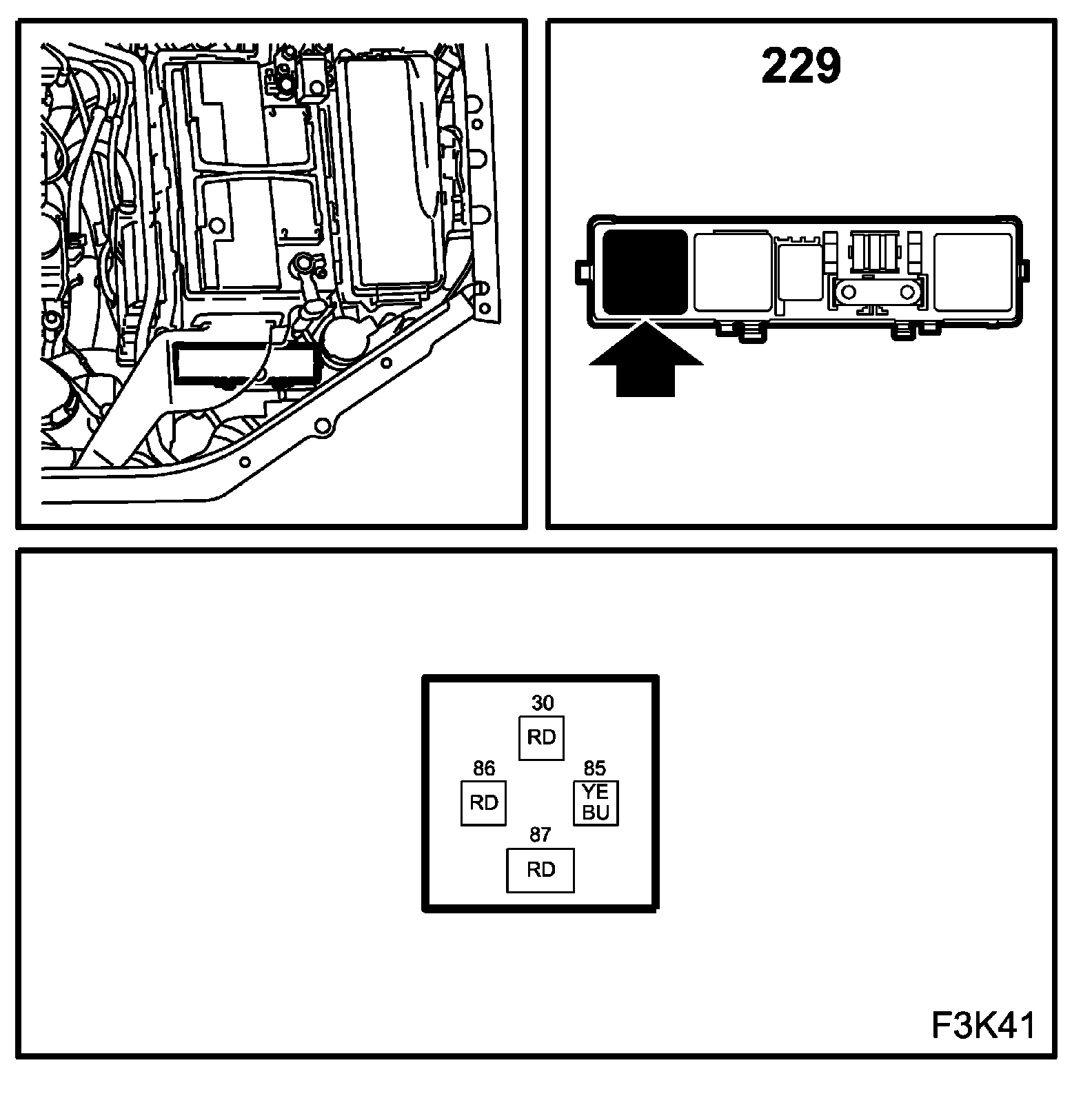

Location:
in the main fuse box in front of battery
Main Relay, Engine Control System (229):
