Saab
>>
2007
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Convertible Top Control Module
>>
SPA Control Module (630)
>>
4D
4D
Location:
In luggage compartment behind backrest member on left-hand side.

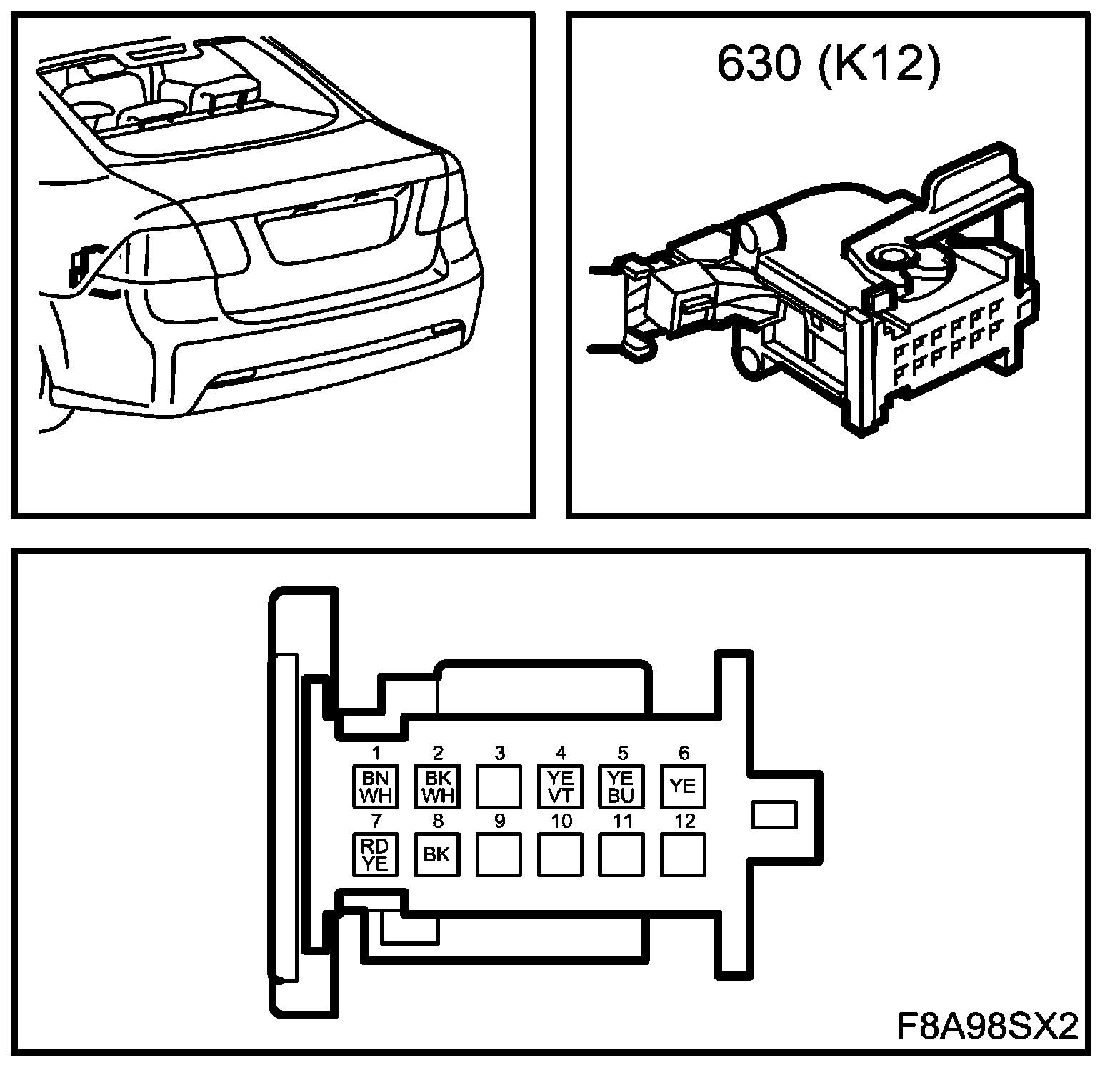

K12
SPA Control Module (630) 4D:

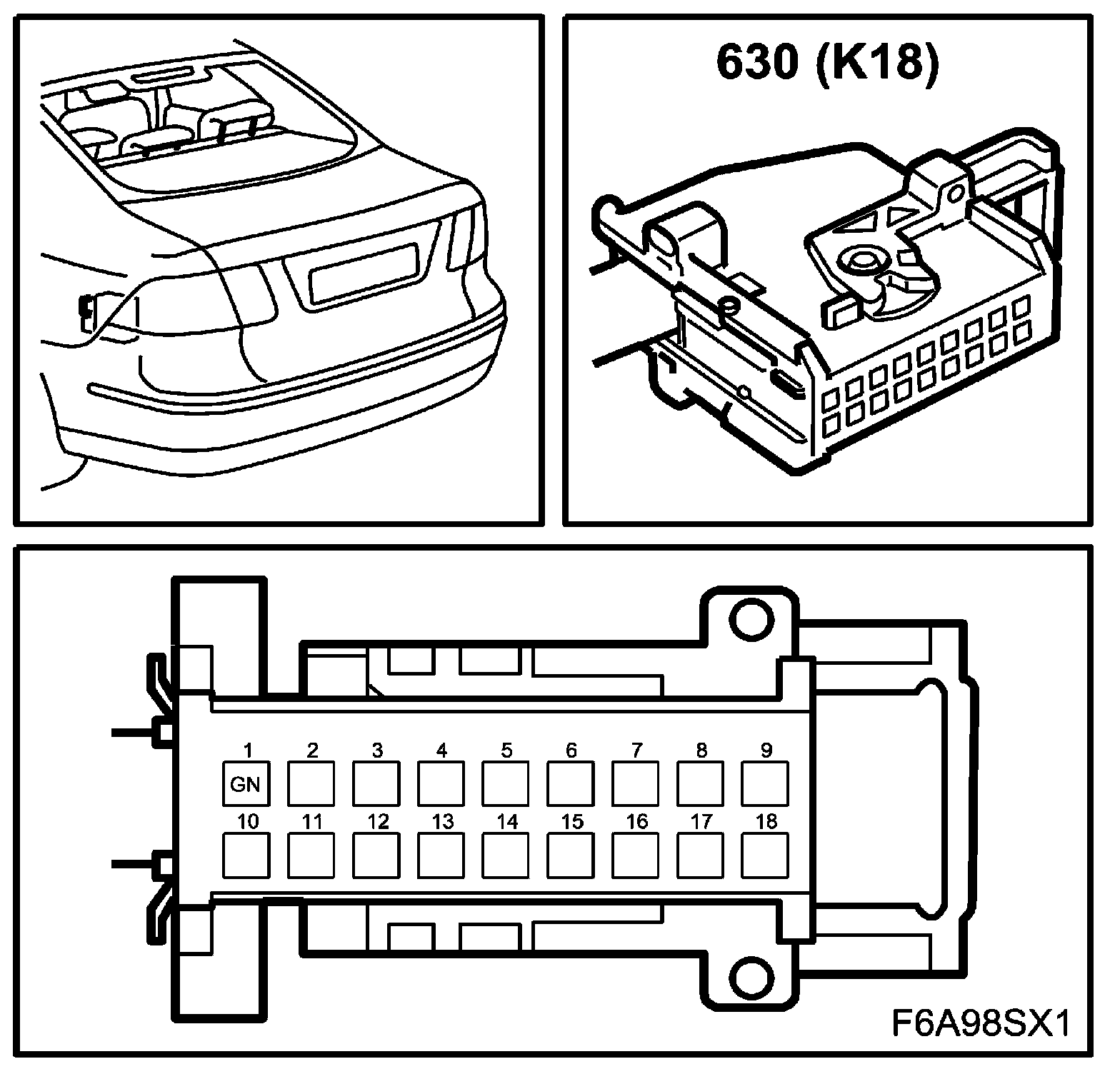

K18
SPA Control Module (630) 4D:
